Description:
The Voyager EVO X is INOVATIV’s most compact and travel ready equipment cart. Manufactured using the very best lightweight premium materials, we are able to keep the overall weight of the Voyager EVO X to a minimum without sacrificing durability or stability. With the portability and slim profile of the Voyager EVO X, you can easily collapse and transport the cart in the back of a compact car, small SUV or simply just save space.

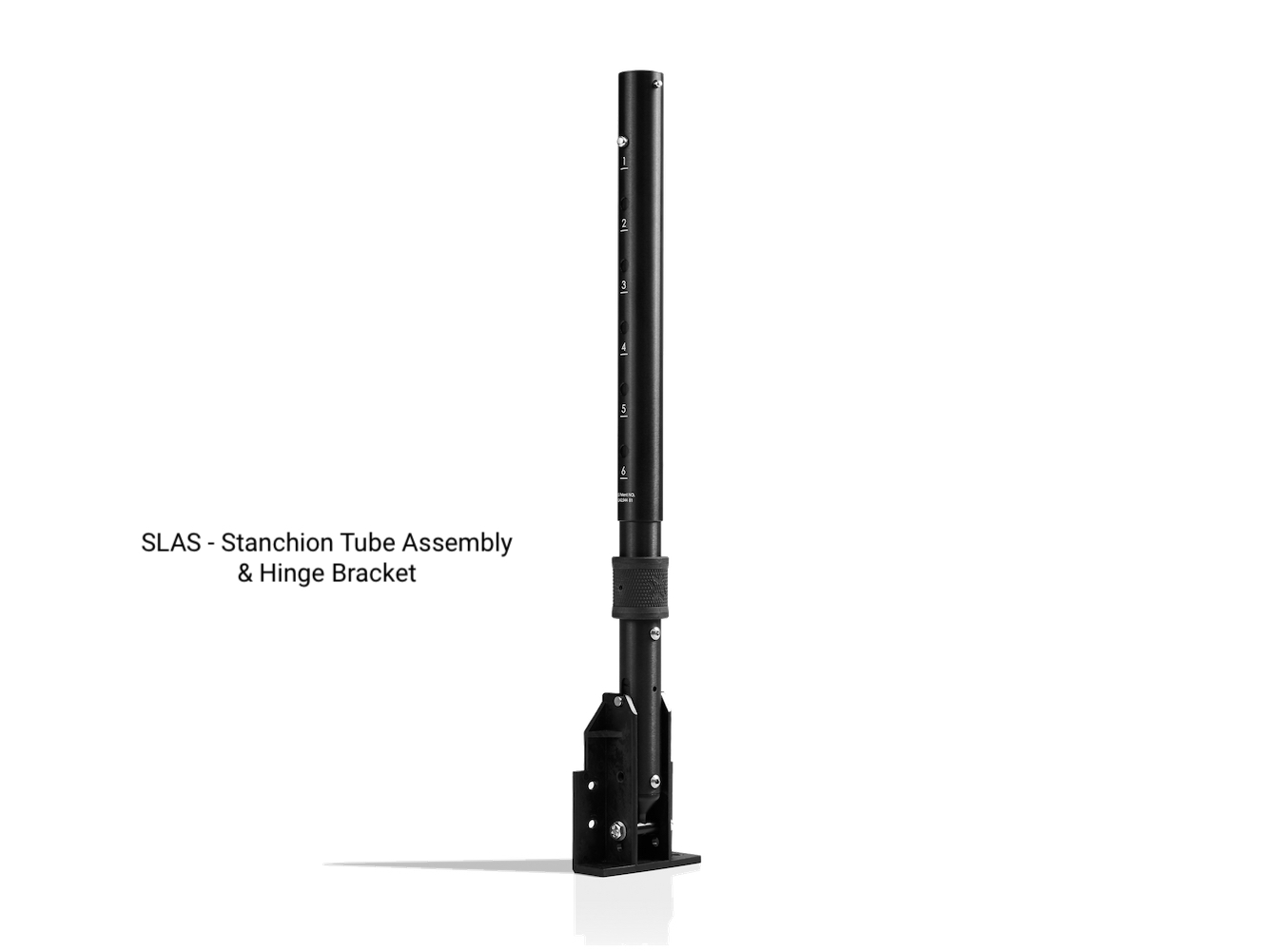

The Voyager EVO X utilities INOVATIV’s patented SLAS (Self-Locking Adjustable Shelving) system. The SLAS system is the backbone of all INOVATIV carts and enables the user to assemble and collapse the cart effortlessly with its tool-free design. This system also incorporates INOVATIV’s locking top shelf that is height adjustable up to 10″ in 2″ incremental stages.

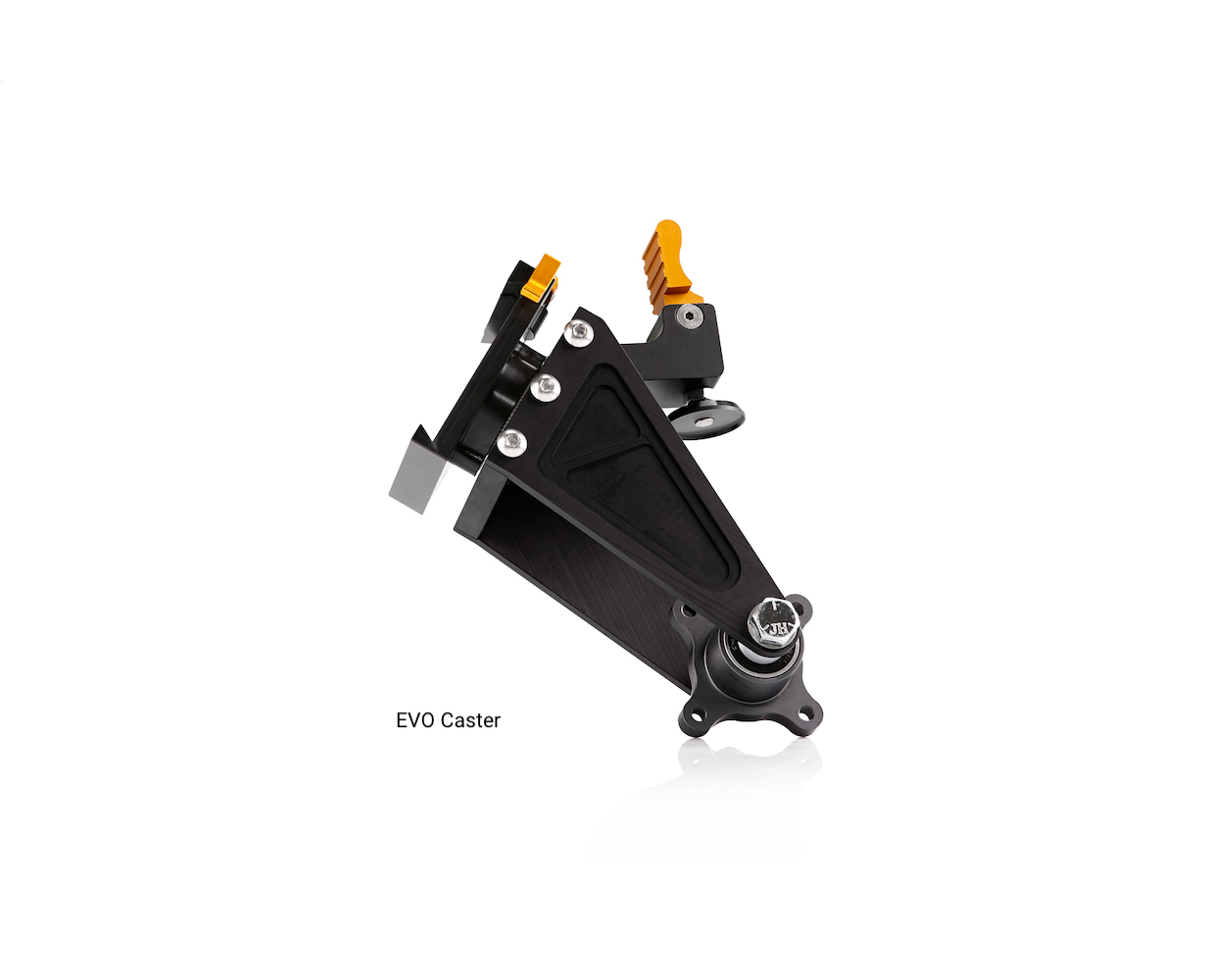

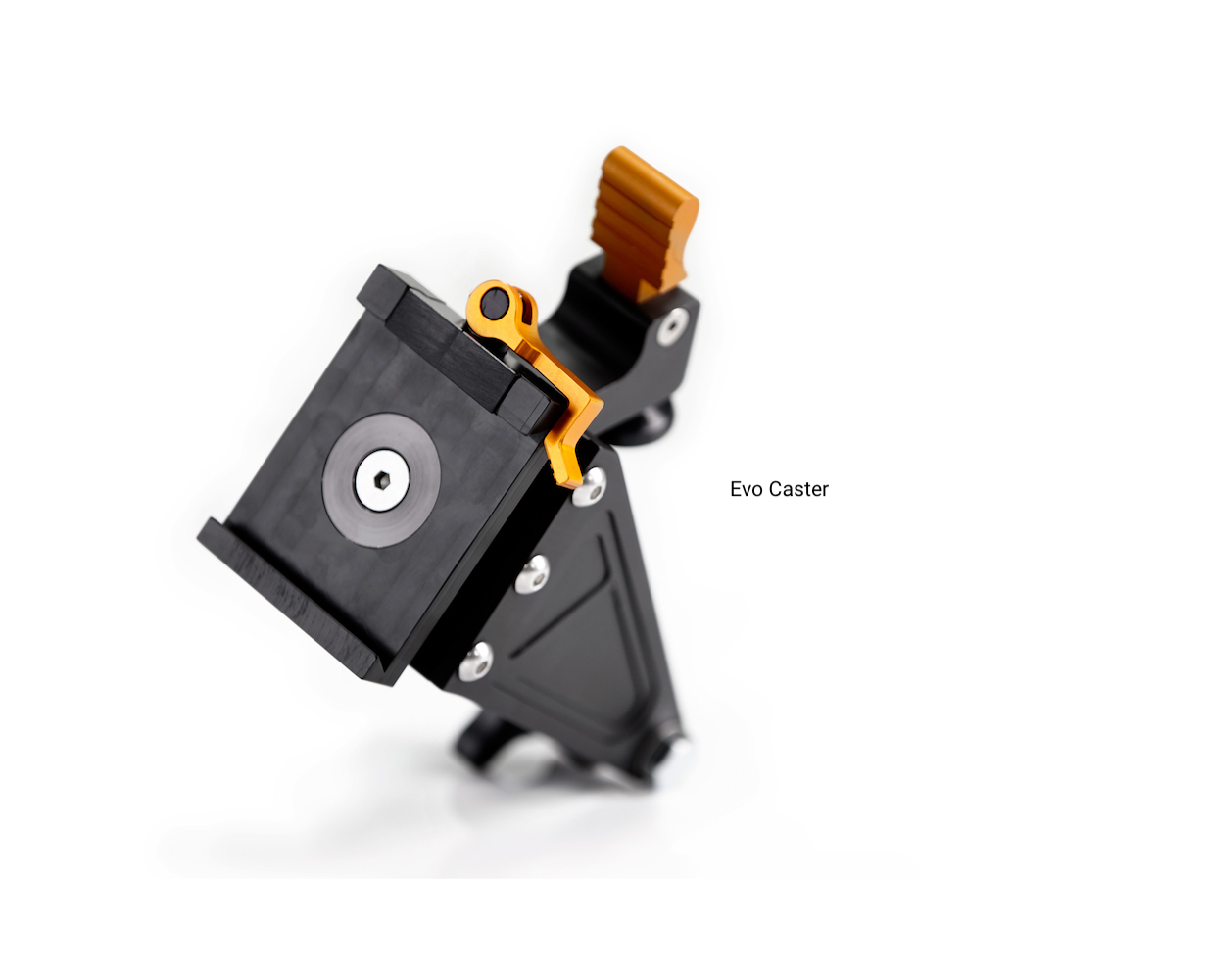

To ensure the Voyager EVO X rolls with ease, its equipped with INOVATIV’s premium quick-release dovetail wheel system. Each wheel is easily attached or removed and is comprised of an all aluminum lightweight structure, high strength 100% sealed bearings, and 6″, 8″, or 10″ pneumatic tires. The Voyager EVO X is equipped with 2 swivel or “smart” casters mounted with INOVATIV manual foot brakes and 2 fixed casters that can transform to a swivel configuration with the removal of a bolt.
- Hand crafted in the USA
- Parts machined from 6061 T6 aluminum
- INOVATIV’s patented SLAS system allows for 10″ of adjustable work height at 2″ increments
- INOVATIV’s patented Dovetail Wheel System
- Folds to super slim 8.25″ profile
- No tools required for assembly
- 5 year limited warranty
Product Code: VE 0030 | VE 0036 | VE 0042
Payload Capacity: Voyager 30 EVO X: 400lb | Voyager 36 EVO X: 600lb | Voyager 42 EVO X: 600lb
Dimensions:

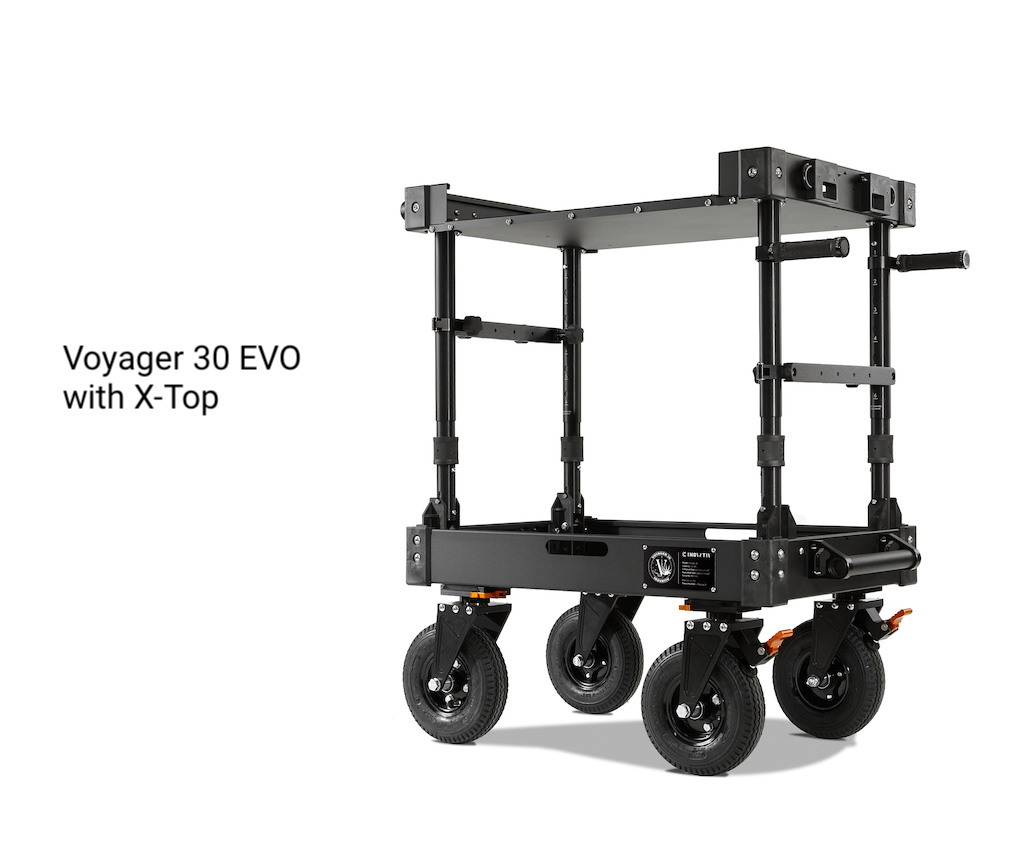

Voyager 30 EVO X:

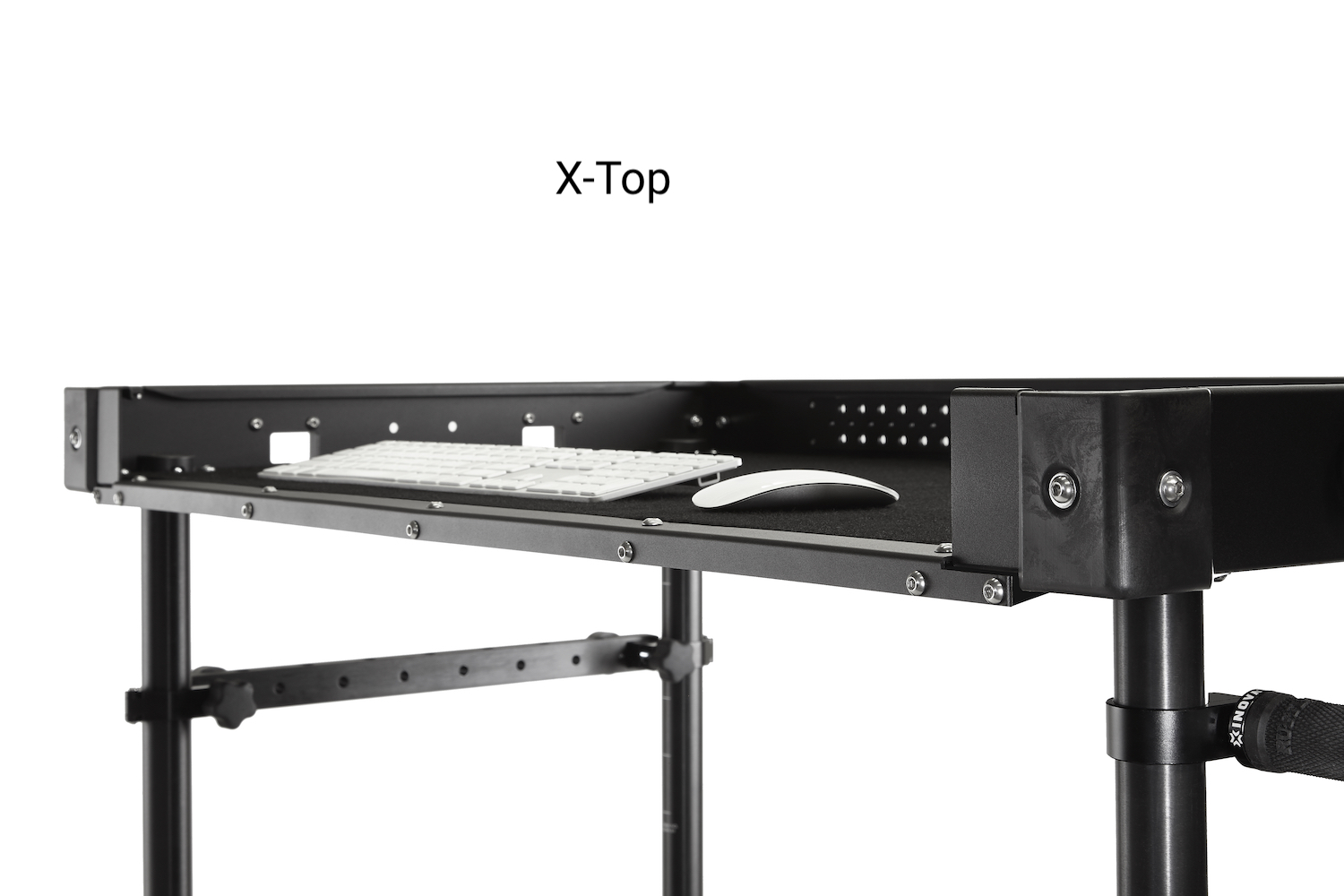

X-Top Inner Tray Size: 29” x 19”
Collapsed: 34”W x 21”L x 8.25”H
Assembled: 34”W x 21”L x 39.5”H

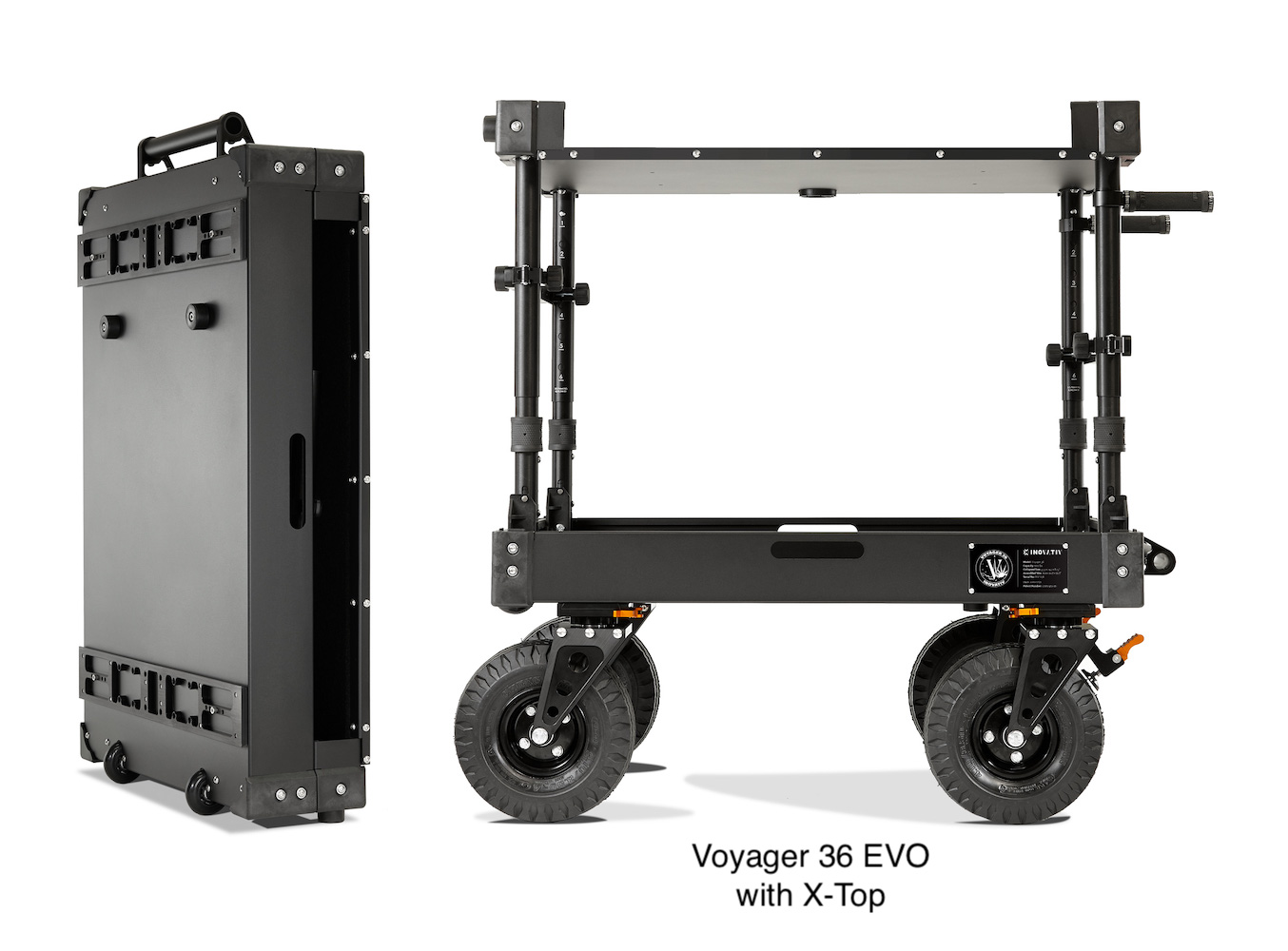

Voyager 36 EVO X:
X-Top Inner Tray Size: 35”W x 23.25”L

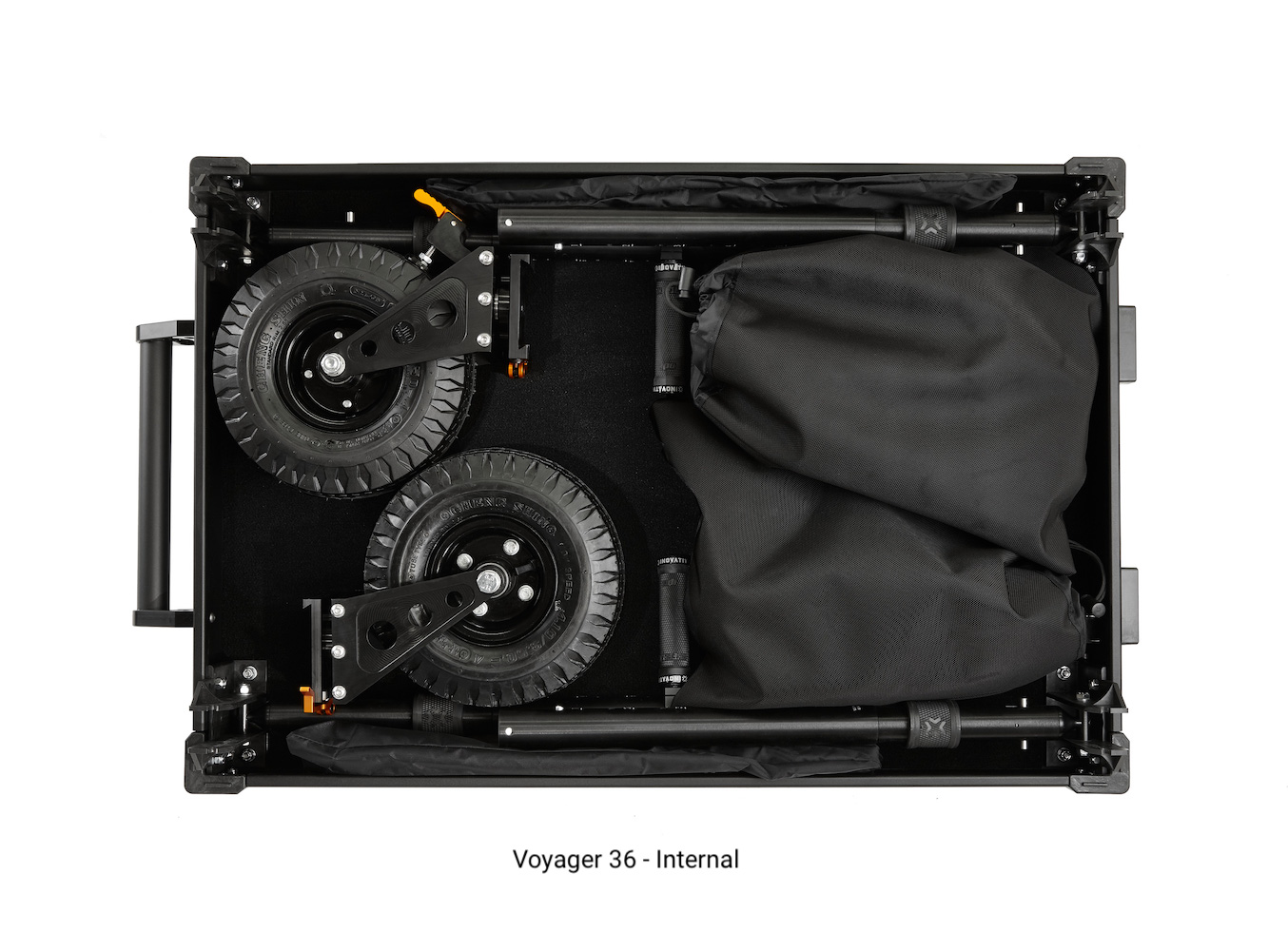

Collapsed: 39.9”W x 24.7”L x 8.25”H
Assembled:
39.9”W x 24.7”L x 39.5”H (8” Wheels)
39.9”W x 24.7”L x 40.9”H (10” Wheels)

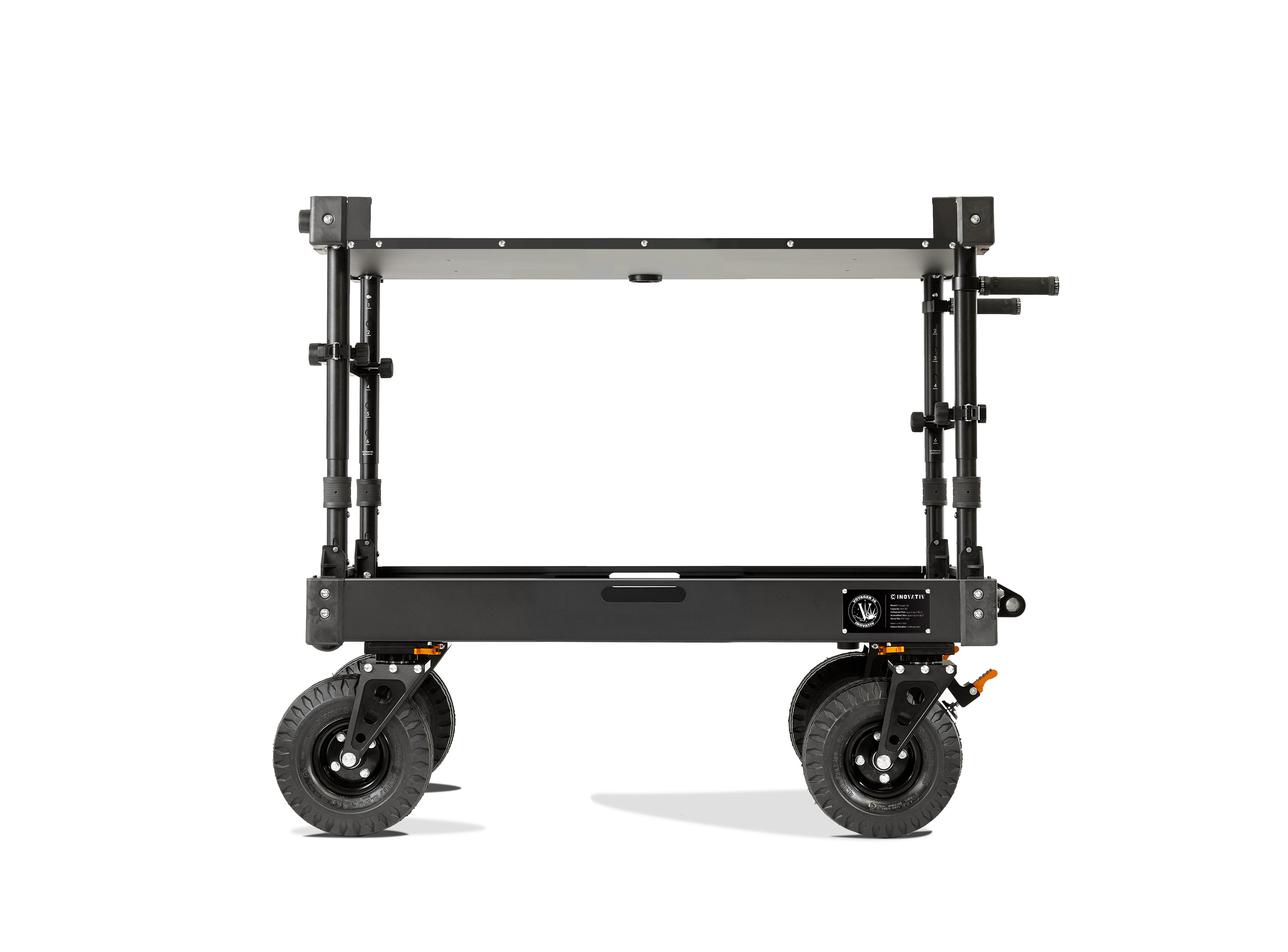

Voyager 42 EVO X:
X-Top Inner Tray Size: 41”W x 23.25”L

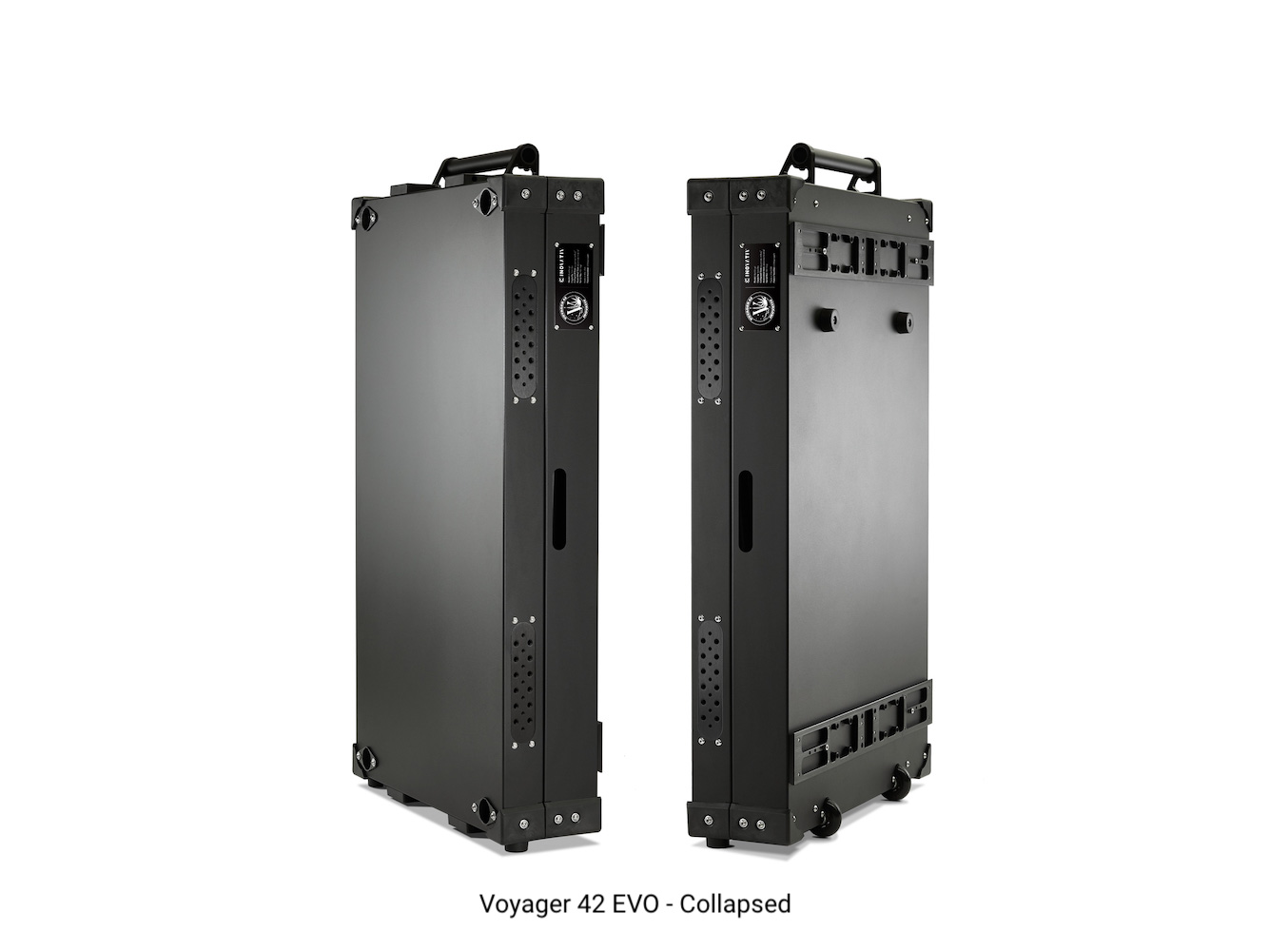

Collapsed: 45.9”W x 24.7”L x 8.25”H
Assembled: 45.9”W x 24.7”L x 40.9”H
(Outer Dimensions include handle)
Standard Equipment:
– 3″ Tall Top Shelf (Voyager 30, 36, 42)
– 4″ Tall Bottom Shelf
– 1 Set Quick Grips
– 2 Accessory Crossbars
– Foot Brake System
– 8″ removable sealed bearing aluminum dovetail wheel system (Voyager 30)
– 8″ removable sealed bearing aluminum dovetail wheel system (Voyager 36)
– 10″ removable sealed bearing aluminum dovetail wheel system (Voyager 42)
Features:
-Made in the USA
– Spring Loaded Latches
– Completely tool free design
– Collapses down to slim 8.25″ thick flight ready travel case
– 20% lighter than other carts currently serving the marketplace
– Upright posts lock in place and will not loosen over time
– 10″ of top shelf height adjustment in 2″ increments
– 100% sealed bearing wheels that are extremely quiet and easy to roll
– Equipped with INOVATIV’s Foot Brake System
– Constructed of premium 5052 and 6061 aluminum, 40% Glass Filled Nylon Corners & Hinge Brackets, and stainless steel hardware.
– Type II and III anodizing on all uprights and machined parts
– Durable texture black powder coat on top and bottom shelves
– 5 year limited warranty
