Description
We’ve incorporated a lightweight aluminum Main Frame System into the design of both Ranger and Echo carts that increases the stability and rigidity of the carts. In addition the Main Frame System includes hollow pass through ports for safe and secure routing of the hydraulic brake lines on carts that include the hydraulic brake system. This is unique to the Ranger and Echo carts and is not available on the Apollo or Voyager models. The tube structures and wheel system are manufactured using CNC processes and constructed of 6061 aluminum to shave every ounce of weight without compromising durability.
- Hand crafted in the USA
- Hand TIG welded
- Parts machined from 6061 T6 aluminum
- INOVATIV’s patented SLAS system allows for 10″ of adjustable work height at 2″ increments
- INOVATIV Foot Brake System
- 100% sealed bearing wheels
- Maximum carrying load: 1,000 pounds
- 5 year limited warranty
Product Code: E 0036 | E 0048
Payload Capacity: 1,000 lbs
Dimensions:

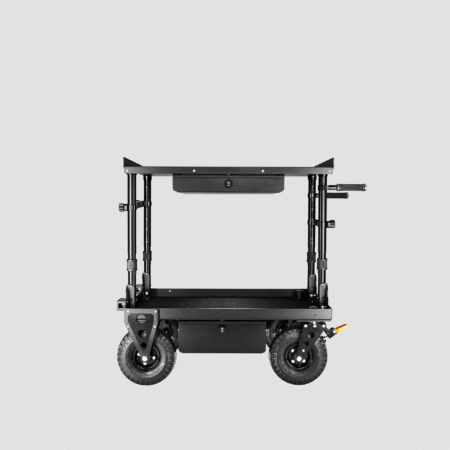

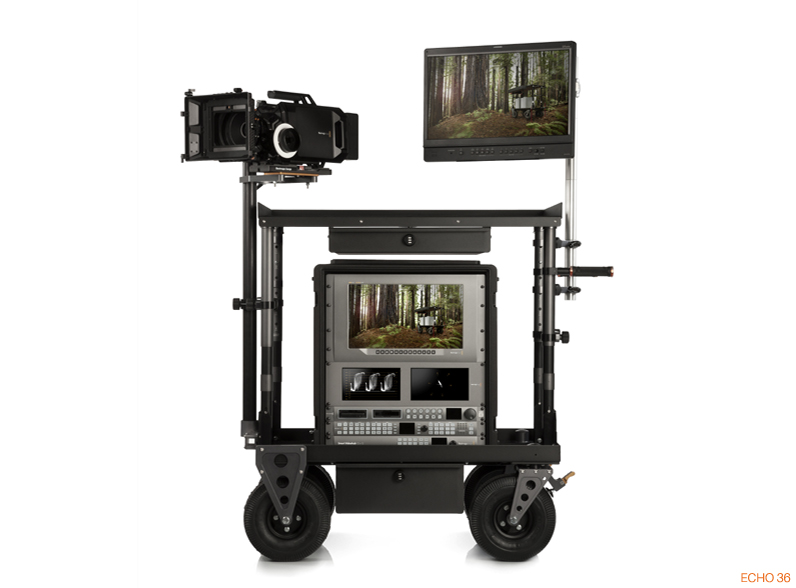

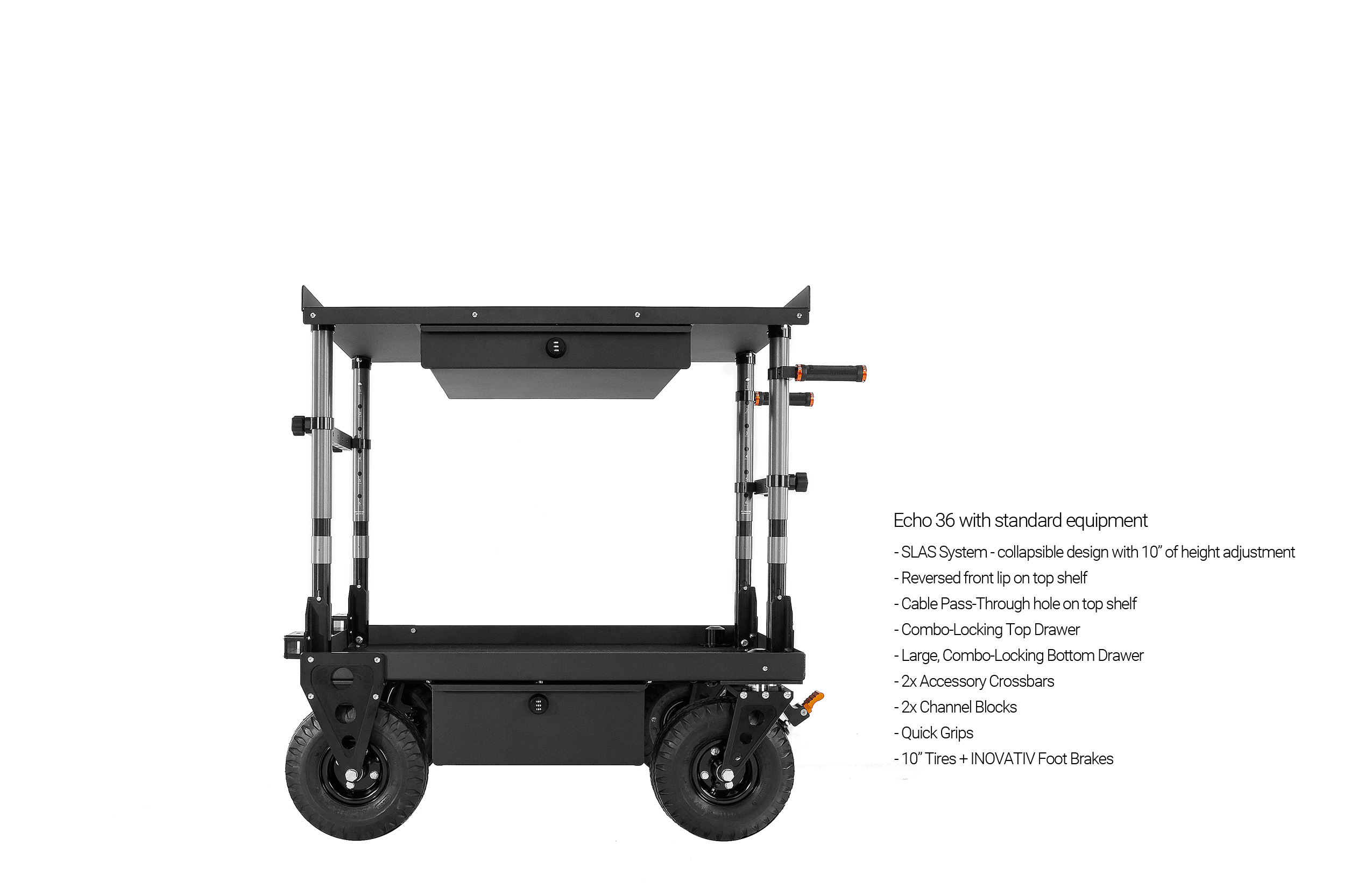

Echo 36

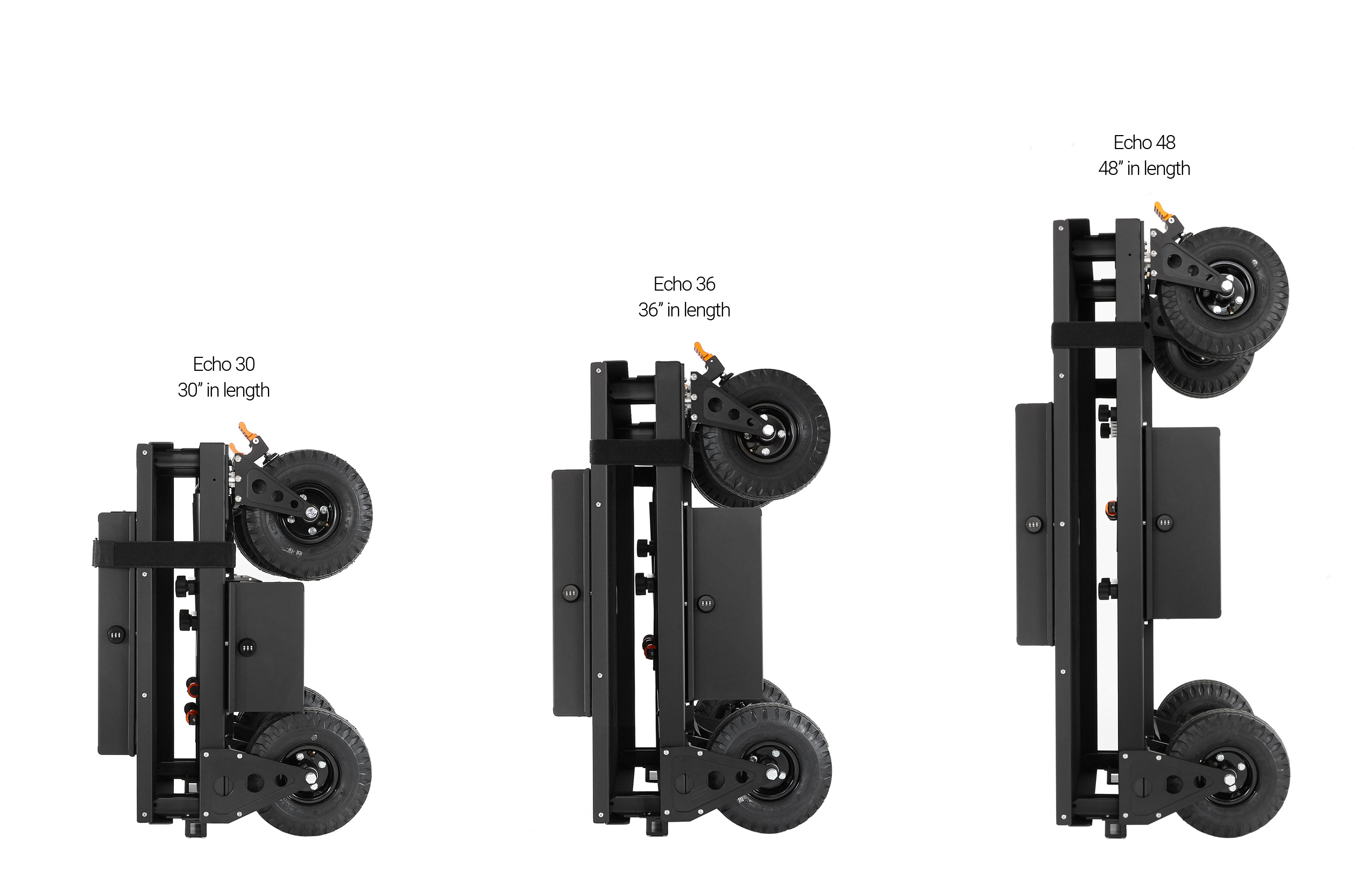

– Collapsed: 22.75″H x 24″W x 36″L
– Assembled: 39″H x 24″W x 36″L
– Weight: 93lbs

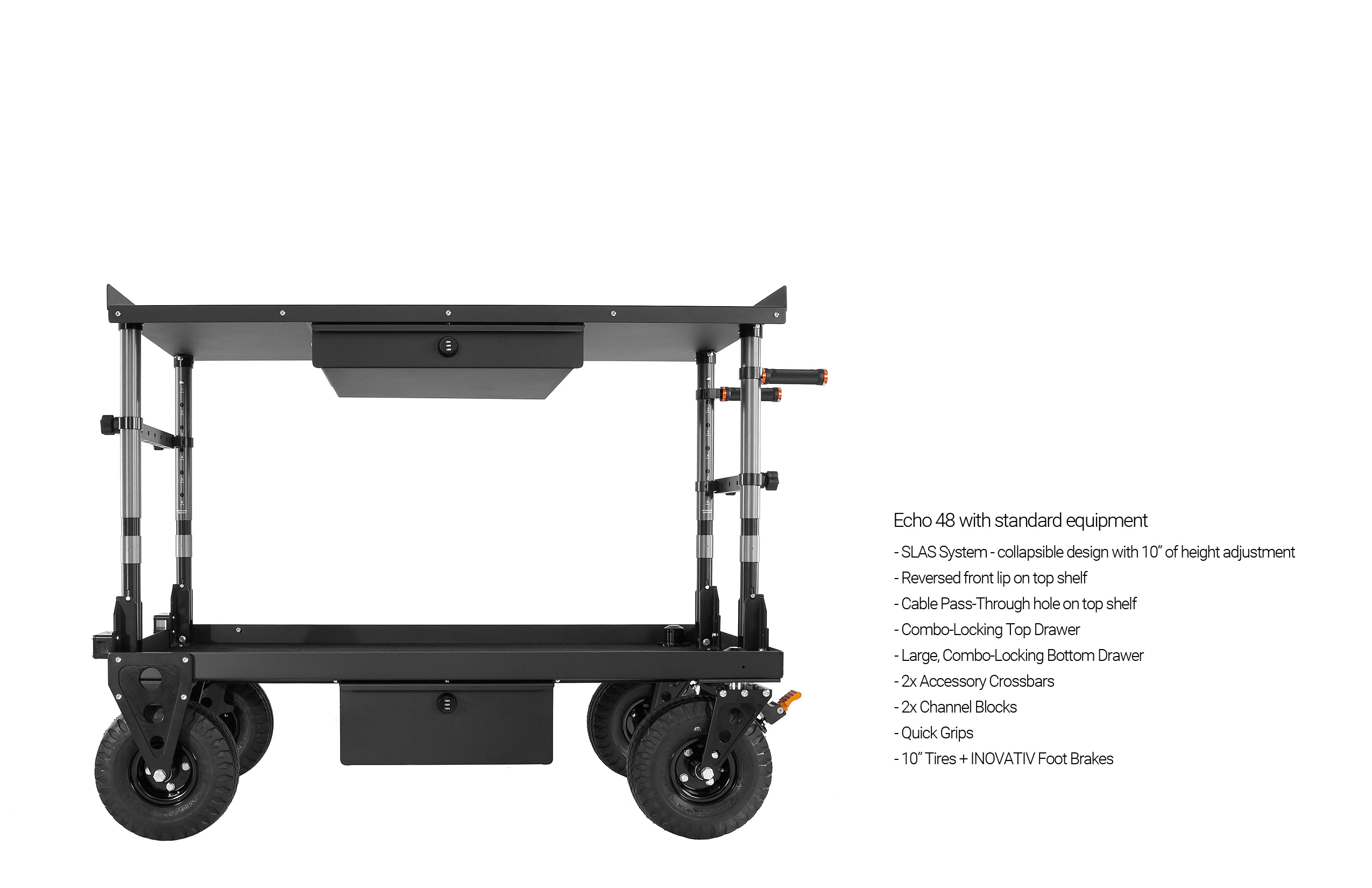

Echo 48
– Collapsed: 22.75″H x 24″W x 48″L
– Assembled: 39″H x 24″W x 48″L
– Weight: 115lbs

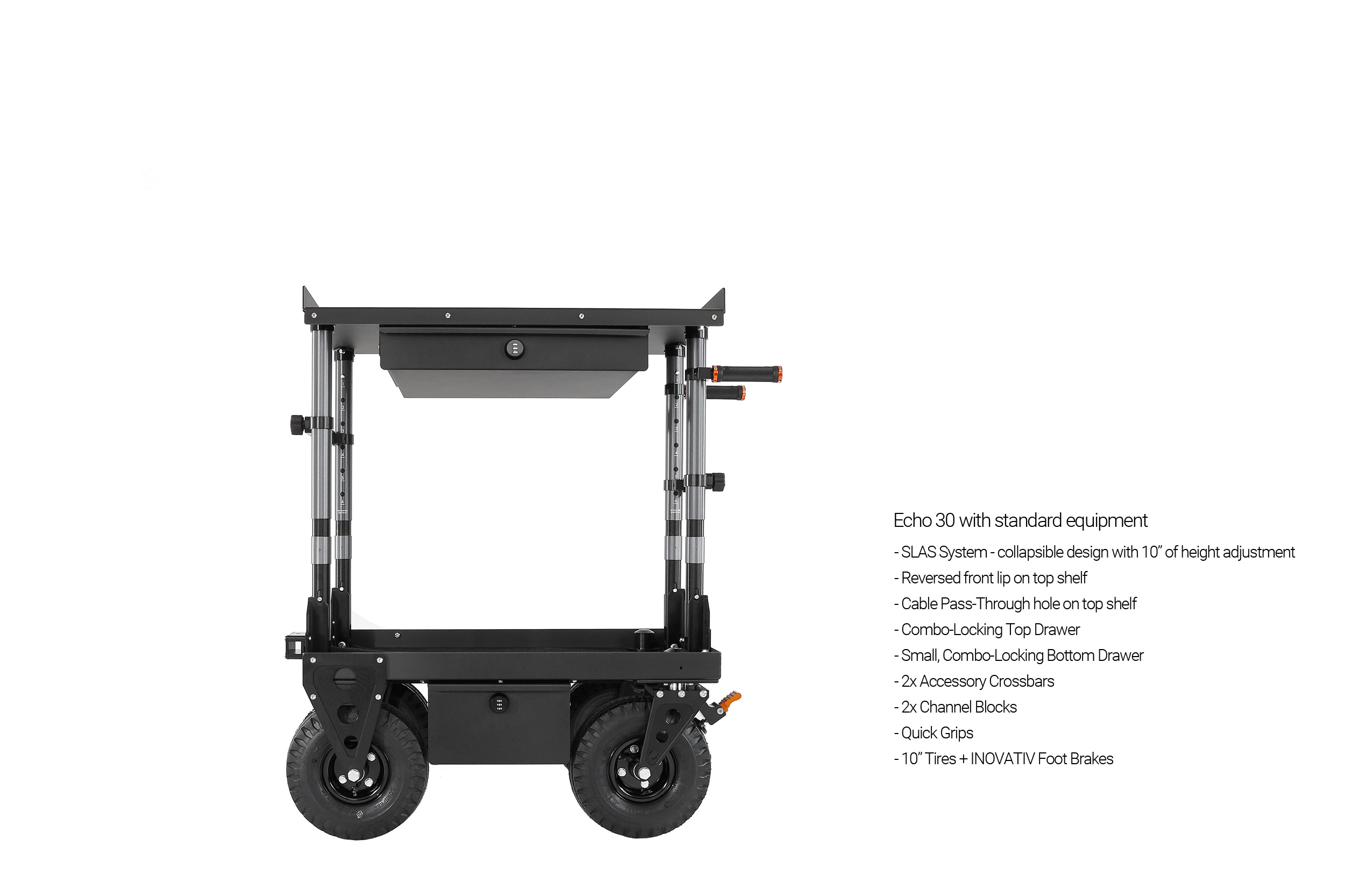

Standard Equipment
– Top & Bottom Shelf
– 1 Set Quick Grips
– 2 Accessory Channel Blocks
– 2 Accessory Crossbars

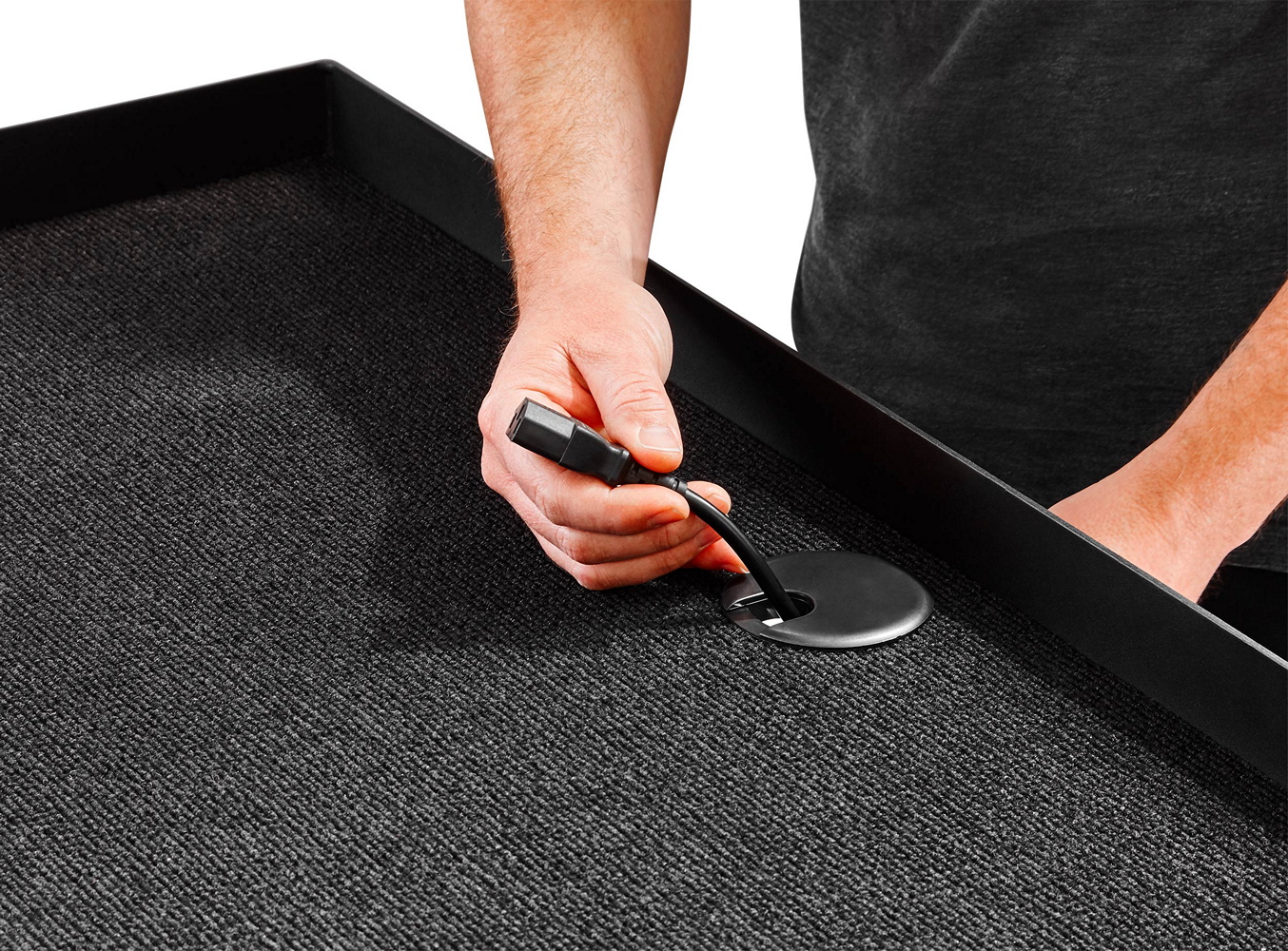

– 2.5 in Cable hole (Echo 36/48 only)

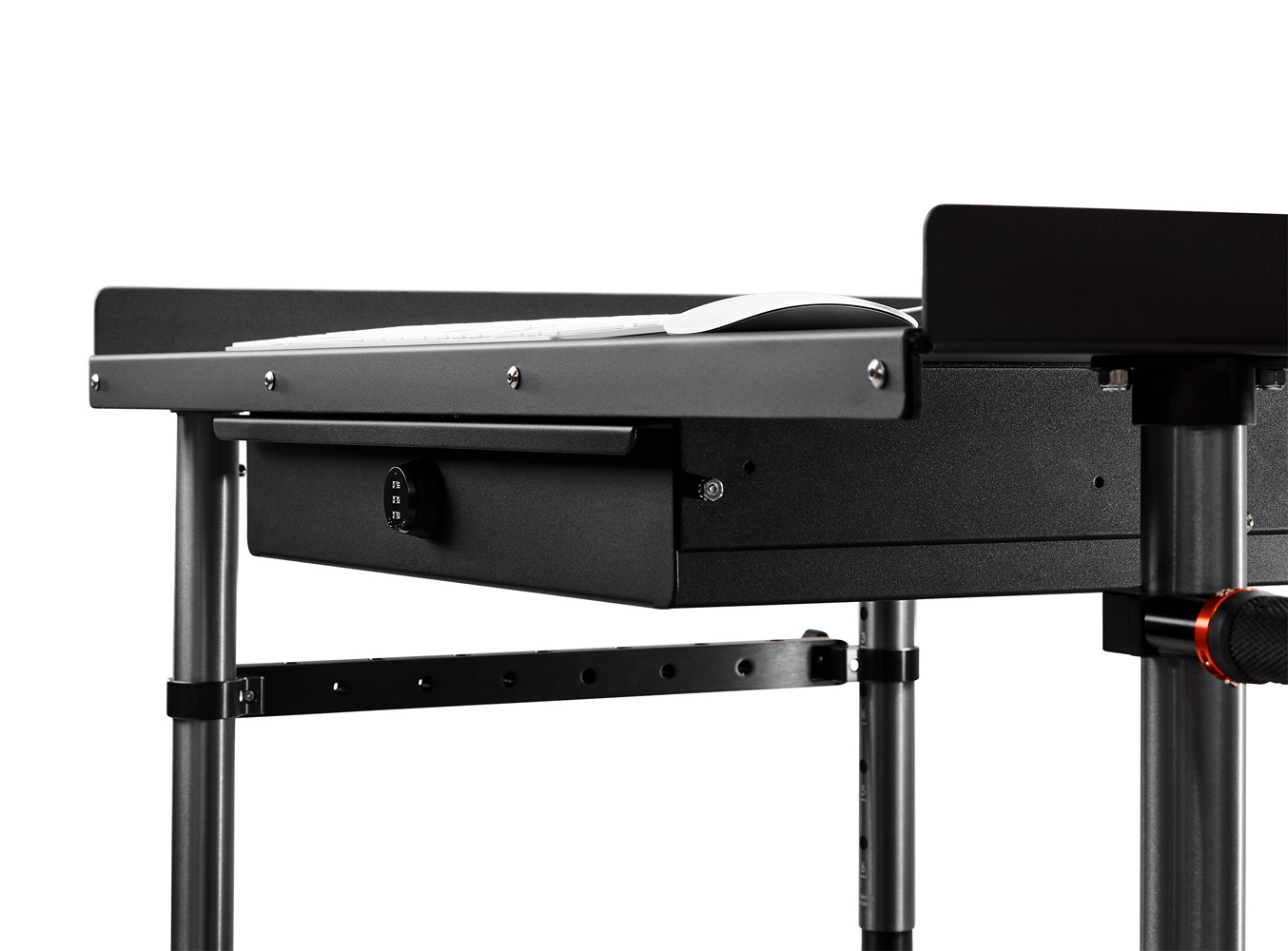

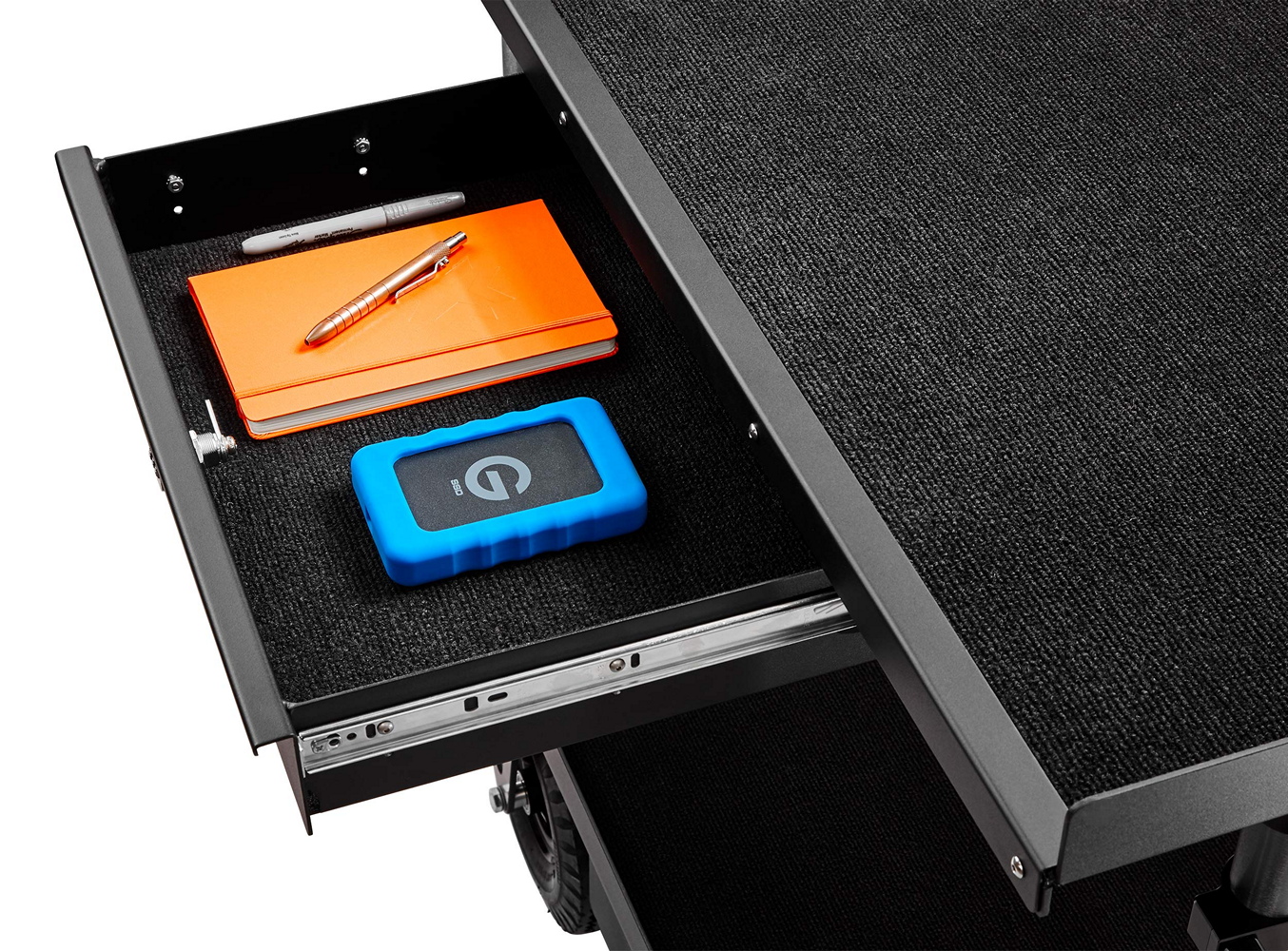

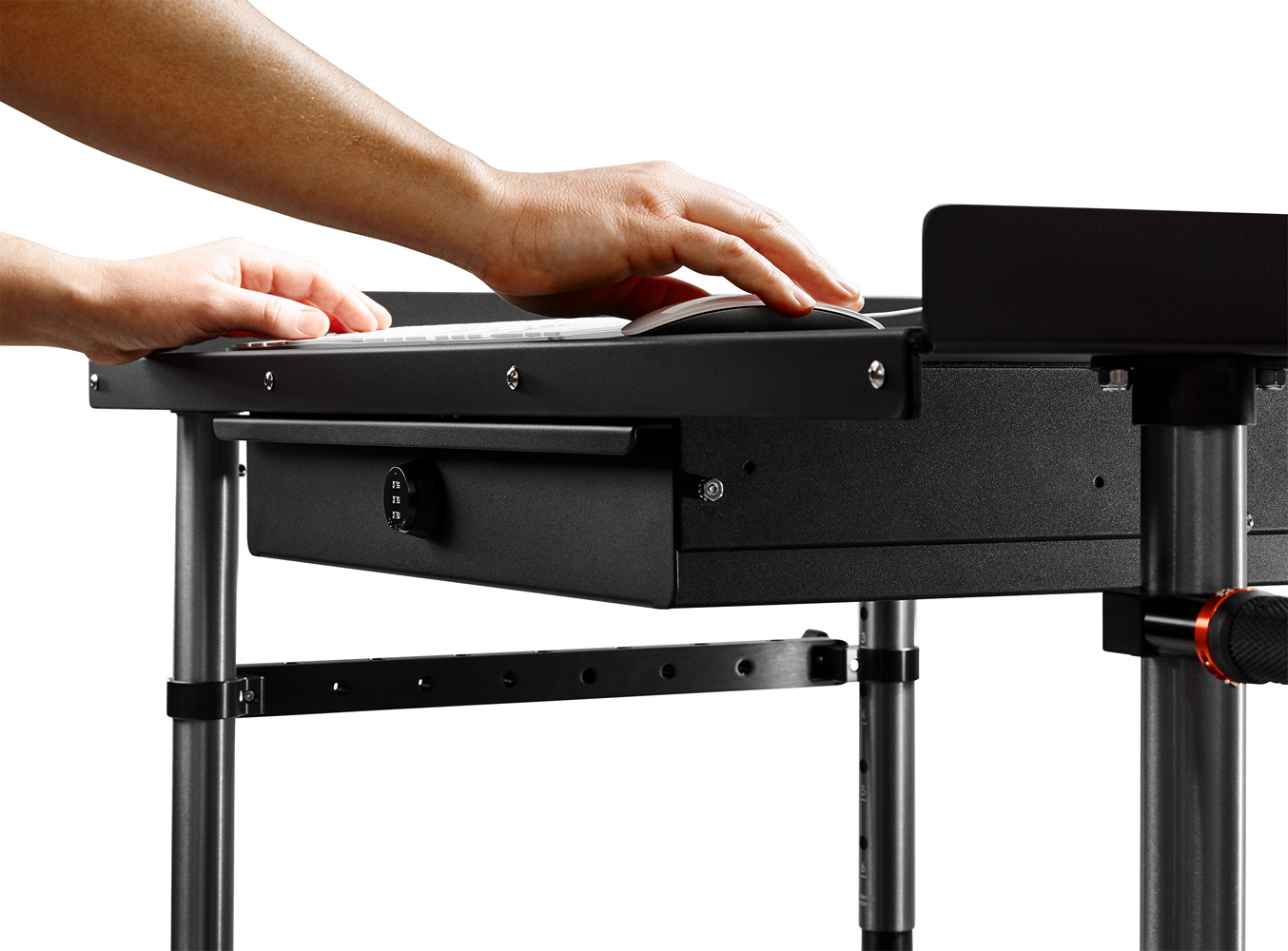

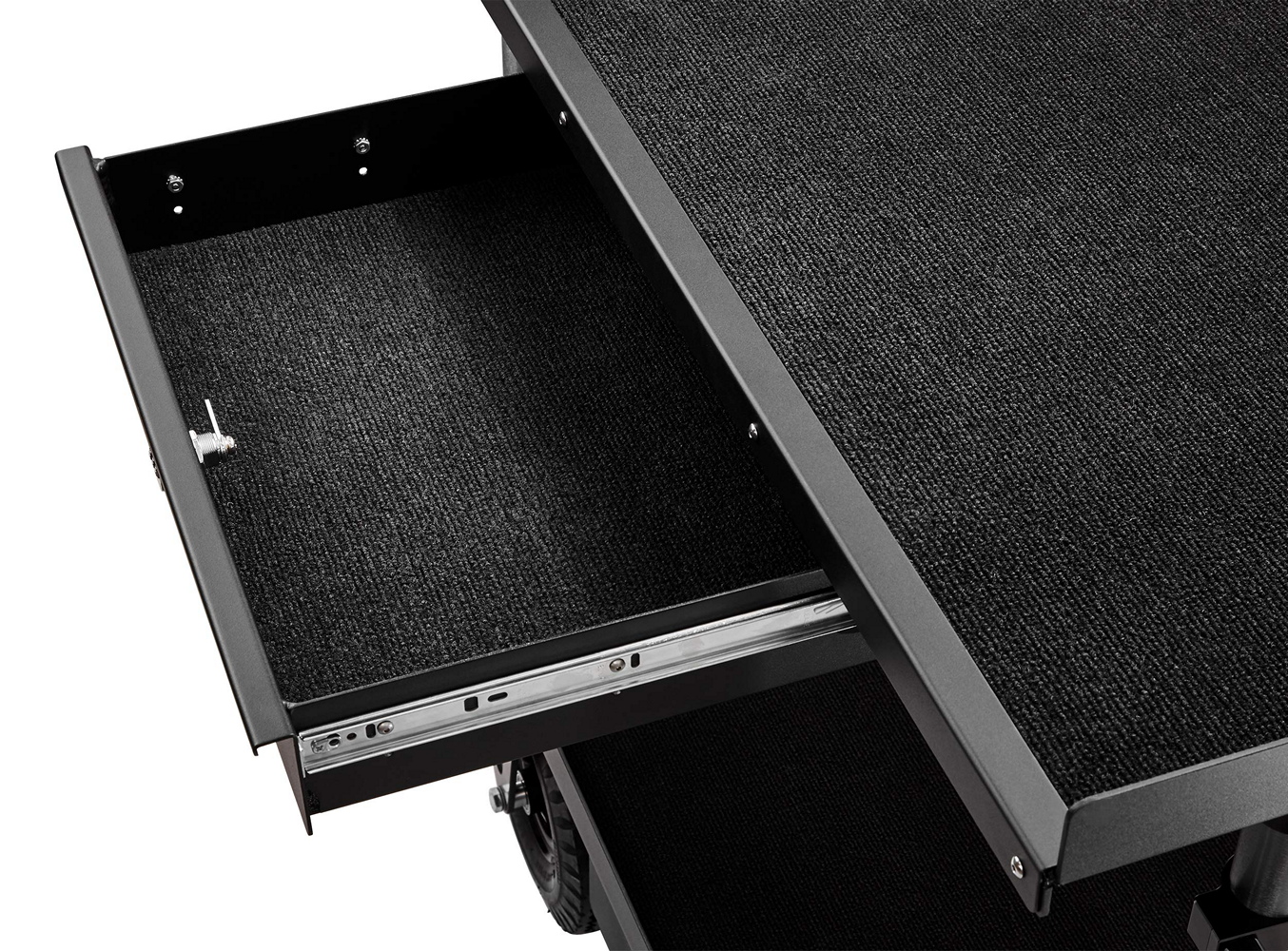

– Top combo locking drawer w/ soft drawer slides

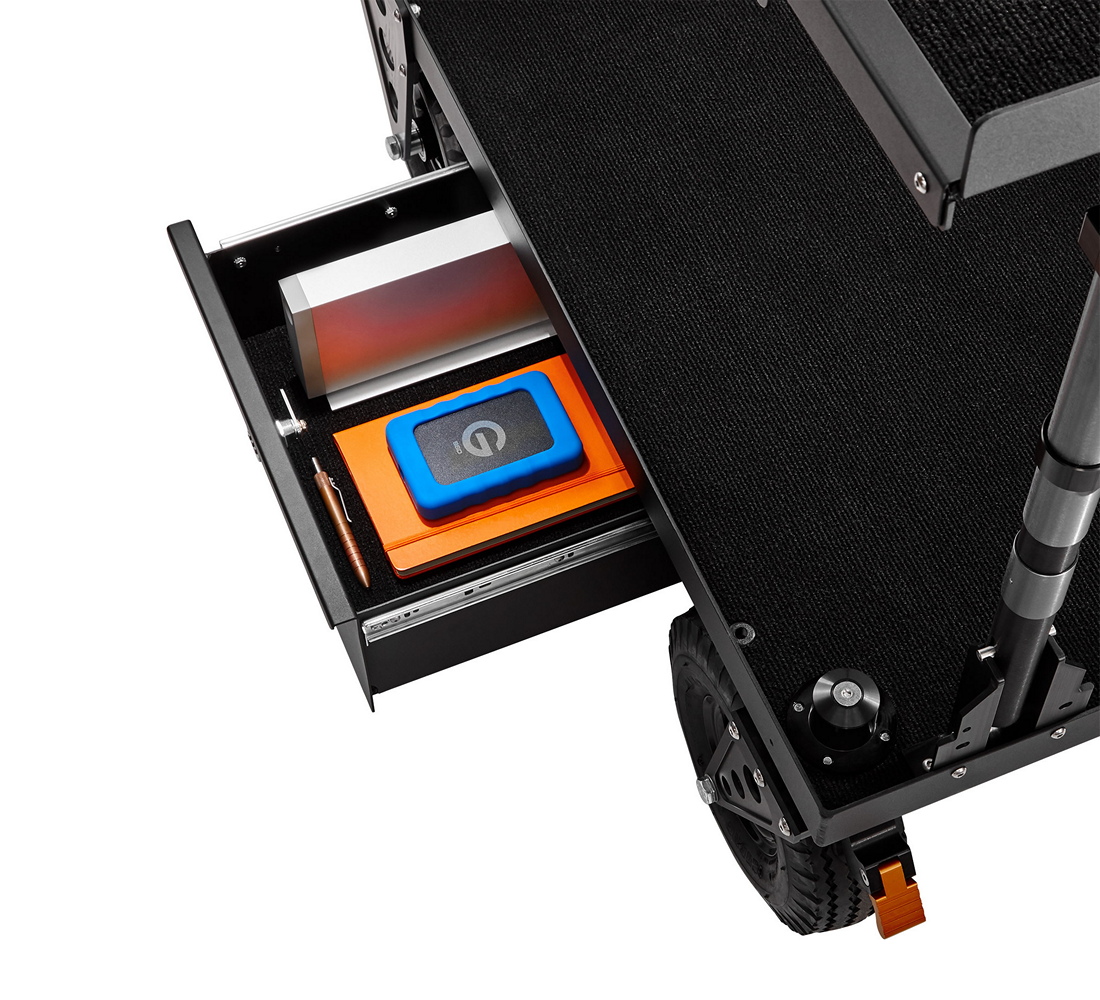

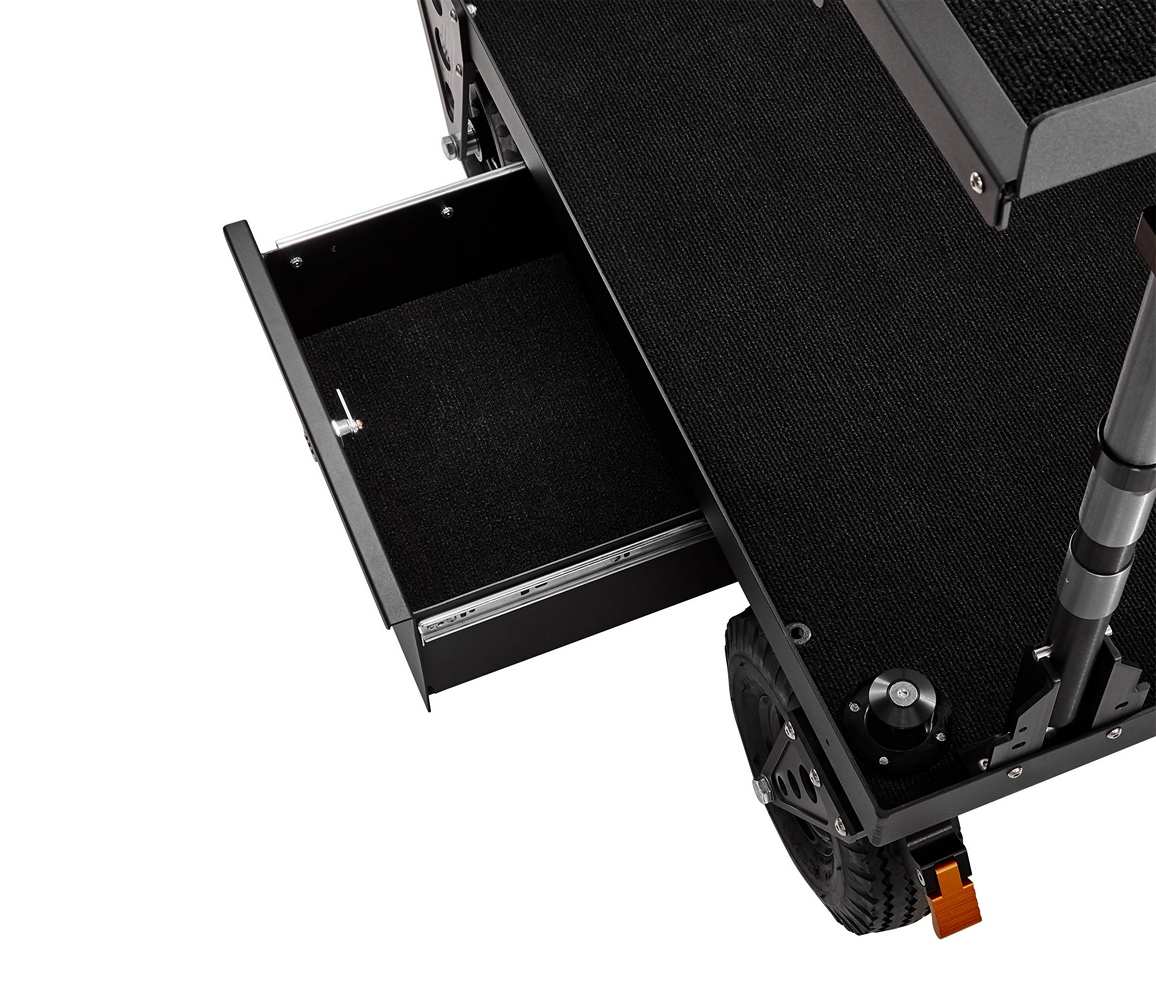

– Bottom combo locking drawer w/ soft drawer slides
– Rolled front lip of top shelf
– Foot Brake System

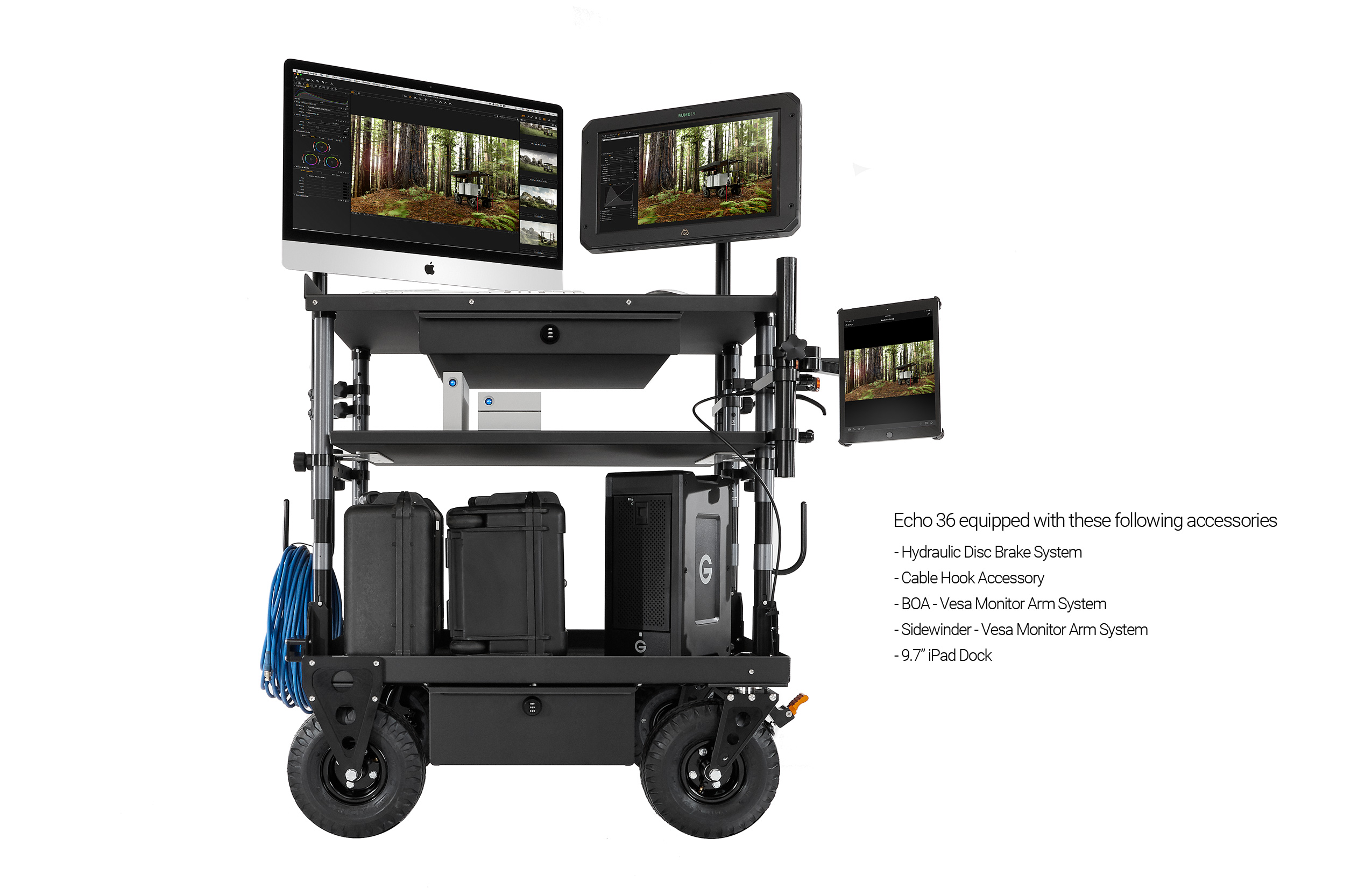

– Hydraulic Brake Systems can be added at time of order but are not standard equipment
Features:
– Made in the USA
– Completely tools free design
– Constructed of premium 5052 and 6061 aluminum and stainless steel hardware
– 30% lighter than other carts currently serving the marketplace
– Upright posts lock in place and will not loosen over time
– 10″ of top shelf height adjustment in 2″ increments
– 100% sealed bearing wheels that are extremely quiet and easy to roll
– Equipped with INOVATIV’s Foot Brake System
– Type II and III anodizing on all uprights and machined parts
– Durable texture black powder coat on top and bottom shelfs
– 5 year limited warranty
