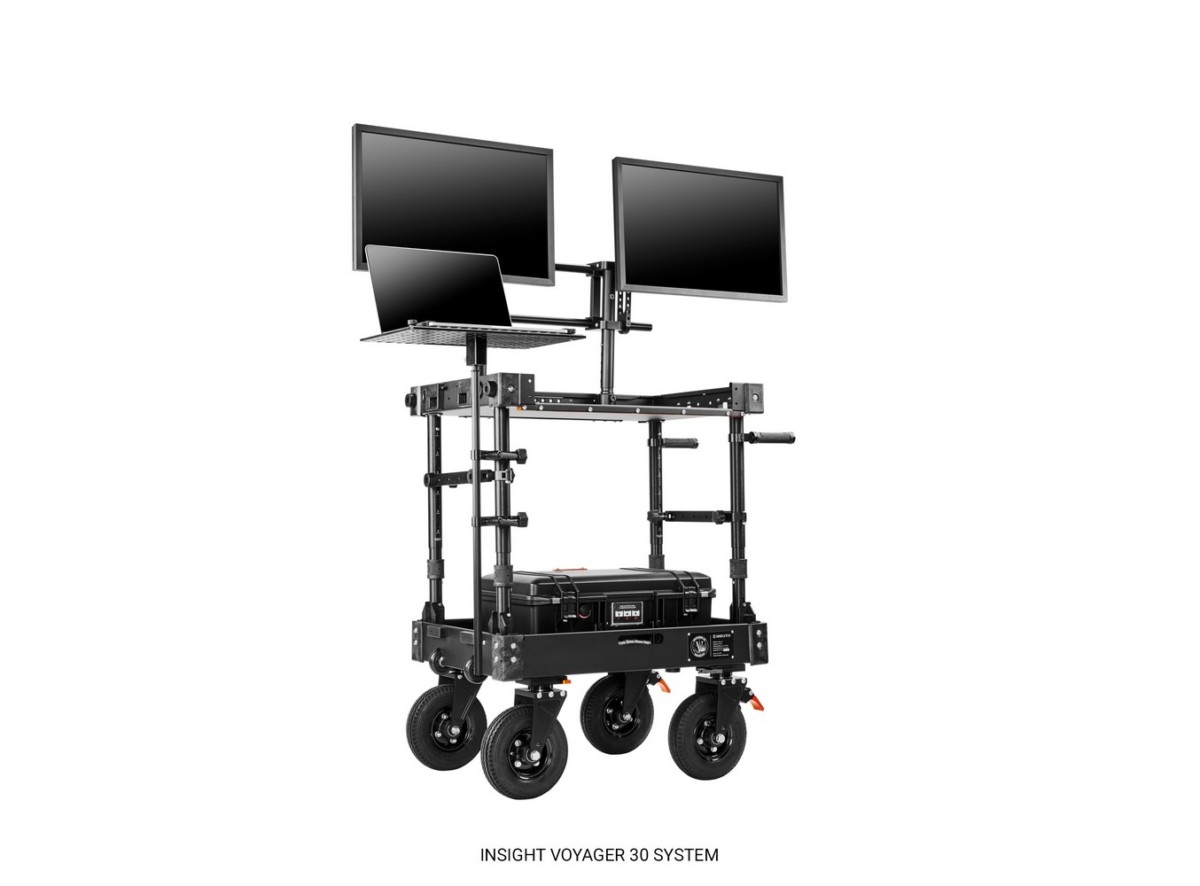

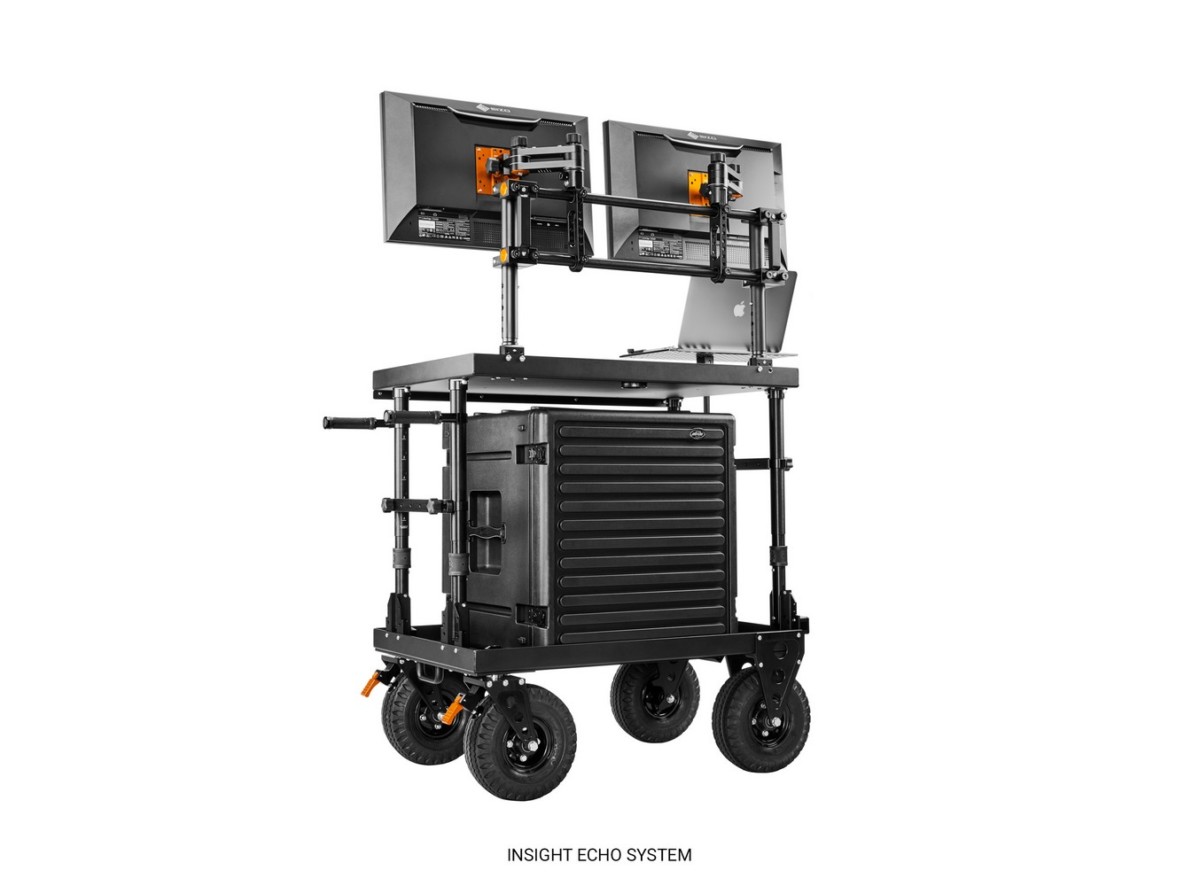

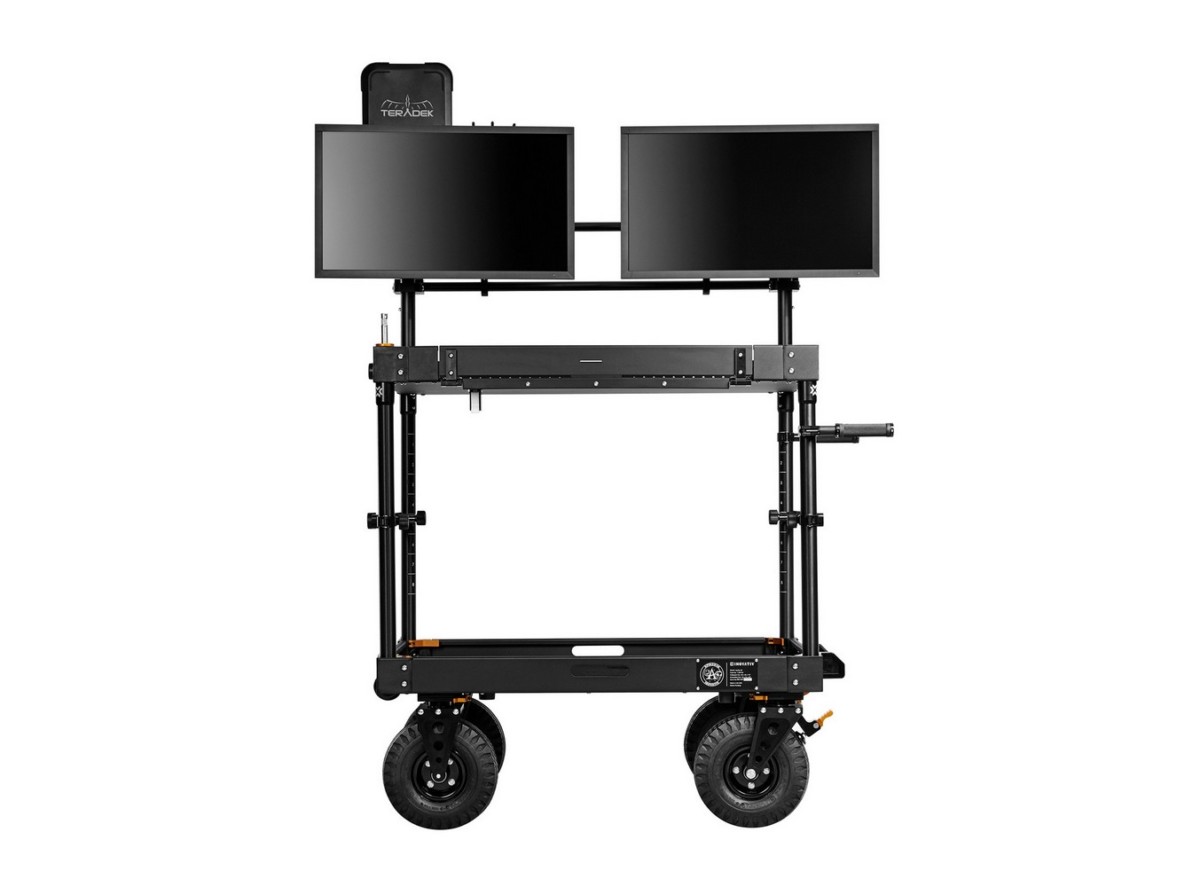

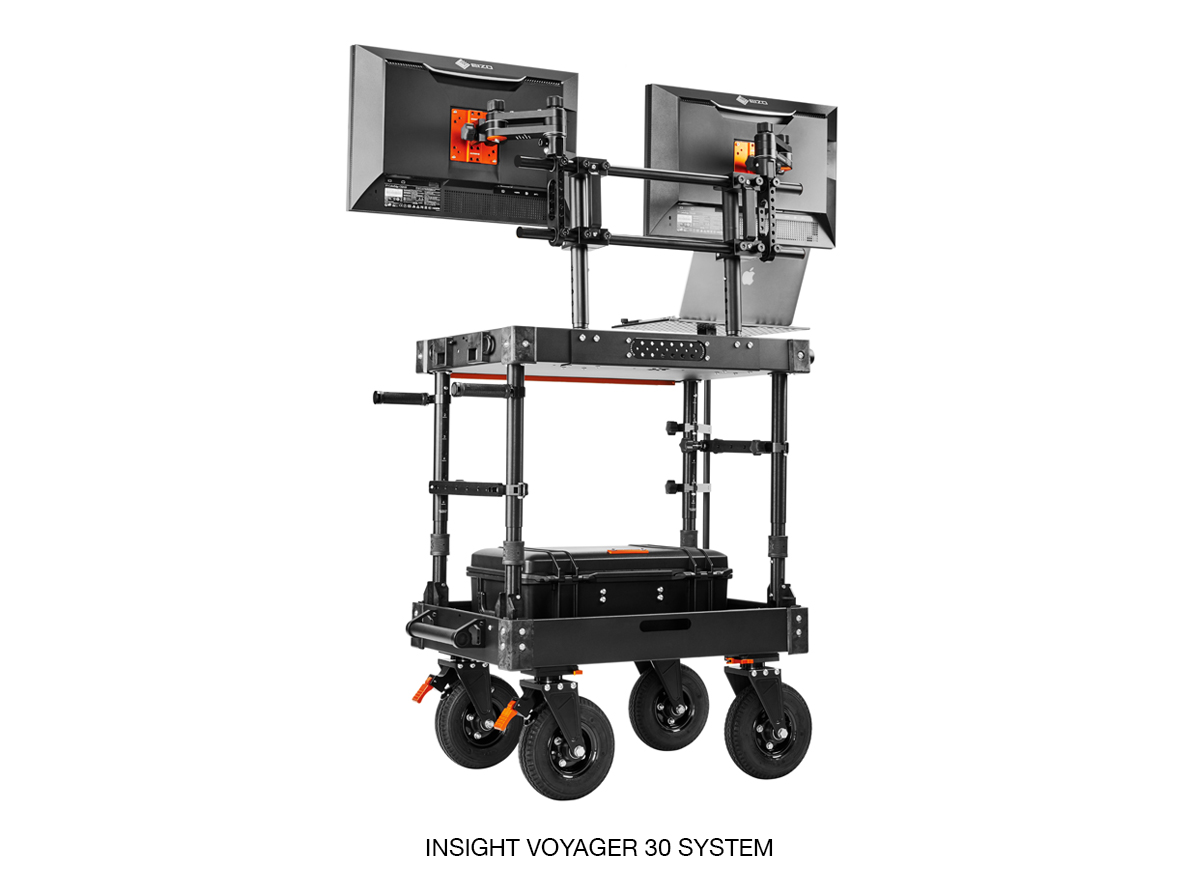

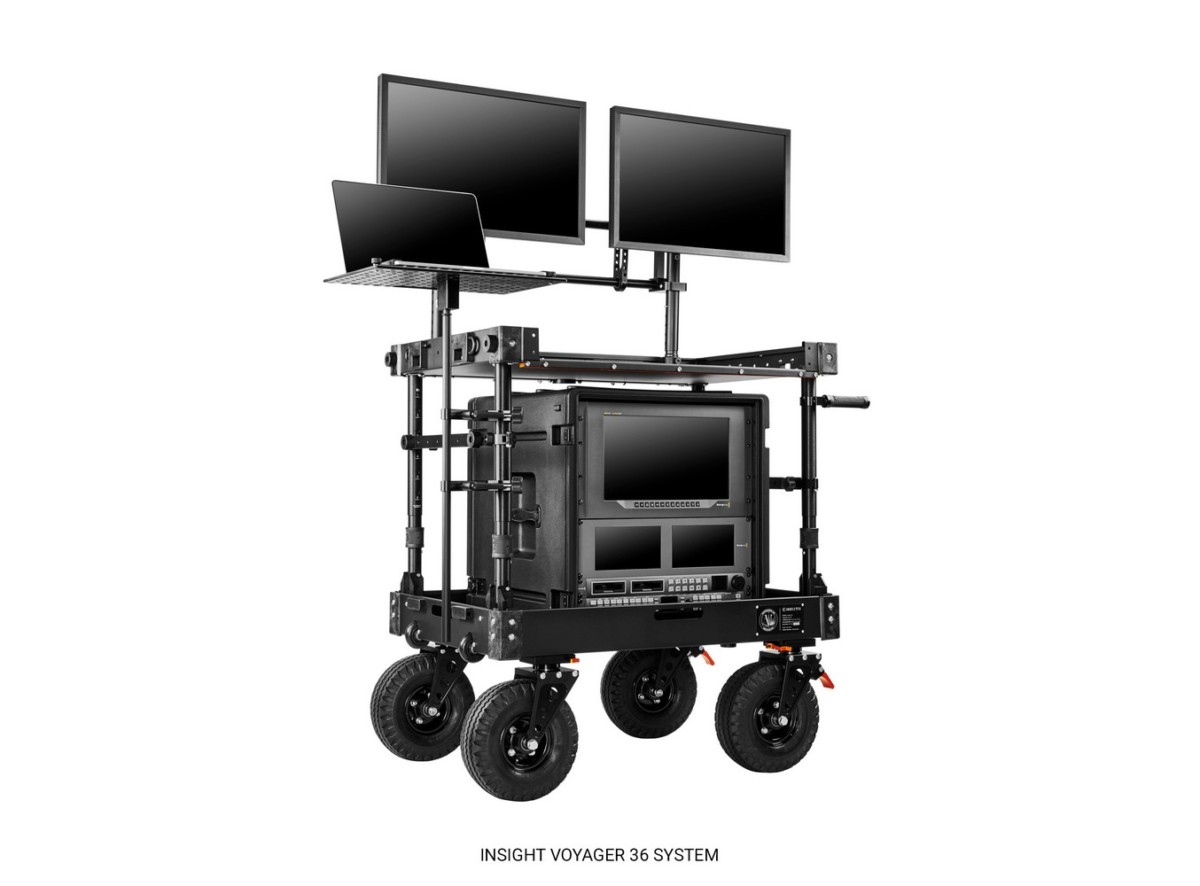

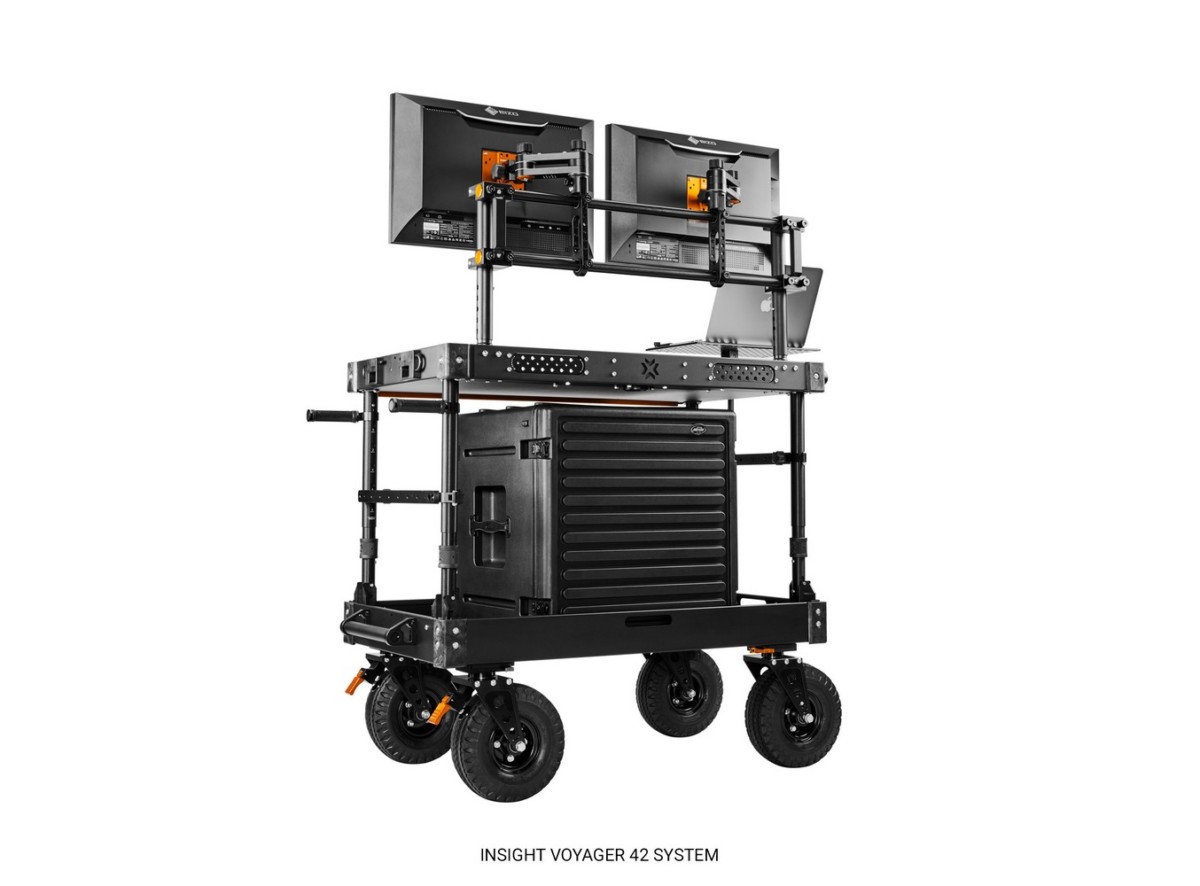

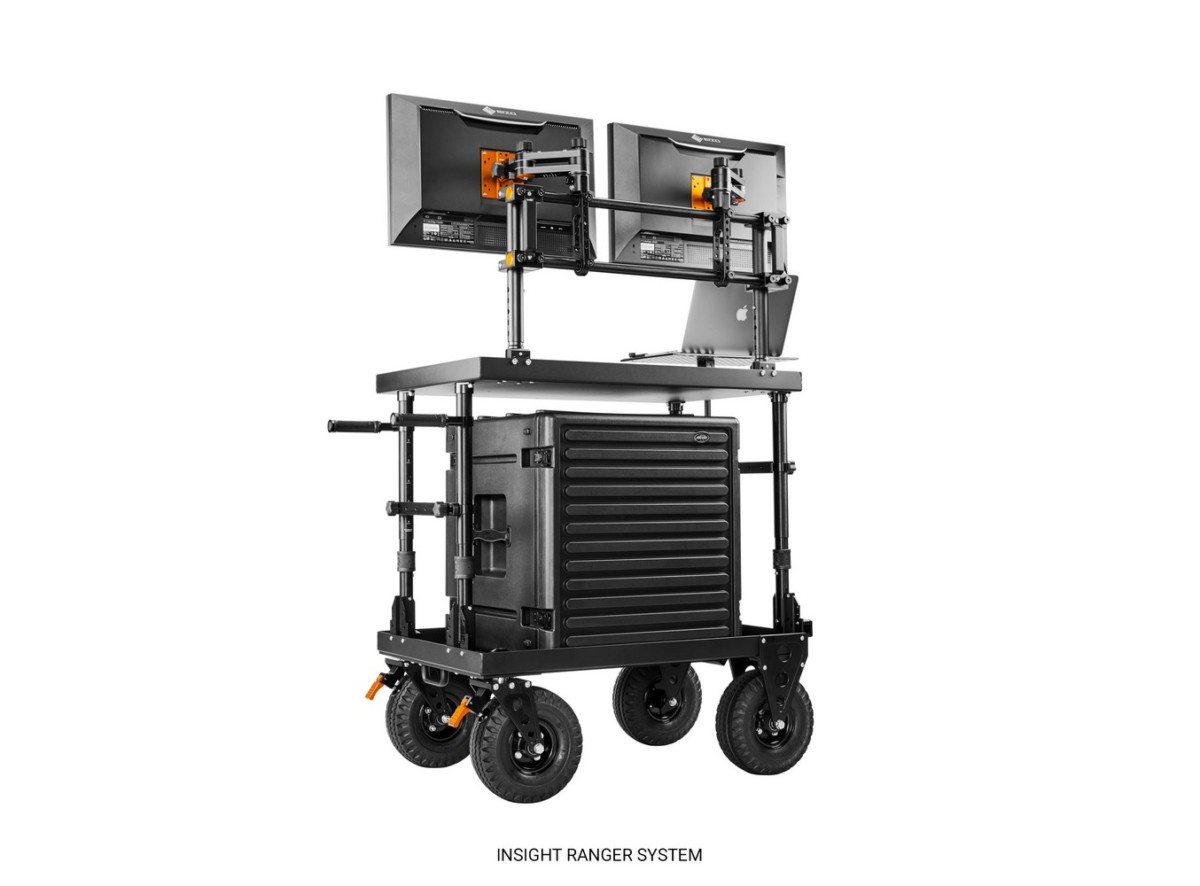

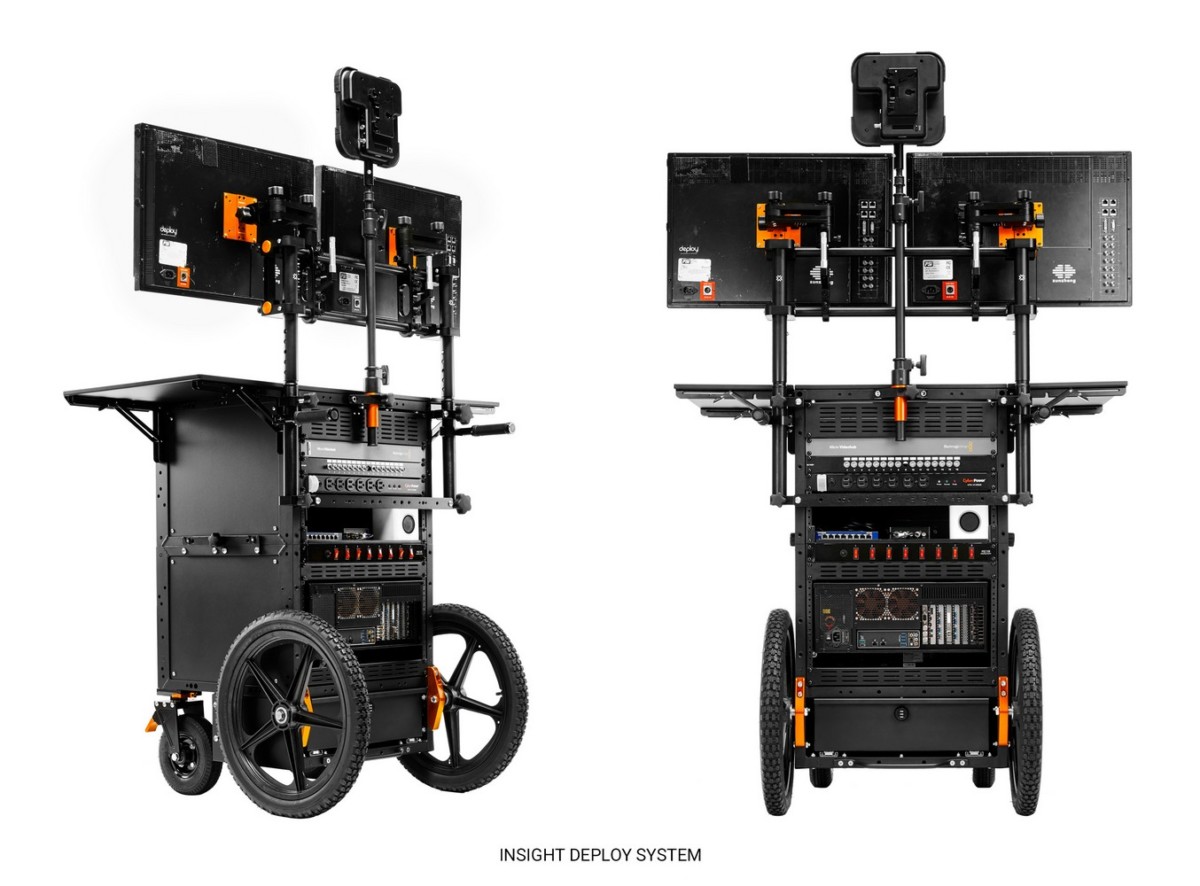

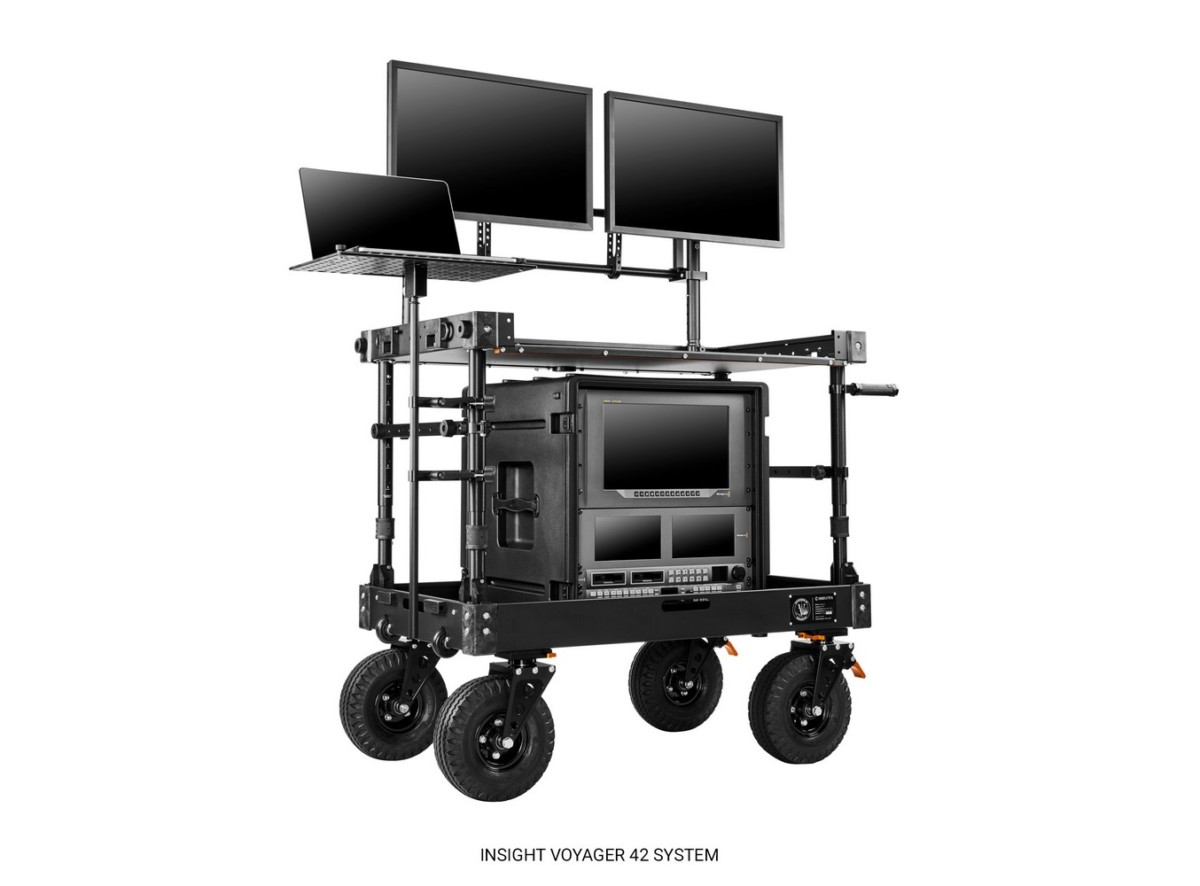

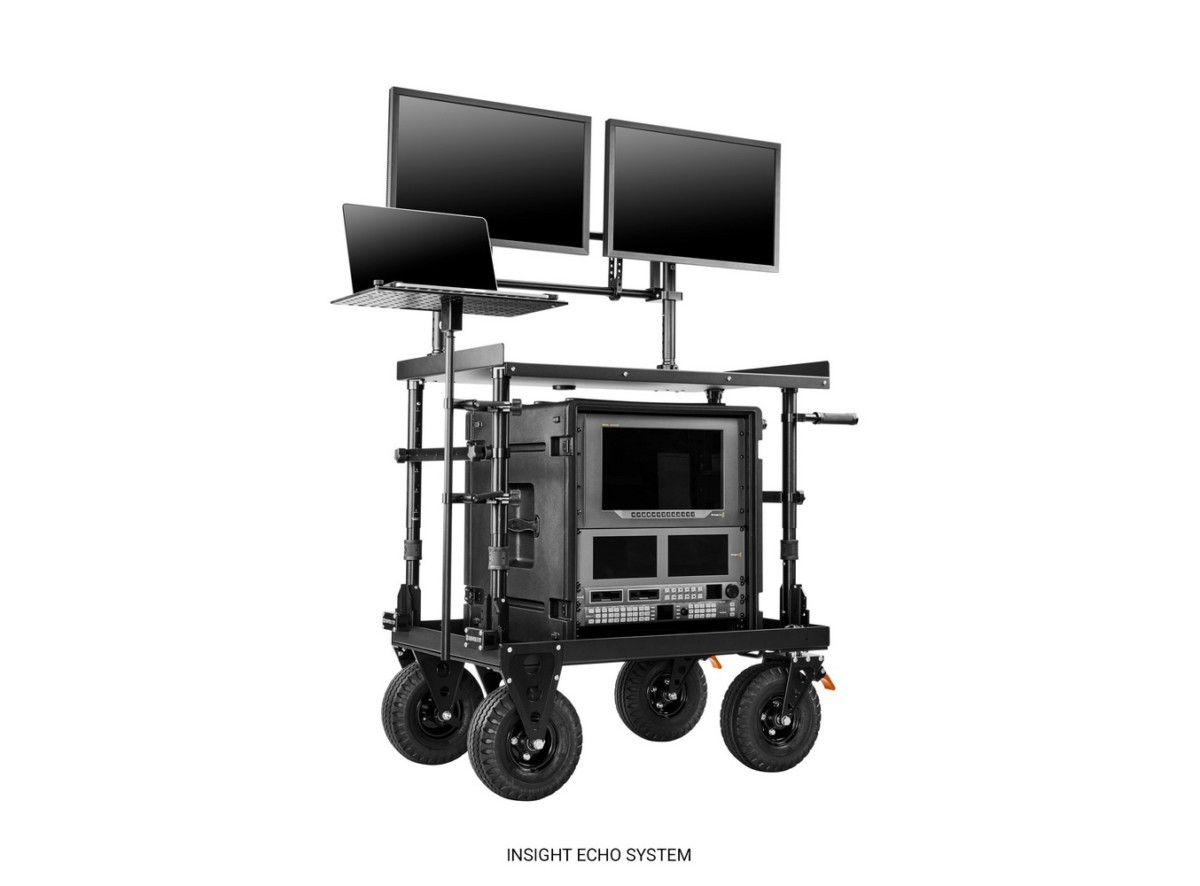

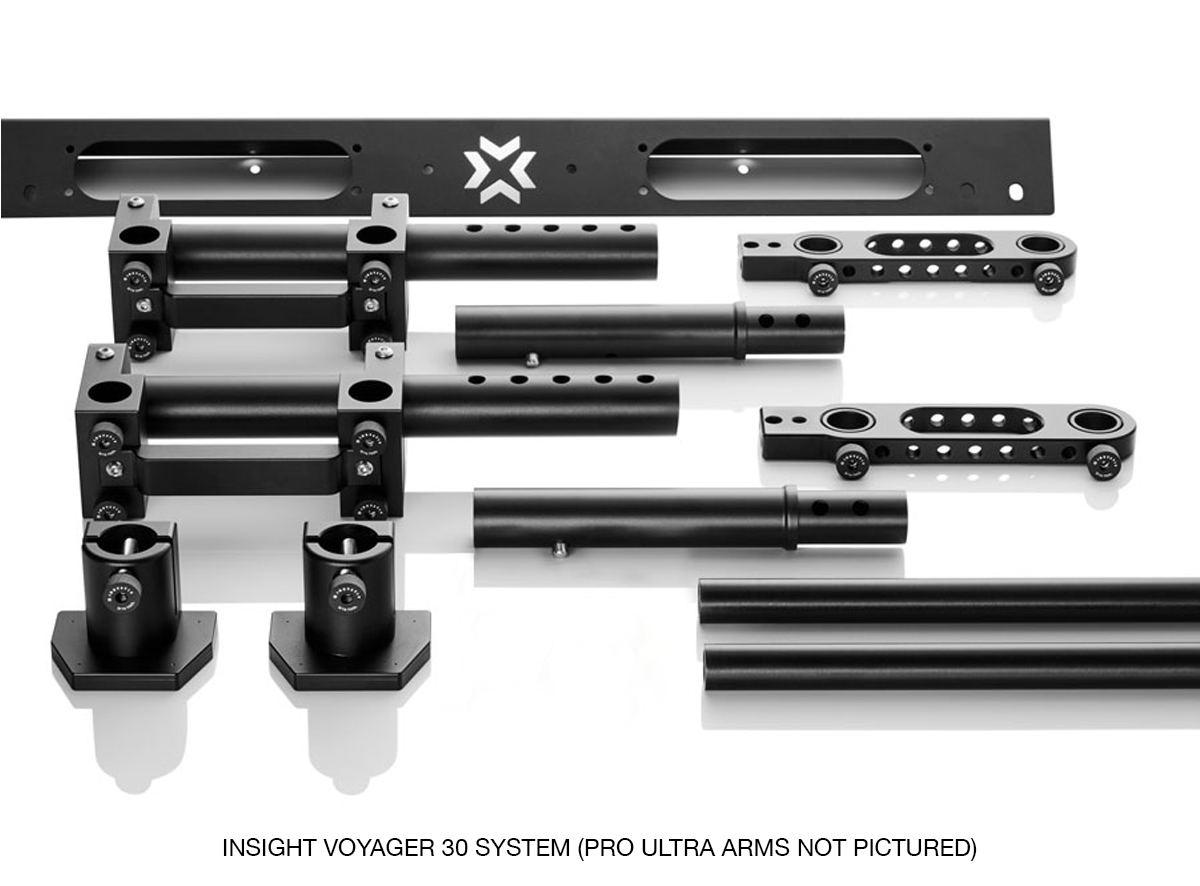

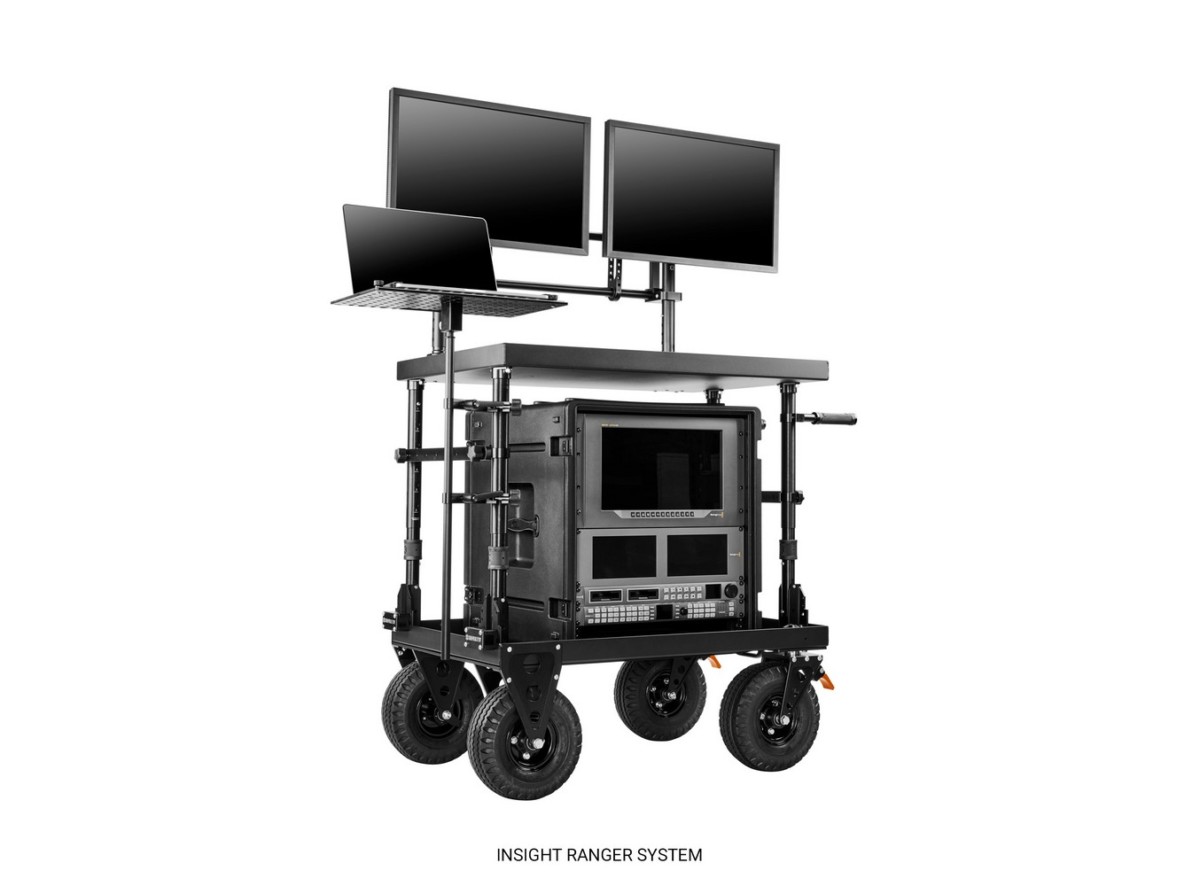

Insight Monitor Mounting System

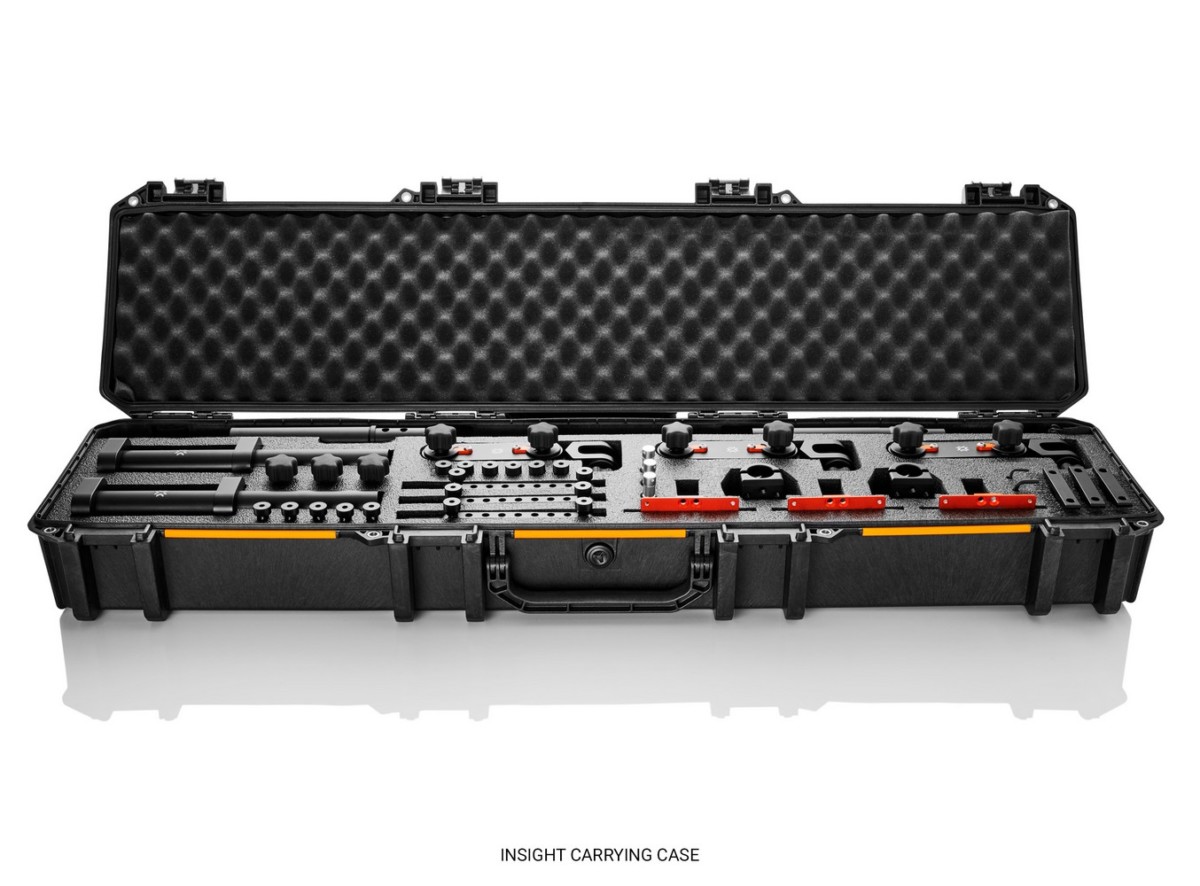

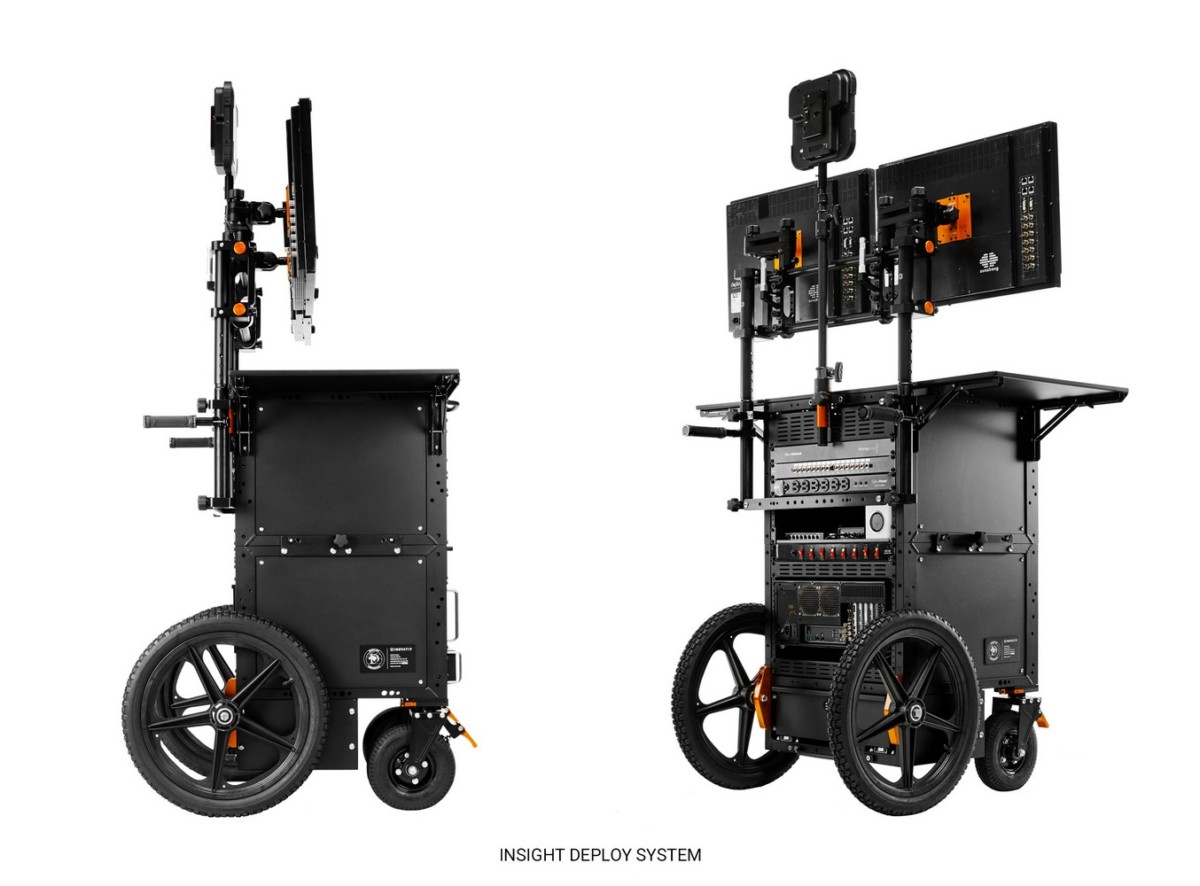

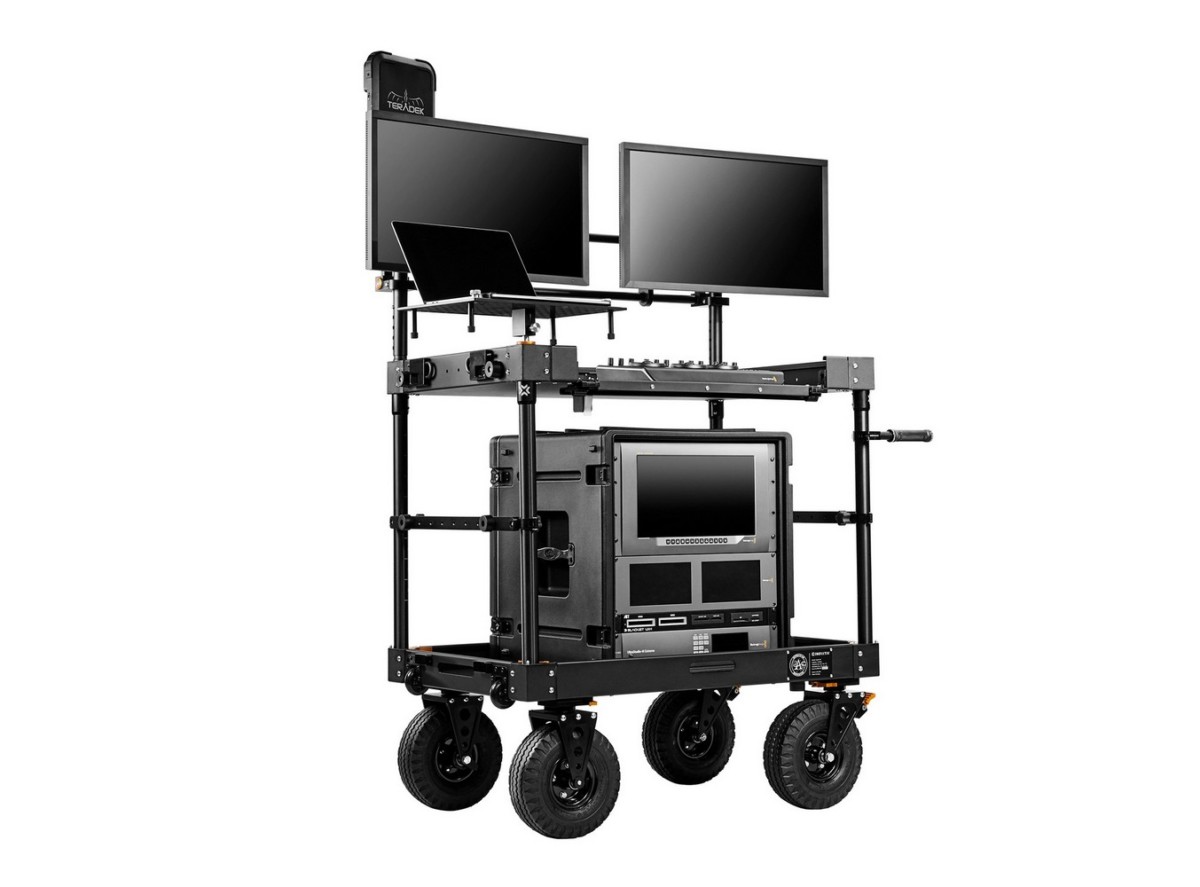

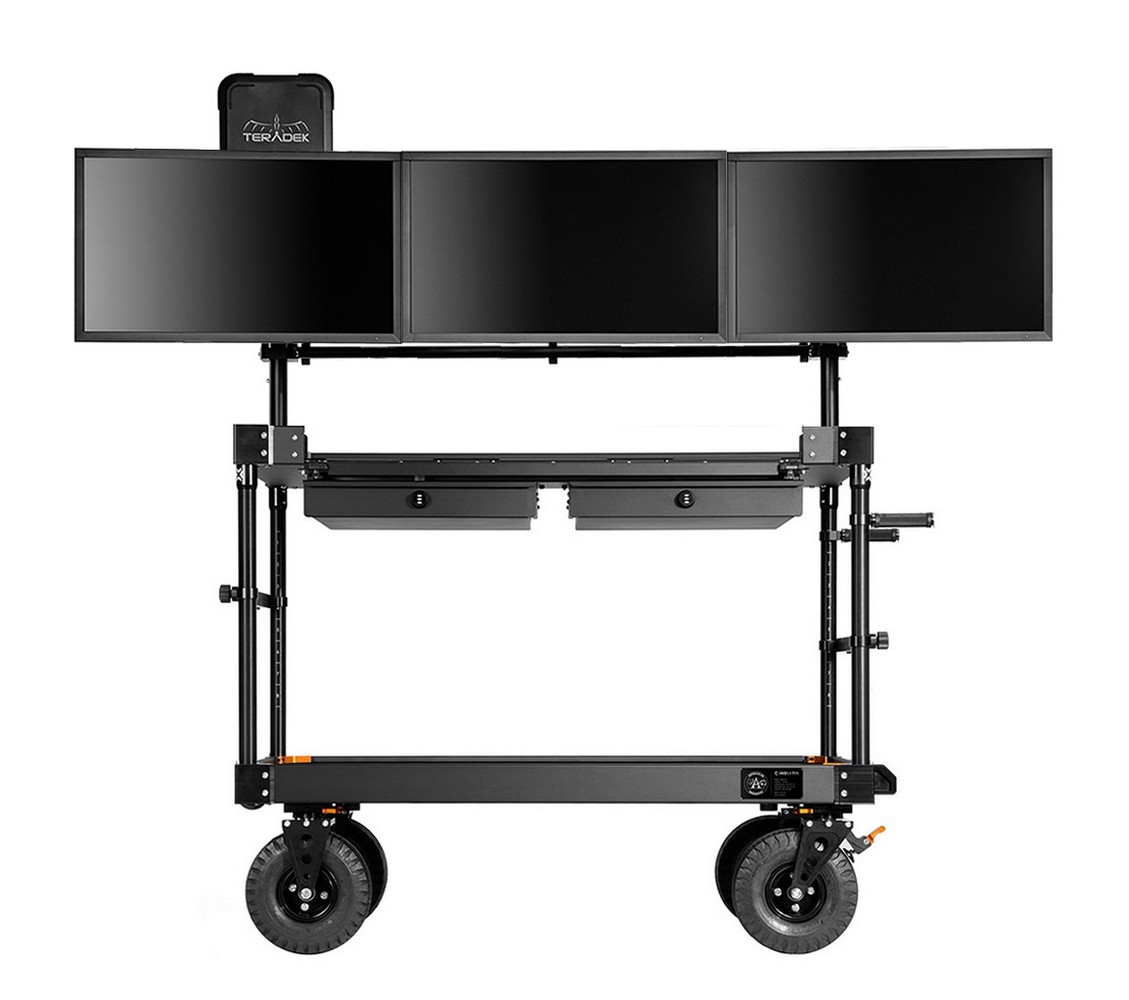

The Insight is a monitor mounting system that integrates perfectly with all INOVATIV workstations.  It is designed to hold multiple monitors at a time, and offers a wide variety of mounting options.  The dual cross tubes deliver stability and strength, maximizing the systems ability to hold multiple monitors and withstand the demands of set life.  The Insight collapses down and packs up easily for transportation.  Designed and Manufactured in California, USA and includes a 5 year warranty.

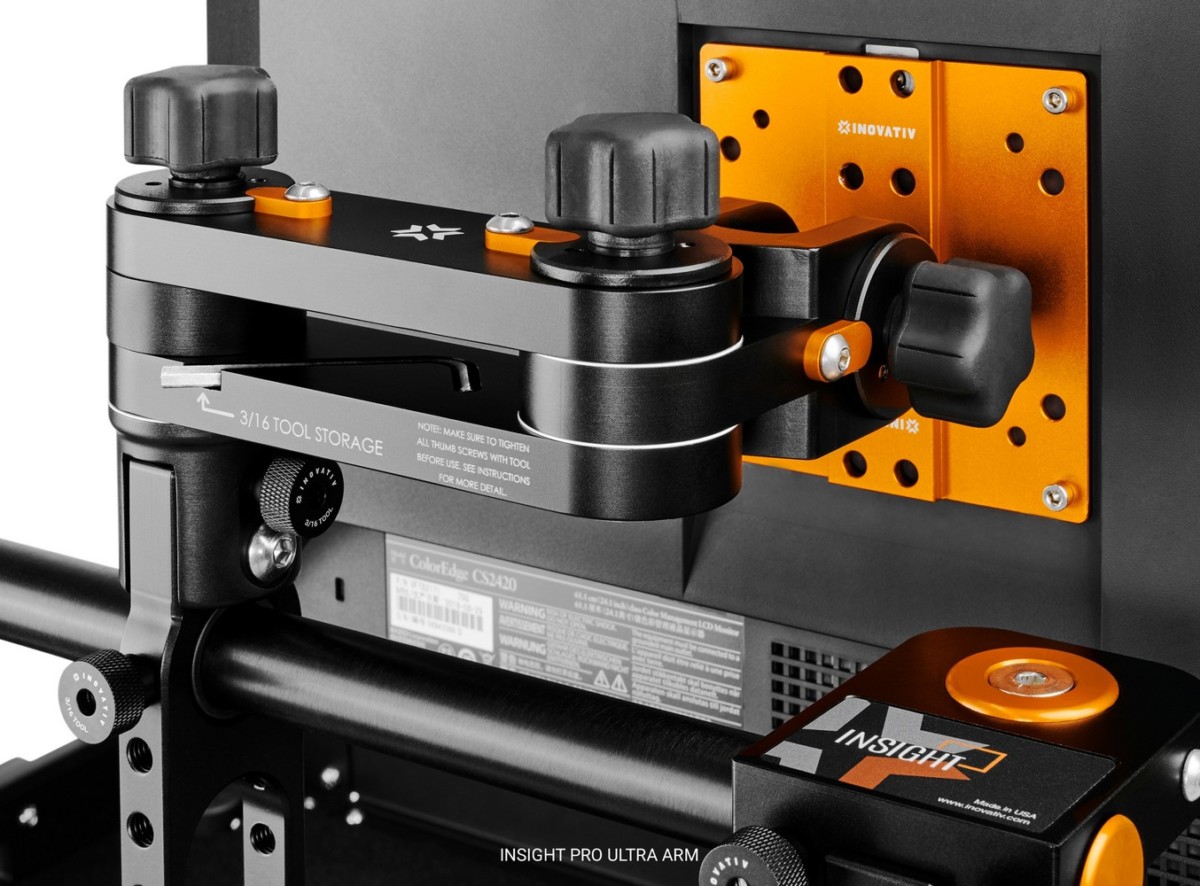

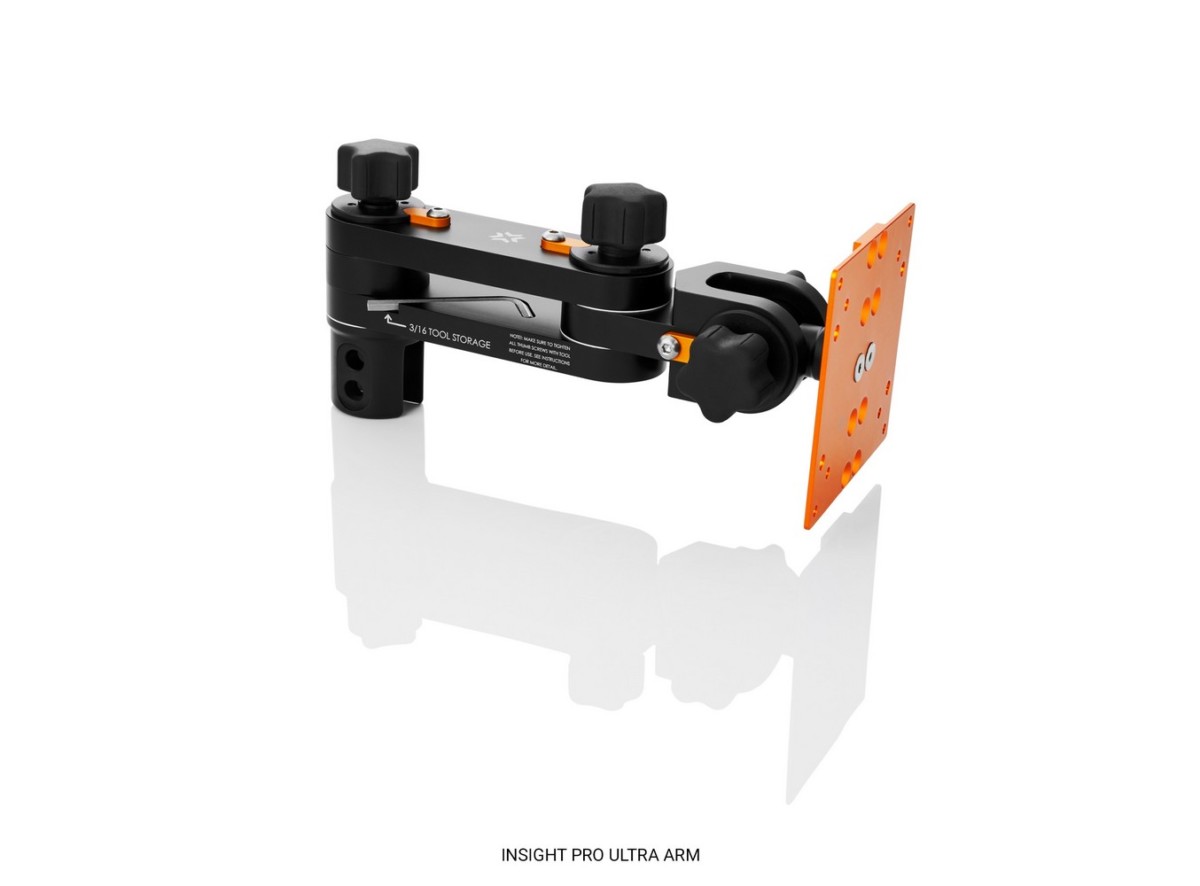

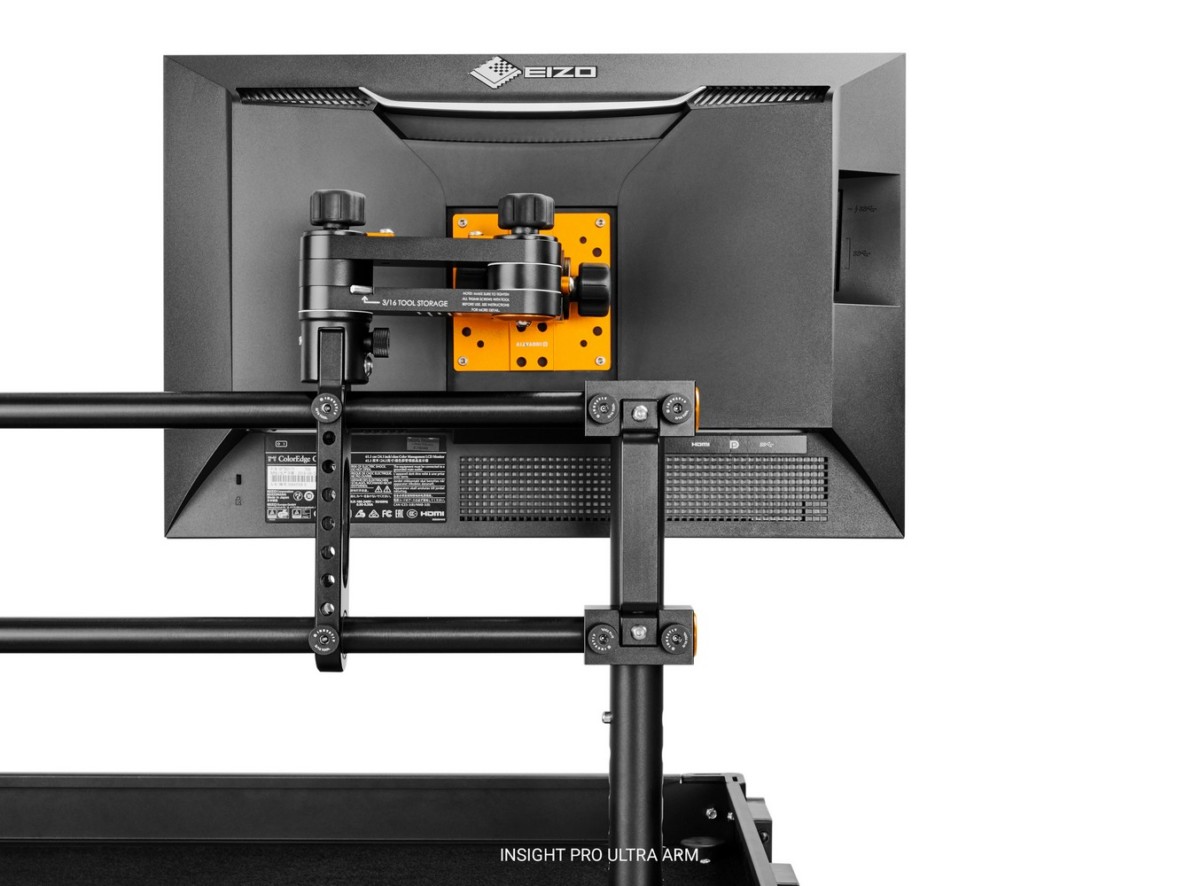

The Insight System is designed to work with INOVATIV’s proprietary Pro Ultra Monitor Arms.  Our Pro Ultra Monitor Arms allow one to adjust the monitor to the ideal height for your viewing while standing or sitting.  Capable of mounting any monitor with a VESA mounting pattern.  The Pro Ultra Arm has 10” of extendable reach along with 60 points of adjustable swing.  The fully lockable articulator arm prevents monitor swinging or rattling when moving your cart during filming or during transportation.

• Kit Includes: Pro Ultra Monitor Arm(s), Pro Vesa Plate, Vesa Pin
• 360° Monitor Rotation:  Allows landscape and portrait viewing (hard lock every 90 degrees).
• Locking Pan: Rosette mounts allow 60 point panning positions.
• Screen Tilt: Adjustable screen tilt 90 degrees down and 90 degrees up (limited by the size of the monitor).
• Monitor Extension: 10 inches of extendable reach.
• Max Weight Capacity: Supports monitors weighing up to 40 lbs.

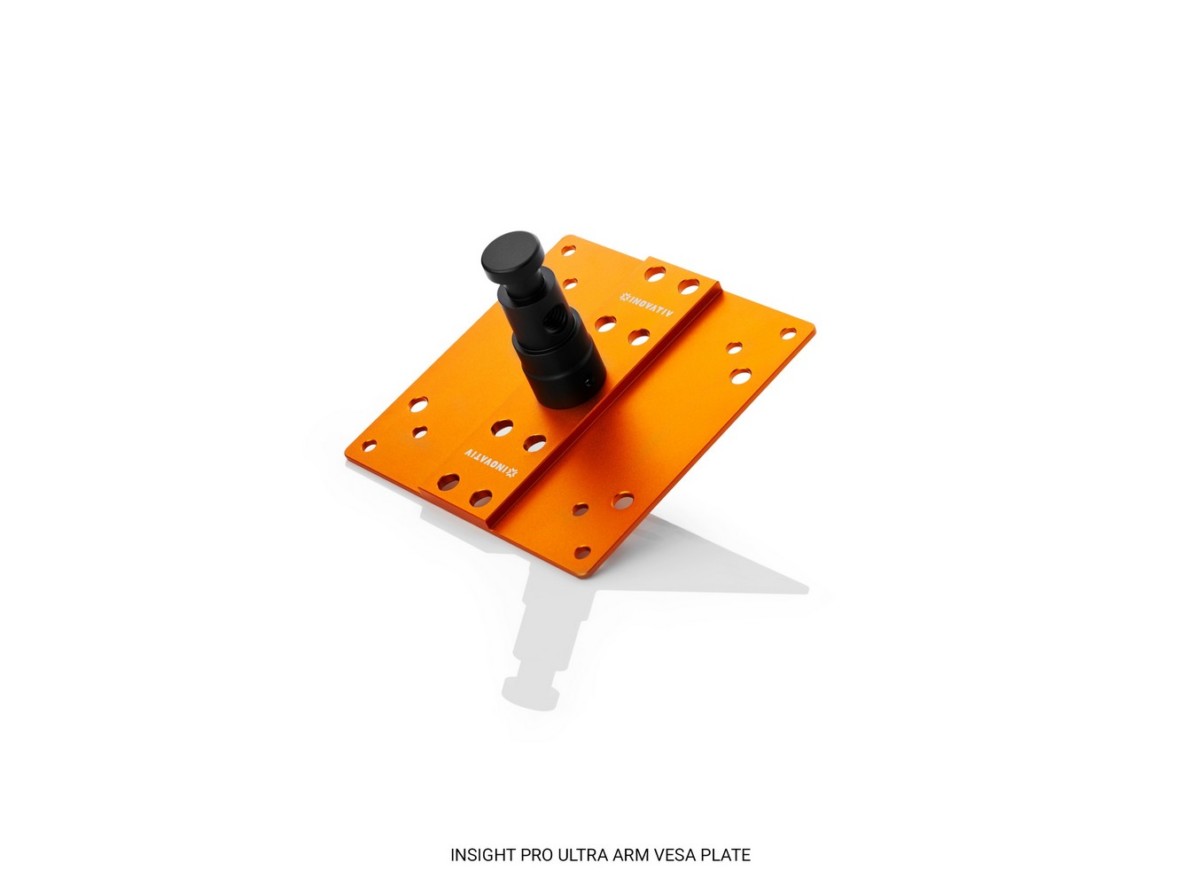

• Vesa Plate: Combines 75mm and 100mm vesa plate into one plate. Adjust your Vesa Plate height in 5 different positions located on the Vesa Plate Pin (each adjustment is 1 inch apart).
• Monitor Height Adjustments: Adjust the height of your monitor in 5 different positions (each adjustment is 2 inches apart).

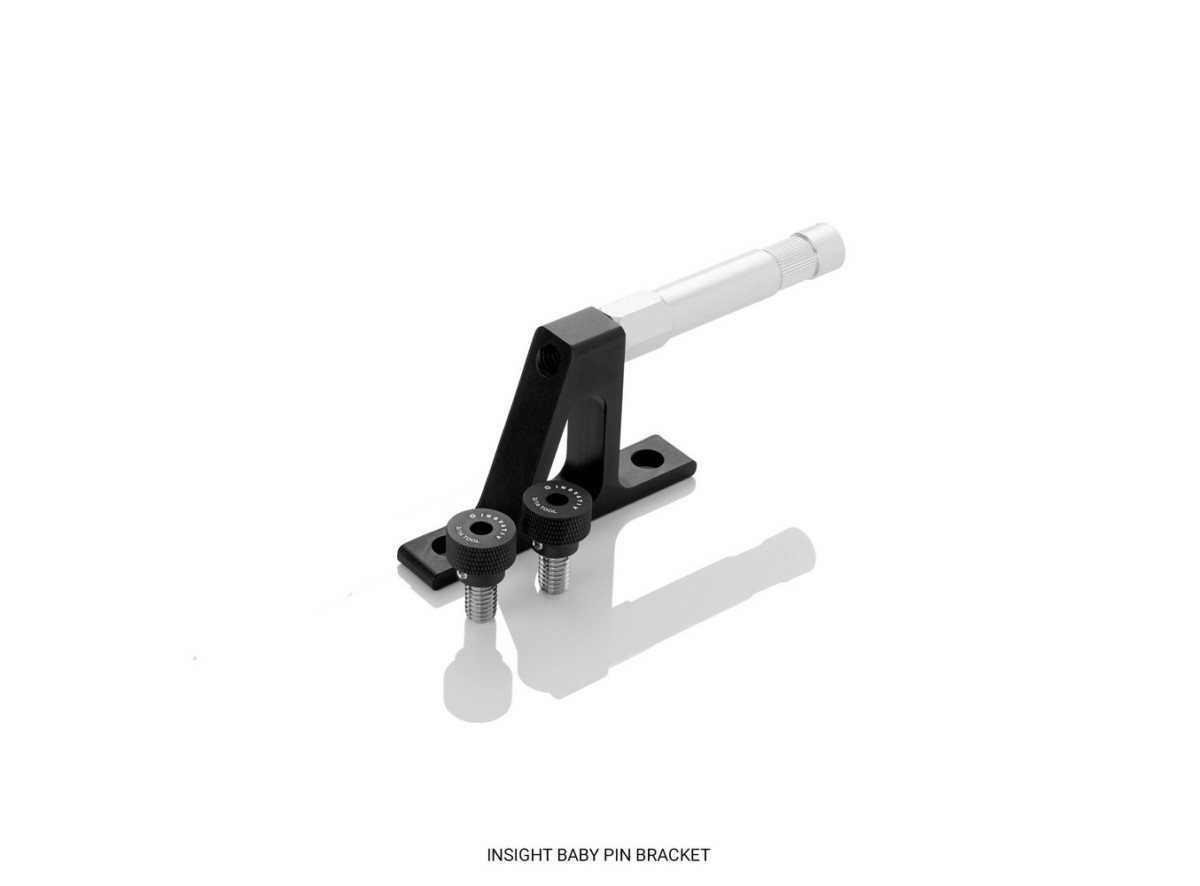

Consider adding an Insight Baby Pin Attachment onto each Pro Ultra Arm.  The Insight Baby Pin Attachment is for attaching wireless receivers, wireless transmitters, antennas and other accessories.
