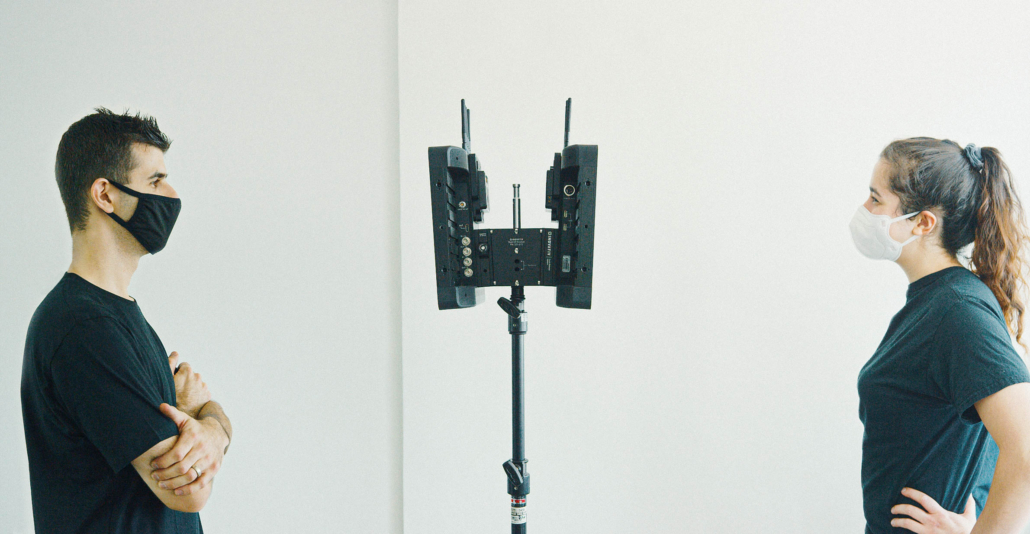

The video below demonstrates the QR System in use with our new Dual QR Bracket, designed to hold two monitors using the QR System. It is perfect for mounting multiple monitors in a compact area providing a safe, distanced viewing area for clients and crew.

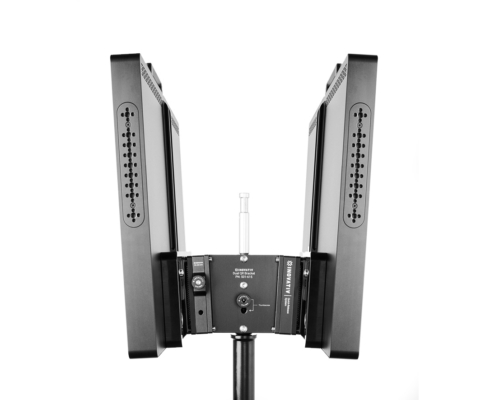

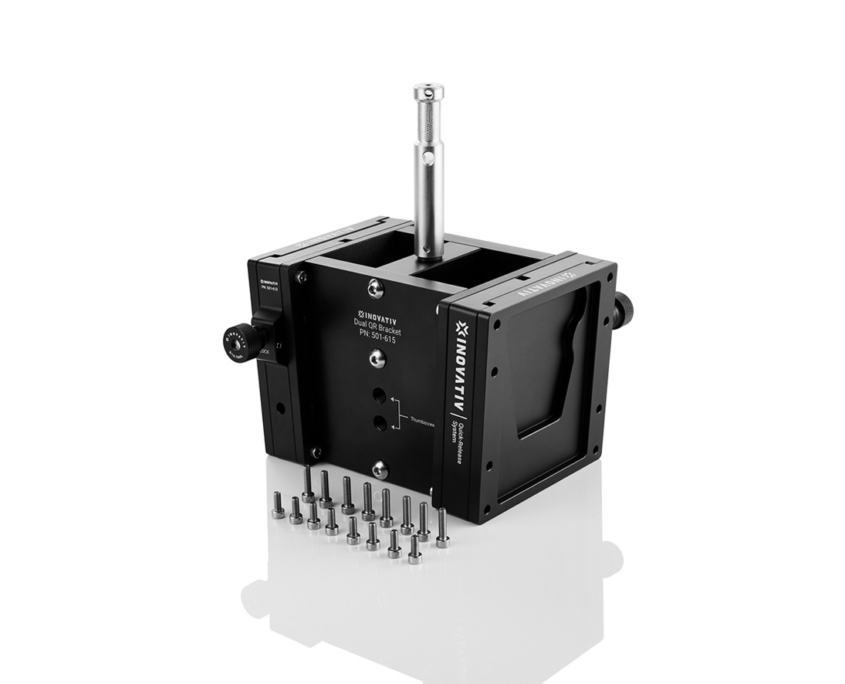

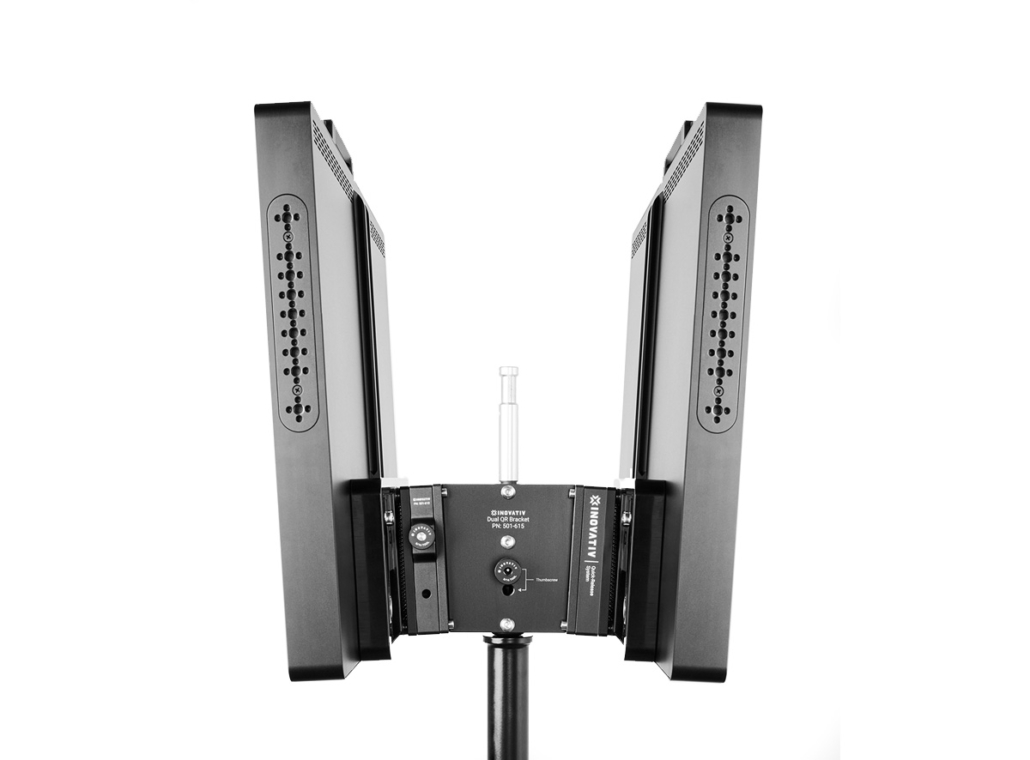

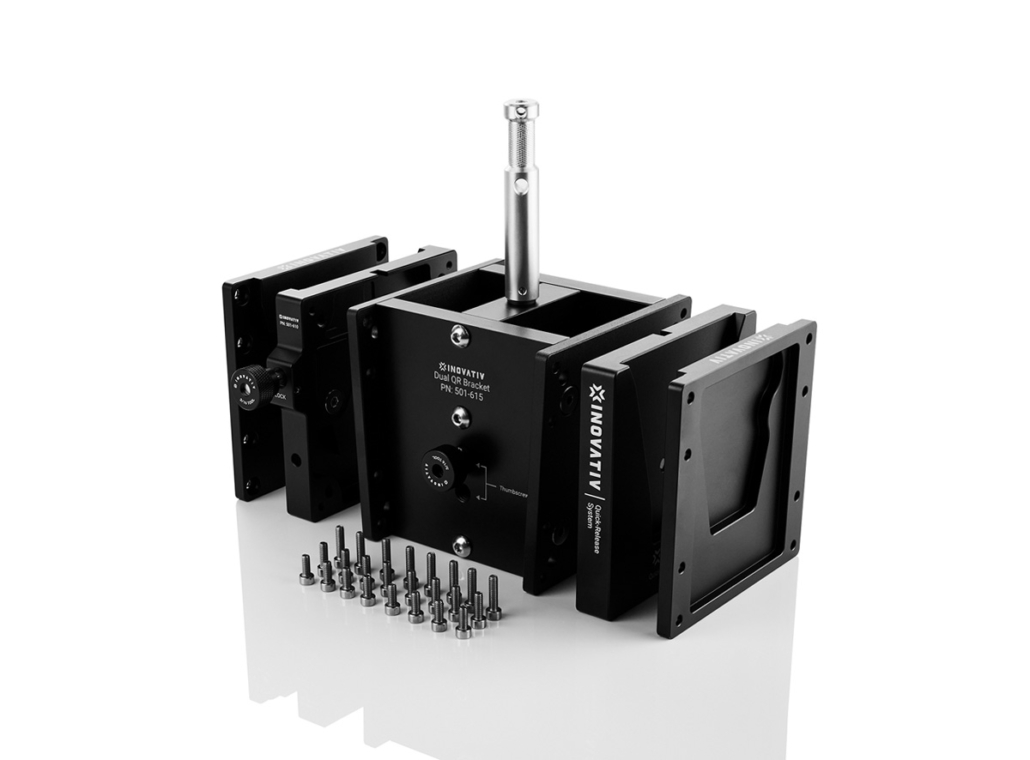

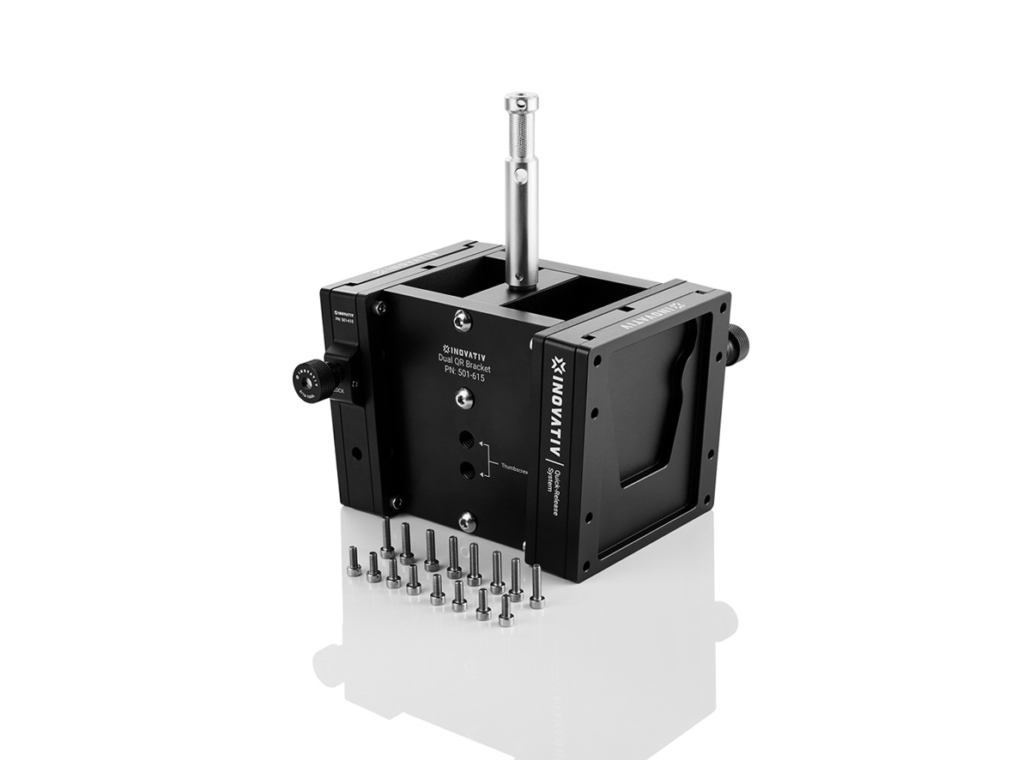

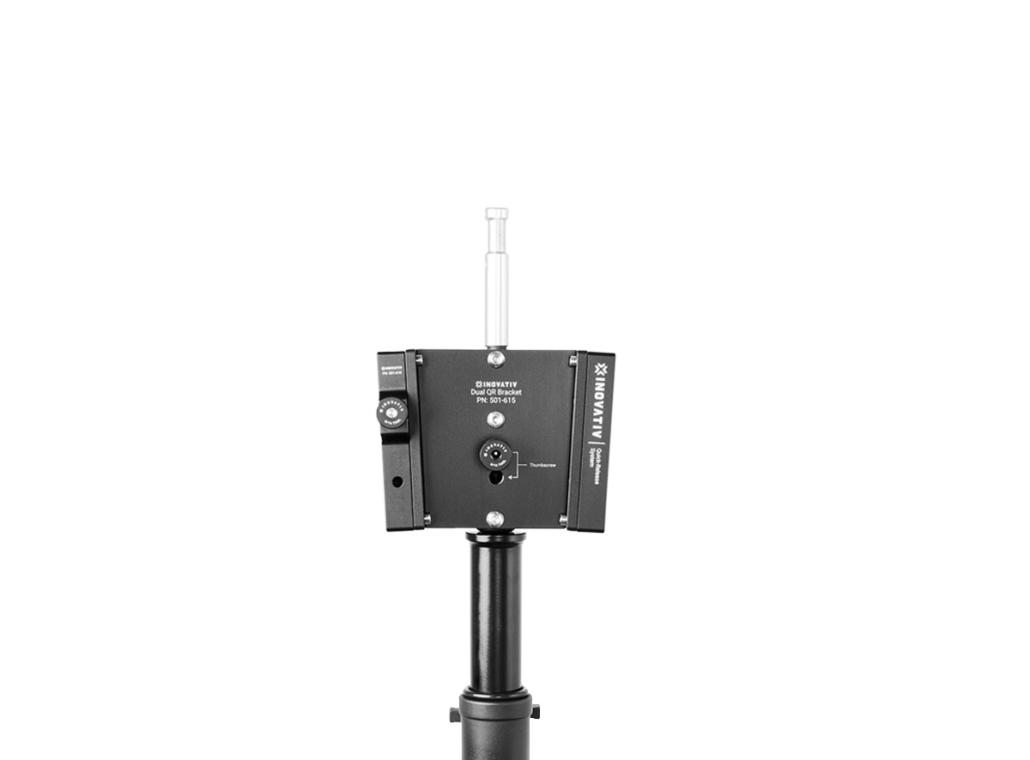

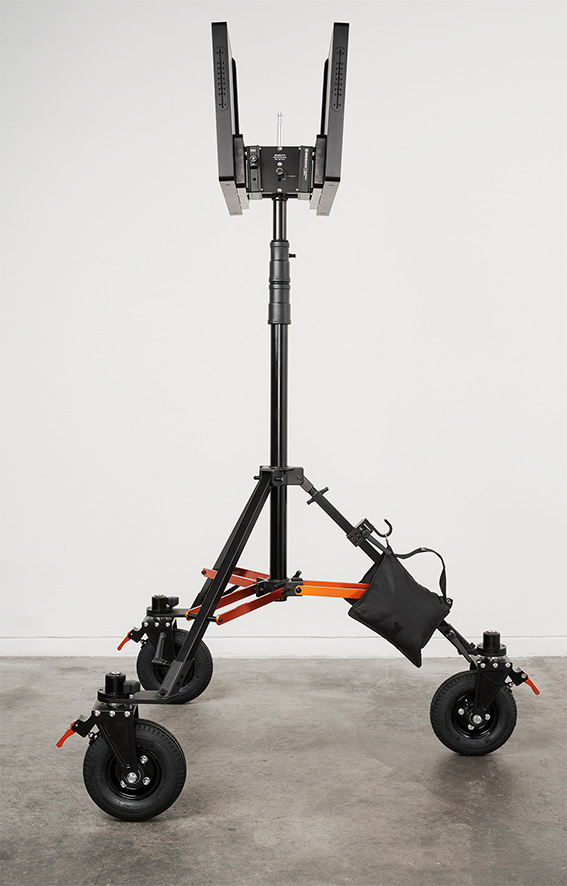

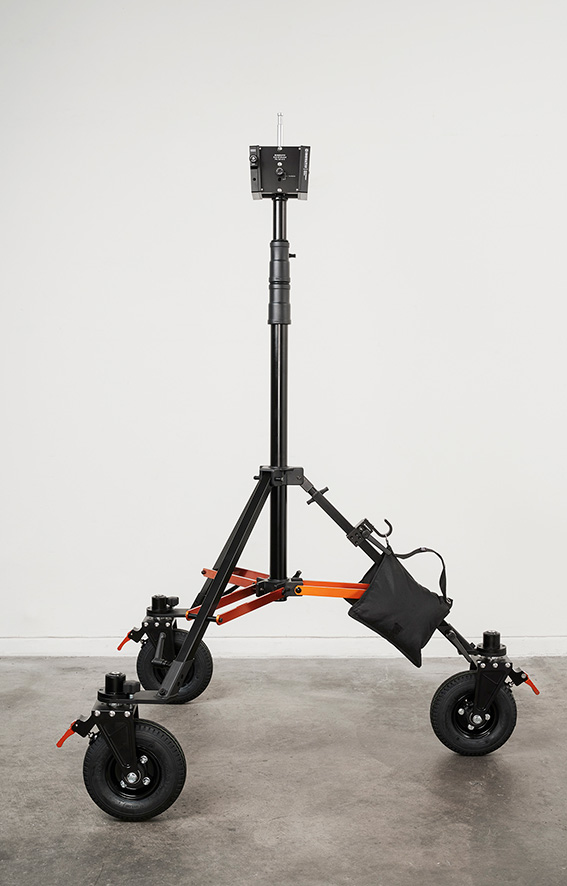

With the Dual QR Bracket, you can connect two QR Systems (two monitors) to a single stand. It has a baby pin receiver in the bottom, with a 3/8-16 threaded hole on top to add a baby pin to it (for mounting receivers). The bracket’s face plates (where the QR’s connect) are tapered by 3 degrees. When monitors are connected and on a stand, at standing height the monitors will tilt down just slightly so that they are in line with your eye sight, ideal for social distancing. Locking thumb screws secure monitors in place.
Additional information
Weight | 4 lbs |
---|---|
Dimensions | 10 × 9 × 7 in |
Options | DUAL QR SYSTEM |
Whats in the Box? | DUAL QR SYSTEM |

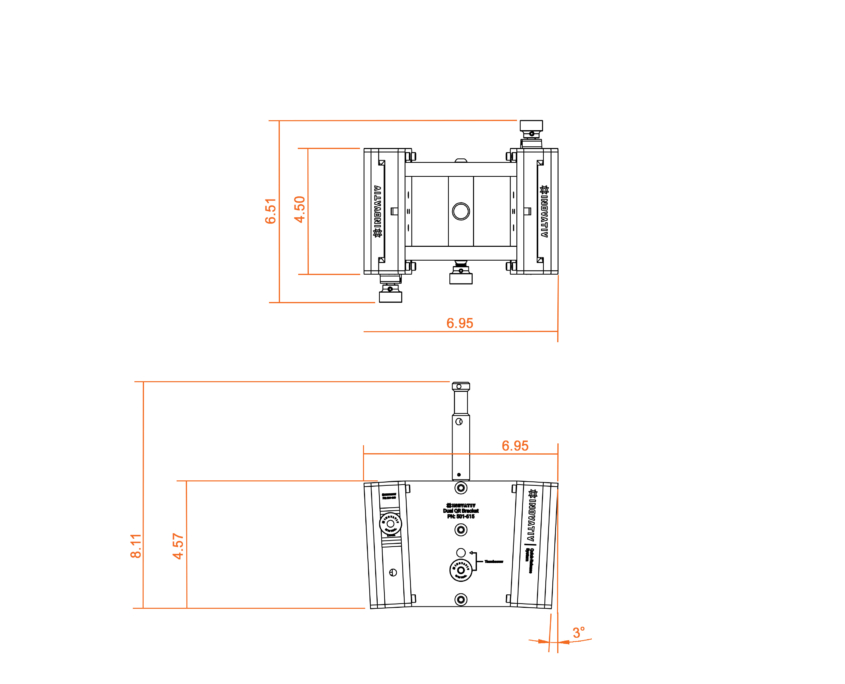

Product Dimensions | 6.95" W x 4.5" L x 8.11" H |
Materials | 6061 T6 Aluminum, Stainless Steel Hardware, Black Anodized with INOVATIV's Triple Anodize 8625 Mil-Spec Process. |
