Provides the Ultimate Stability, Strength & Flexibility
Monitor mounting at its finest

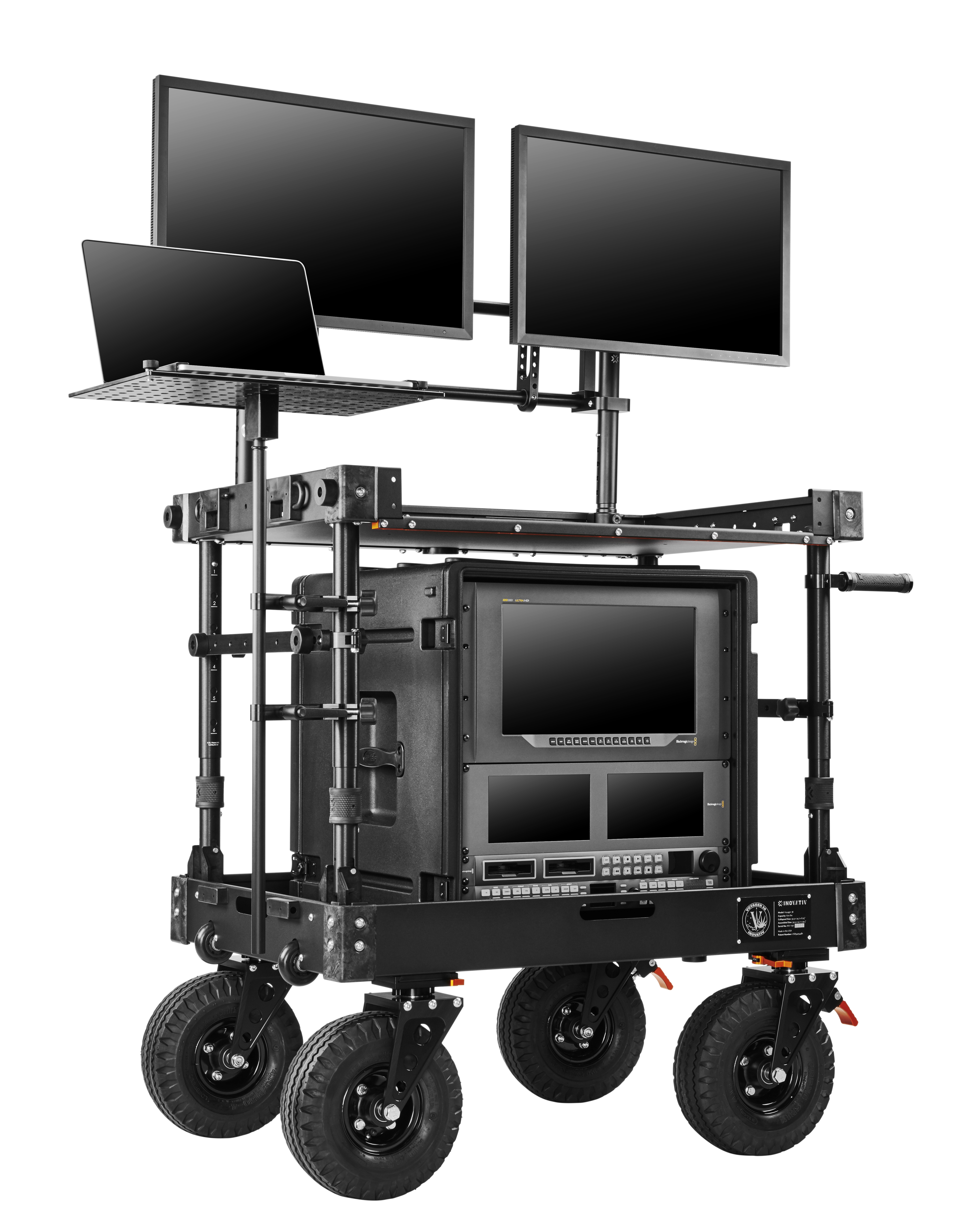

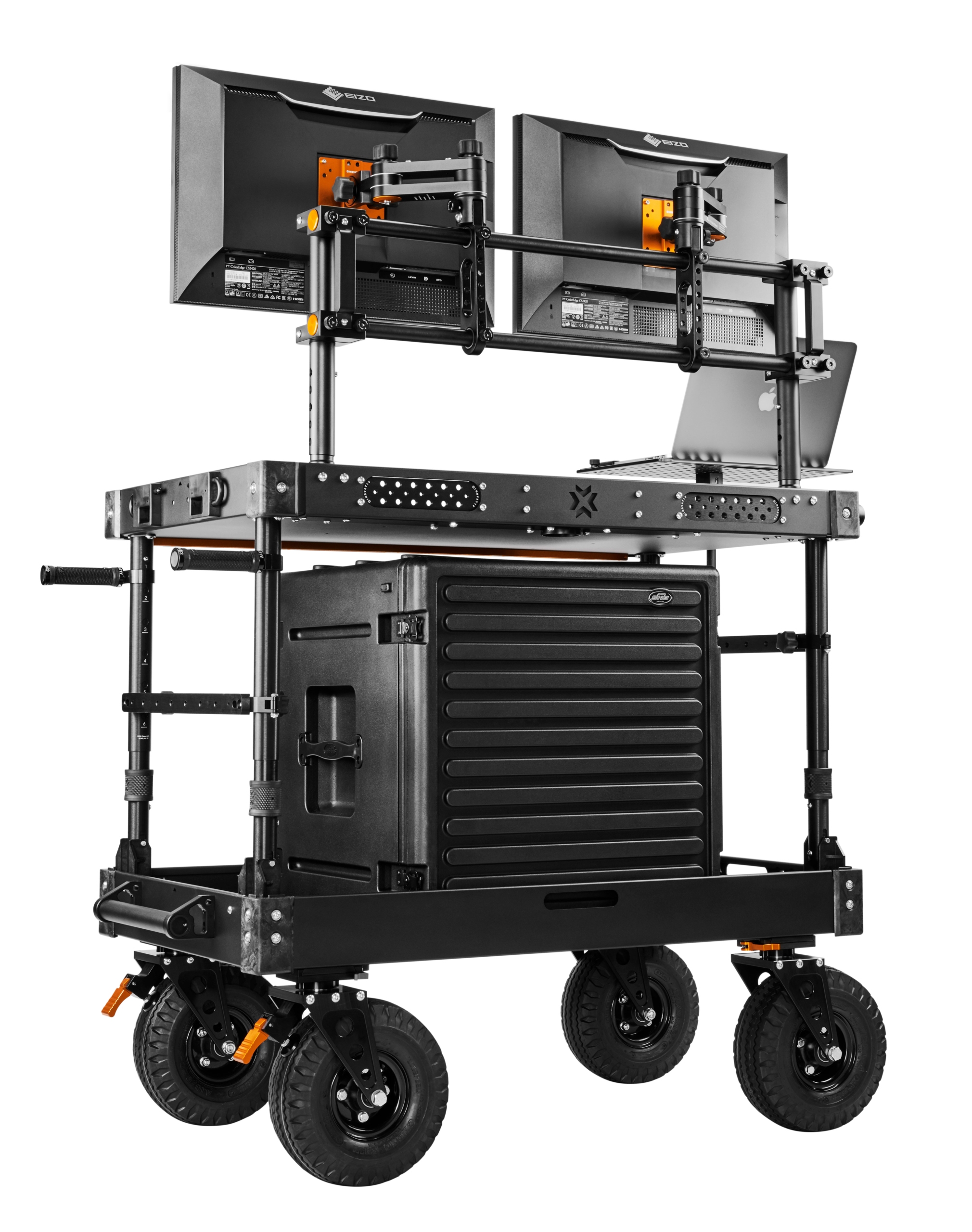

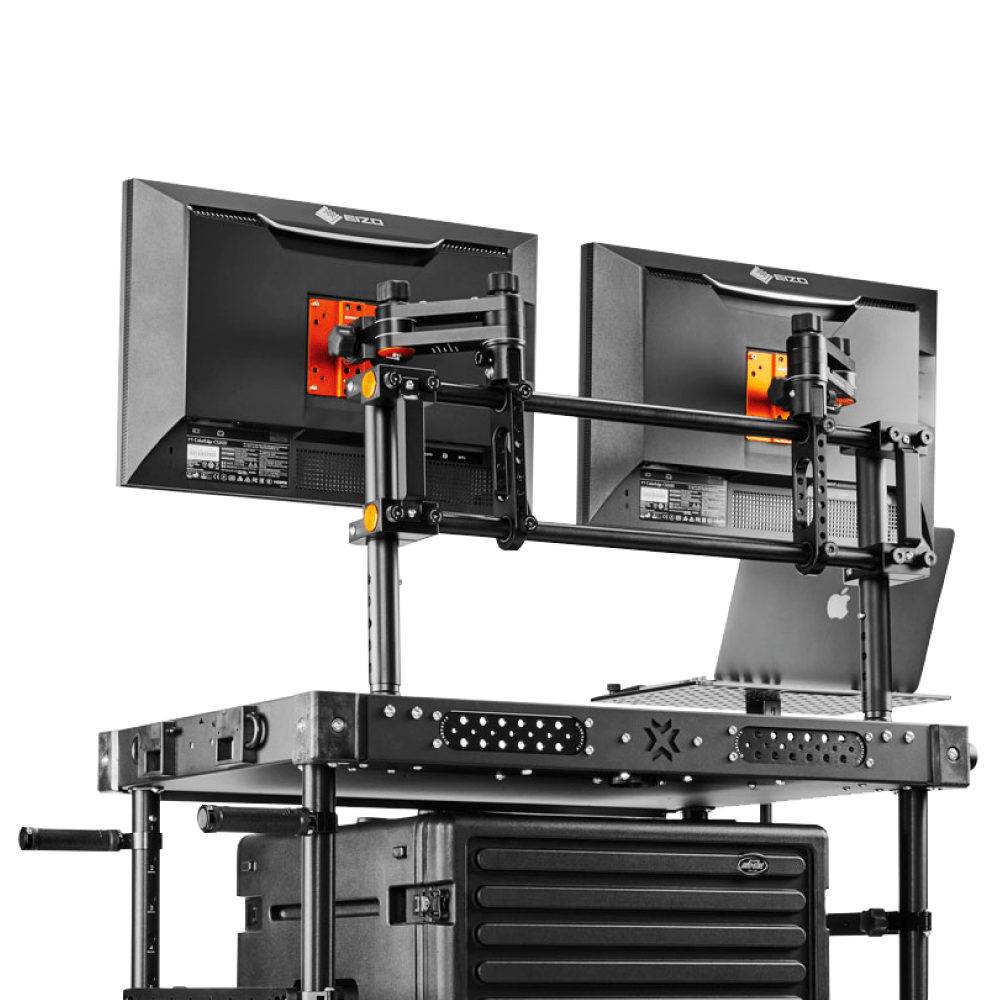

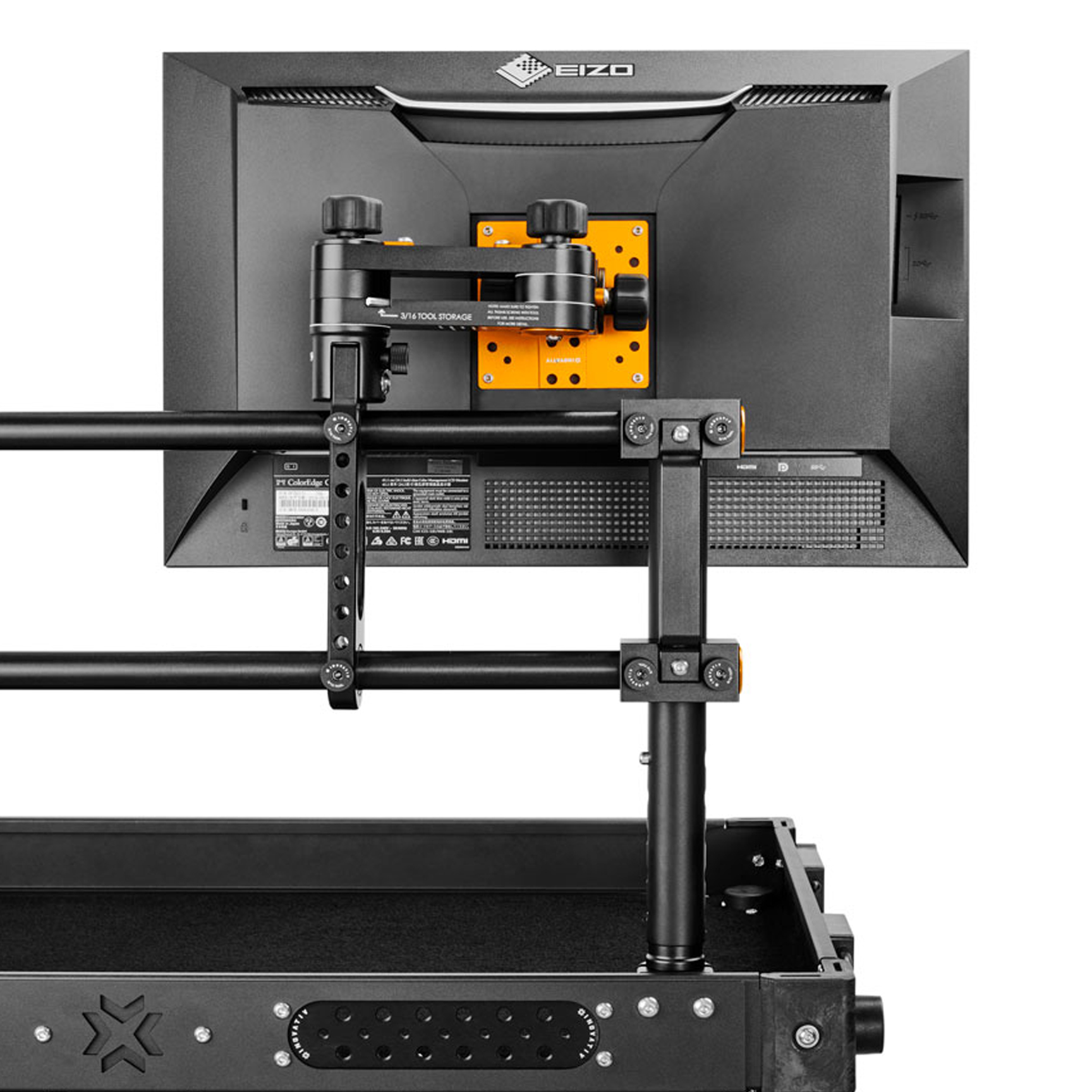

The Insight Monitor Mounting System is the most stable solution for attaching multiple monitors to your workstation. Its newly updated design allows for usability throughout INOVATIV’s line of workstations to enhance your workflow, no matter which cart you have.
Stability – have confidence in knowing your monitors won’t rattle or move during transit.
Strength – Designed to securely hold 2-3 monitors.
Flexibility – Provides you with the ability to configure your workstation the way you see fit.
Now available for Apollo, Deploy, Echo, Ranger and Voyager carts.
360° Monitor Rotation
Allows landscape and portrait viewing (hard lock every 90 degrees).

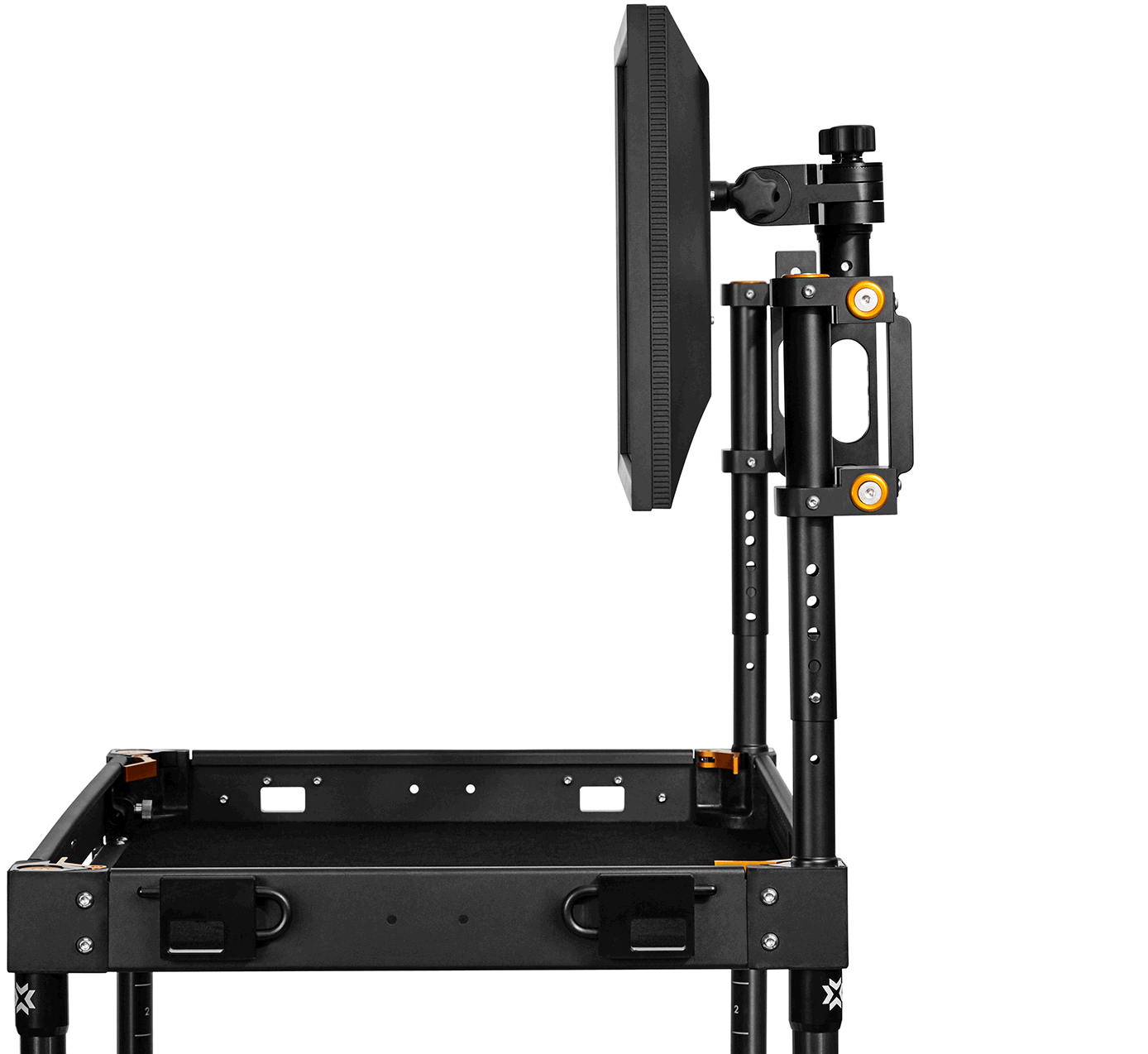

Adjust Monitor Height to your Ideal Standing or Sitting Position
Adjust the height of your monitor in 5 different positions (each adjustment is 2” apart).
Screen Tilt for your Viewing Pleasure
Adjustable screen tilt 90 degrees down and up (limited by the size of the monitor).
Extend Your Monitor
10 inches of extendable reach to allow you to view comfortably.
Locking Pan
Rosette mounts allow for 60 point panning positions.
Attach Our Proprietary Pro Ultra Monitor Arms

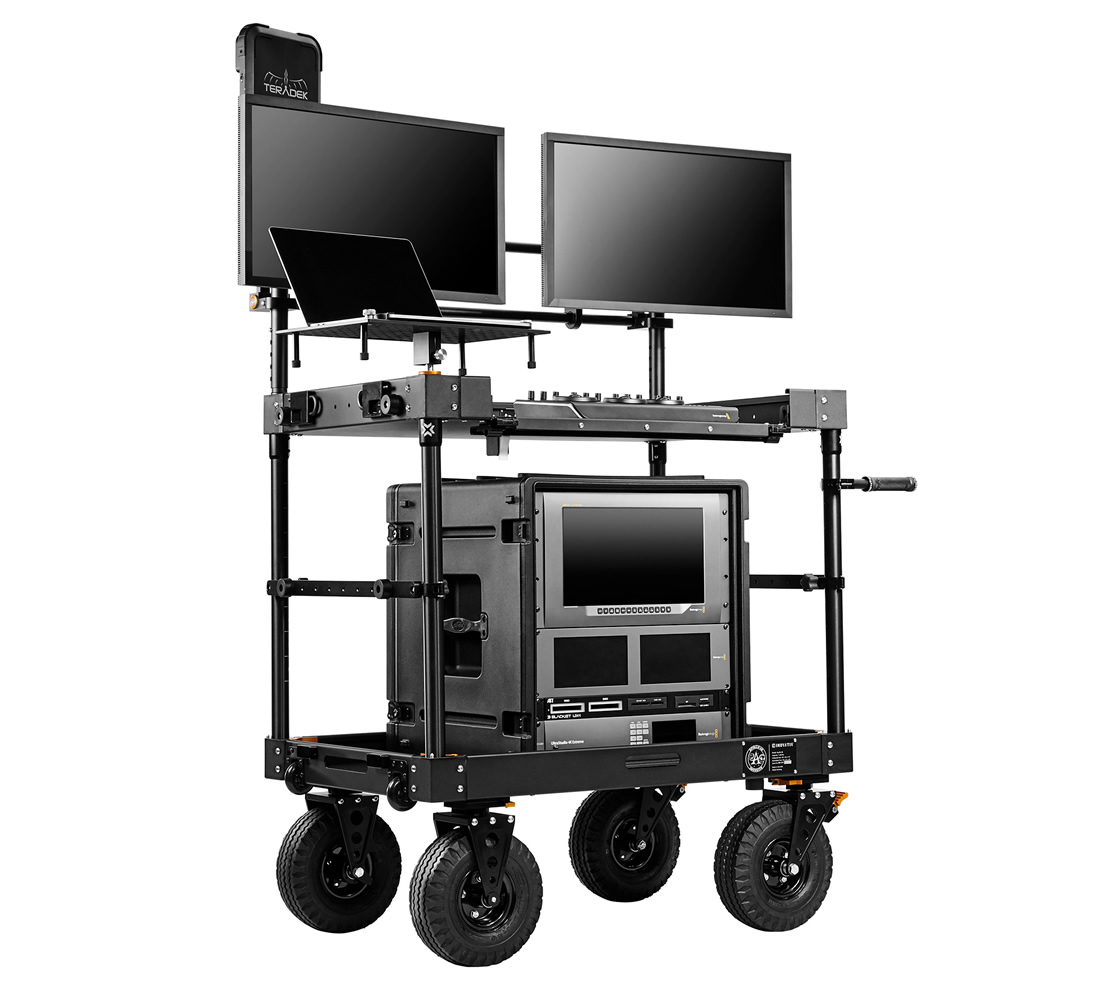

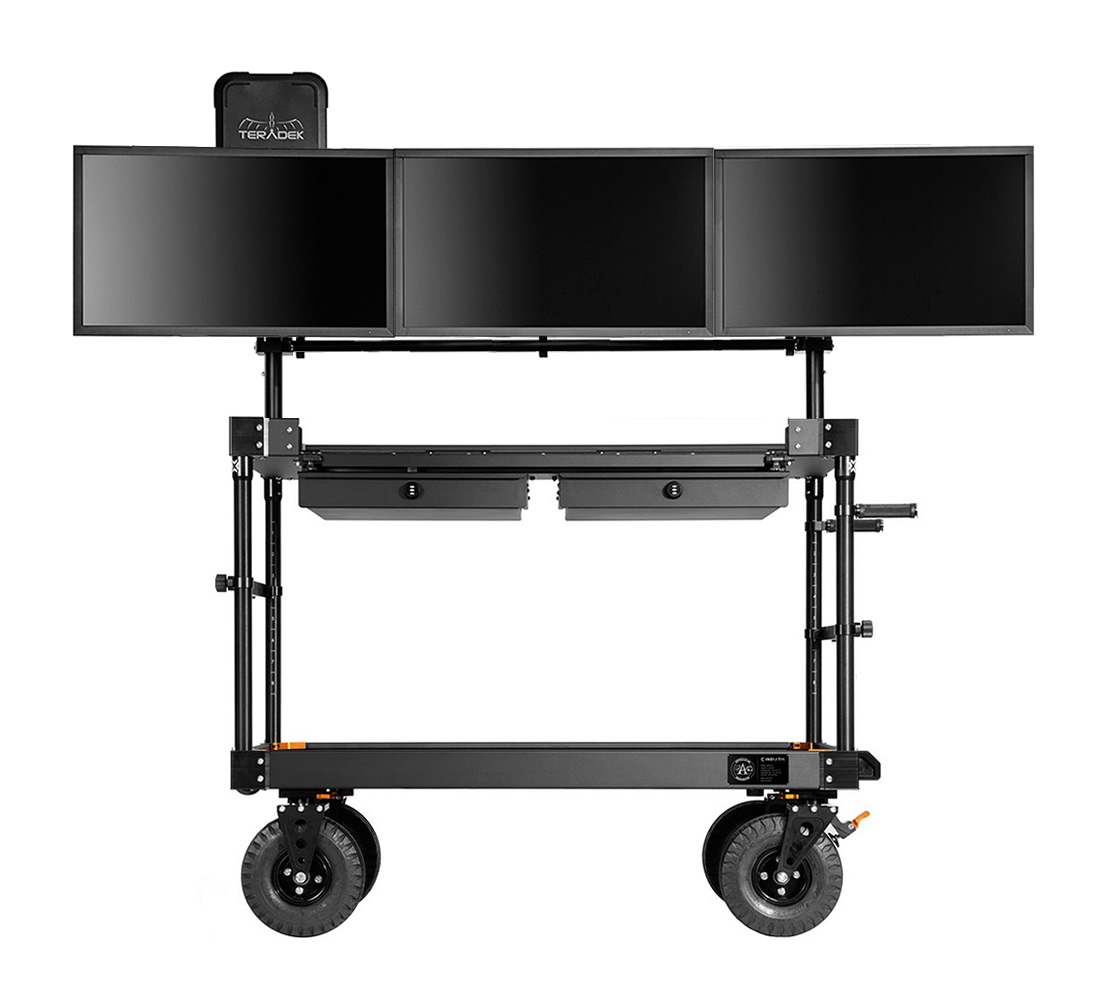

Utilize up to 2-3 monitors on your INOVATIV cart (dependent on model and size)
Now available for Apollo, Deploy, Echo, Ranger and Voyager carts.

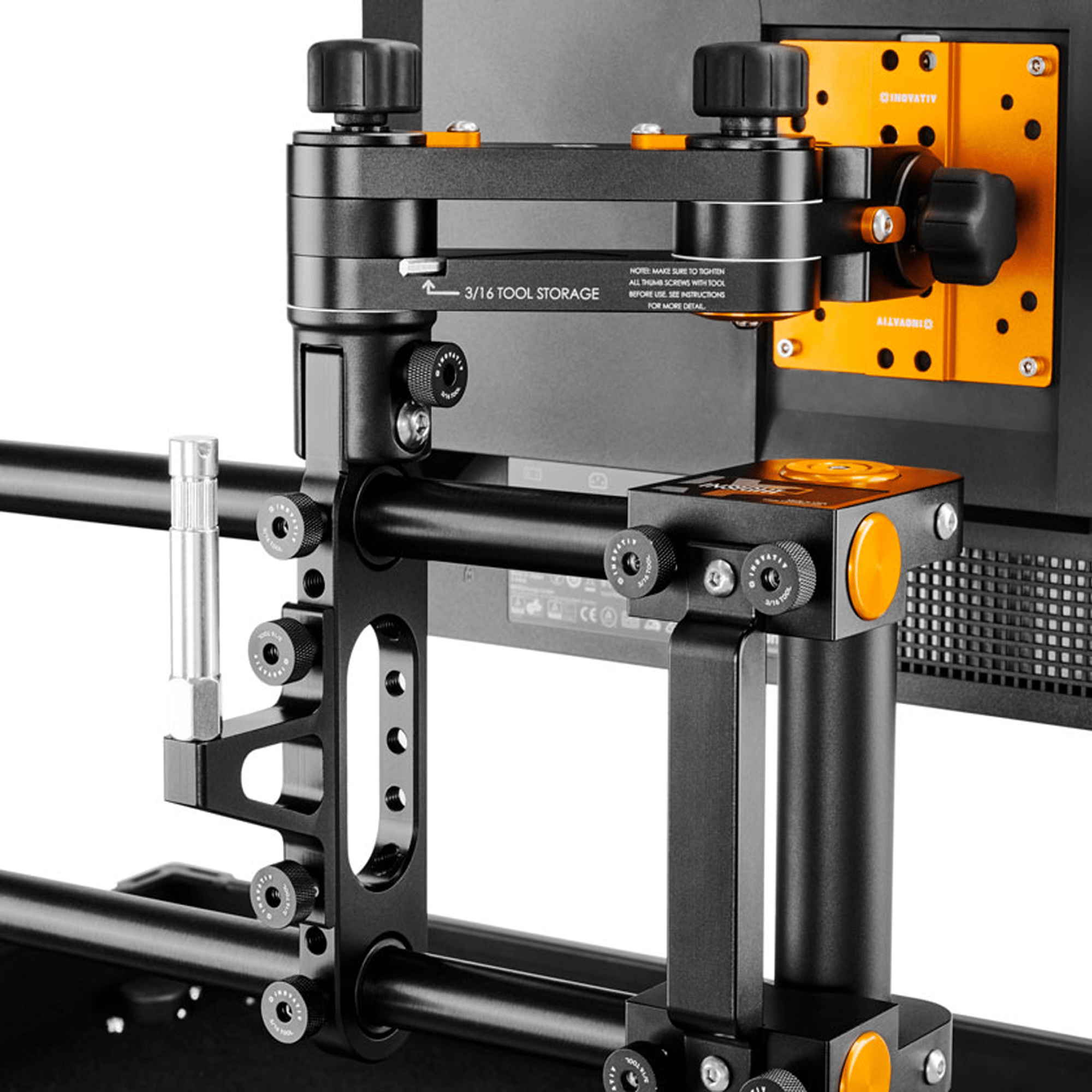

Utilize a monitor and receiver on the same joint
A Pro Ultra Monitor Arm and Baby Pin Bracket with Pin can be utilized together to hold a monitor and anything you’d like to attach to a baby pin (ex. wireless receivers or transmitters).
Combines a 75mm and 100mm vesa plate into one plate. Vesa Plate height may be adjusted on 5 mounting locations on the Vesa Plate Pin. Each height adjustment is 1″ apart.
Constructed of premium 5052 and 6061 aluminum and stainless steel hardware. Durable finish and seal for long term use and smooth operation.
Insight System allows two monitor mounting options:

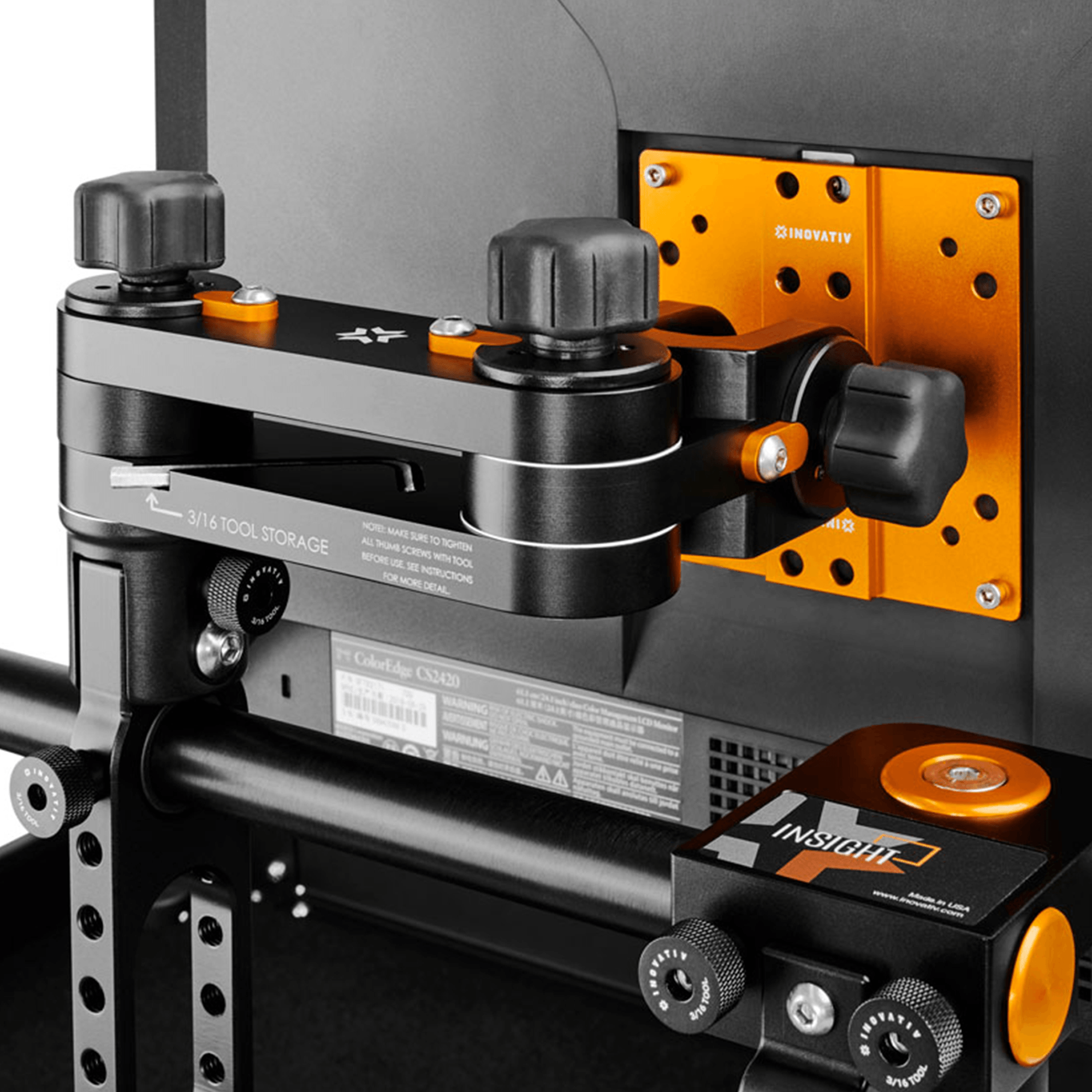

Pro Ultra Monitor Arm (Recommended)
The Insight System is designed to work with INOVATIV’s proprietary Pro Ultra Monitor Arms. Our Pro Ultra Monitor Arms allow one to adjust the monitor to the ideal height for your viewing while standing or sitting. Capable of mounting any monitor with a VESA mounting pattern. The Pro Ultra Arm has 10” of extendable reach along with 60 points of adjustable swing. The fully lockable articulator arm prevents monitor swinging or rattling when moving your cart during filming or transporting.
- Kit Includes: Pro Ultra Monitor Arm, Pro Vesa Plate, Vesa Pin
- 360° Monitor Rotation: Allows landscape and portrait viewing (hard lock every 90 degrees).
- Locking Pan: Rosette mounts allow 60 point panning positions.
- Screen Tilt: Adjustable screen tilt 90 degrees down and 90 degrees up (limited by the size of the monitor).
- Monitor Extension: 10 inches of extendable reach.
- Max Weight Capacity: Supports monitors weighing up to 40 lbs.

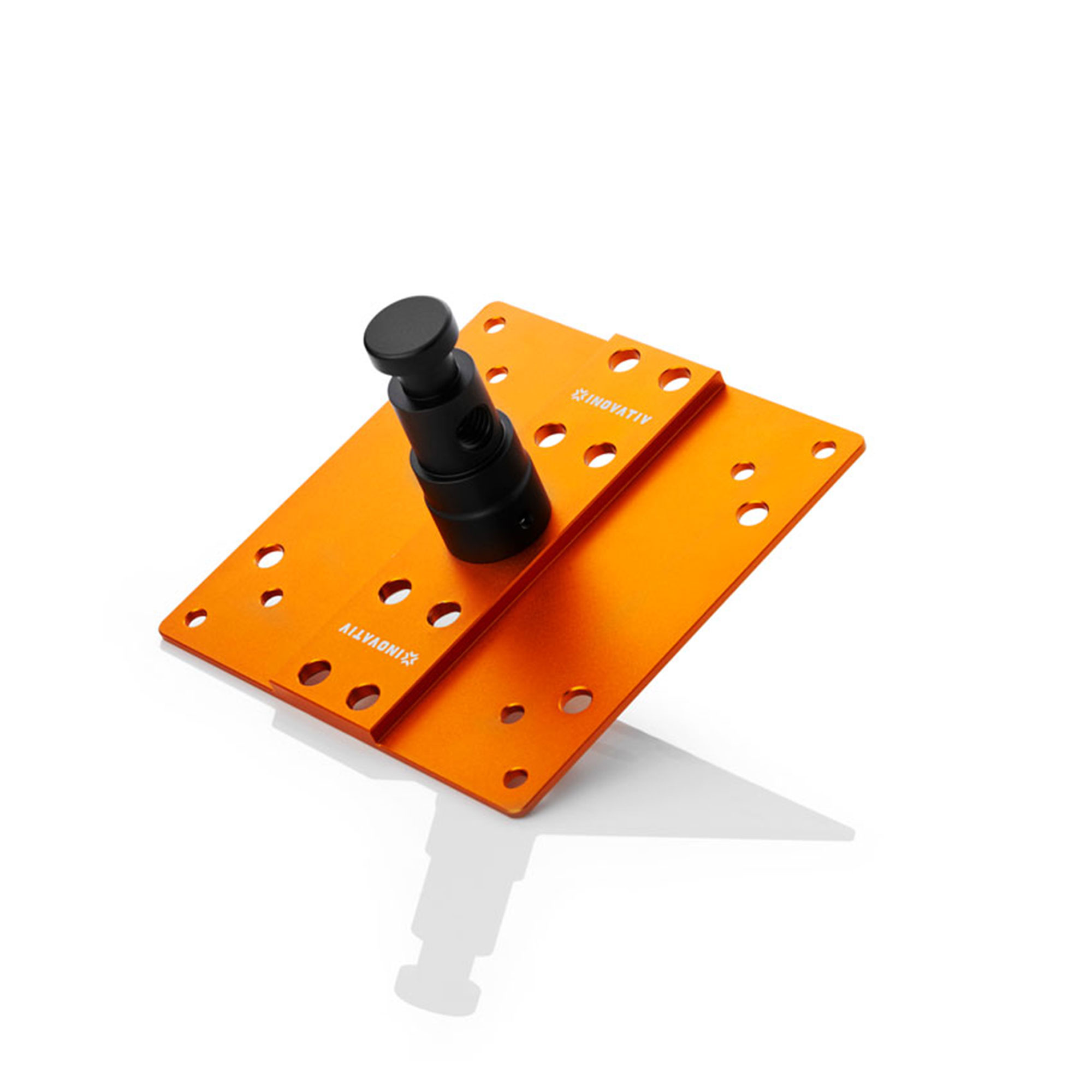

- Vesa Plate: Combines 75mm and 100mm vesa plate into one plate. Adjust your Vesa Plate height in 5 different positions located on the Vesa Plate Pin (each adjustment is 1 inch apart).
- The Insight’s Baby Pin Attachment is designed to work your own VESA Plate (with a Baby Pin receiver) and Monitor. If you are looking for the most stable solution, we recommend the Pro Ultra Monitor Arm.
- You may also utilize Insight’s Baby Pin Attachment for attaching wireless receivers, wireless transmitters, antennas and other accessories that connect to a baby pin. A popular combination is to attach to the System Bracket the Insight’s Baby Pin Attachment and Pro Ultra Monitor Arm so you can support both a monitor and a wireless receiver on the same System Bracket.
