CART WORKSTATION COMPARISON
We take pride in building the most advanced carts on the market to provide you with: equipment attachment flexibility, ease of travel and protection of your investment.

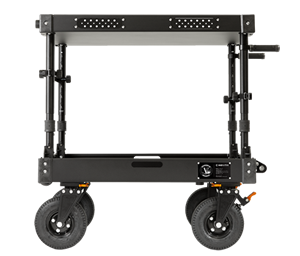

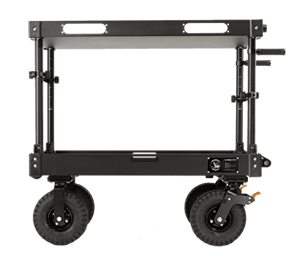

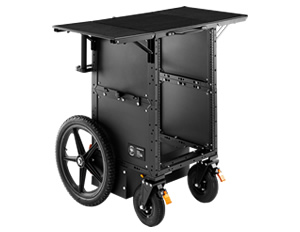

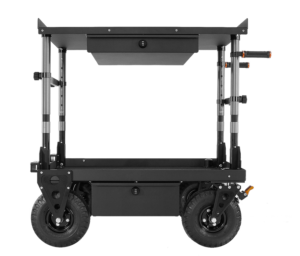

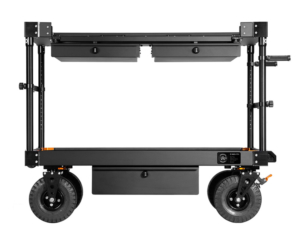

| Apollo | Voyager EVO | Voyager NXT | Deploy | Echo | |
|---|---|---|---|---|---|
| Design |  |  |  |  |  |
| Type | INOVATIV’s Heavy-Duty workstation, ready for the most demanding needs for on-location work in rugged locations. | INOVATIV’s most agile workstation perfect for traveling creative professionals. | INOVATIV’s most affordable production workstation. | INOVATIV’s most technical workstation, for those seeking rack-mount vertical workstations. | INOVATIV’s most stable workstation, ideal for in-studio workflows. |
| Models | Apollo 40 Apollo 52 | Voyager 30 EVO Voyager 36 EVO Voyager 42 EVO | Voyager 36 NXT Voyager 42 NXT | Deploy | Echo 36 Echo 48 |
| Starting Price | $4299 | $3399 | $2699 | $3499 | $4199 |
| Midsize Payload Capacity: | Apollo 40: 1,200 lb Apollo 52: 1,200 lb | Voyager 30 EVO: 400 lb Voyager 36 EVO: 600 lb Voyager 42 EVO: 600 lb | Voyager 36 NXT: 600 lb Voyager 42 NXT: 600 lb | Deploy: 600 lb | Echo 36: 1,000 lb Echo 48: 1,000 lb |
| Portability | Packs down to slim 7.5″ thick flight ready travel case (thickness dependent on model) | Packs down to slim 8.25″ thick flight ready travel case. | Packs down to slim 8.25″ thick flight ready travel case. | Foldable Side-Wings | Semi-packable, Wheels not removable. |
| Overall Dimensions | Apollo 40 Packed: 26″W x 40″L x 7.5”H Built: 26″W x 40″L x 40”H” Apollo 52 | Voyager 30 EVO: Packed: 34”W x 21”L x 8.25”H Built: 34”W x 21”L x 40”H (Height Adjustable) Voyager 36 EVO: Built: 25”W x 40”L x 41”H Voyager 42 EVO: (Length Dimensions include easy roll handle) | Voyager 36 NXT:
Packed: 25”W x 40”L x 8.25”H Voyager 42 NXT: Packed: 25”W x 46”L x 8.25”H (Outer Dimensions include handle) | Deploy Packed: 21.25″W X 21″L x 40″H Built: 21.25″W x 45″L x 40”H | Echo 36 Packed: 24″W x 36″L x 22.75″H Built: 24″W x 36″L x 39″H Echo 48 |
| Shelf Dimensions: | Apollo 40:
Top Shelf: 20″W x 33.5″L Bottom Shelf: 20″W x 36.75″ Apollo 52: Top Shelf: 20″W x 45.75″L Bottom Shelf: 20″W x 45.75″L | Voyager 30: Top Shelf: Bottom Shelf: Voyager 36 Bottom Shelf: 24”W x 32”L Bottom Shelf: 35”W x 23.25”L | Voyager 36:
Top Shelf: 24”W x 32”L Bottom Shelf: 24”W x 32”L Voyager 42 Top Shelf: | Wings Folded: 21.25″W x 21″L
Wings Extended: 21.25″W x 45″L | Echo 36
Top Shelf: 24″W x 35.75″L Bottom Shelf: 24″ W x 30″L Echo 48 Top Shelf: 24″W x 47.75″L Bottom Shelf: 24″W x 42″L |
| Weight | Apollo 40: 108 lb (48.99 kg) Apollo 52: 126.5 lb (57.38 kg) | Voyager 30 EVO: 62.5 lb (27.9 kg) Voyager 36 EVO: 79 lb (31.75 kg) Voyager 42 EVO: 82.5 lb (36.74 kg) | Voyager 36 NXT: 85 lb (38.56 kg) Voyager 42 NXT: 89.5 lb (42.18 kg) | Deploy: 91 lbs (41.28 kg) | Echo 36: 93lb (42.18 kg) Echo 48: 115lb (52.16 kg) |
| Assembly | Fully Adjustable & Tool-Free Design | Fully Adjustable & Tool-Free Design | Fully Adjustable & Tool-Free Design | Fully Adjustable & Tool-Free Design | Fully Adjustable & Tool-Free Design |
| Avg. Assembly Time | 4 – 5 minutes | 2 minutes or less | 2 minutes or less | 30 seconds or less | 30 seconds or less |
| Braking System | INOVATIV’s Premium Foot Brake System | INOVATIV’s Premium Foot Brake System | INOVATIV’s Premium Foot Brake System | INOVATIV’s Premium Foot Brake System | INOVATIV’s Premium Foot Brake System Hydraulic Hand Brake System (optional) |
| Drawers | Optional locking Top and Bottom Drawer | Optional locking top and bottom Drawer | Optional locking top and bottom Drawer | Optional locking bottom drawer | Locking Top and Bottom drawers come standard |
| Top Shelf | Swinging Foldable top shelf lip with lock | 10″ of top shelf height adjustment in 2″ increments X-Top Option with Folded Lip for Keyboard | Not height adjustable. X-Top Option with Folded Lip for Keyboard | Folding Side Wings | 10″ of top shelf height adjustment in 2″ increments |
| Height between the top and bottom shelf in HIGHEST setting when assembled | N/A | 35″ | 25″ | Not Adjustable Height | 31.75″ |
| Height between the top and bottom shelf in LOWEST setting when assembled | 24.5″ | 25″ | 25″ | N/A | 21.75″ |
| Upright Posts | Lock in place and will not loosen over time | Lock in place and will not loosen over time | Lock in place and will not loosen over time | N/A | Lock in place and will not loosen over time |
| Handles | Includes: Overtube Quick Grips and adjustable for leverage on slopes | Includes: Standard Quick Grips – adjustable for leverage on slopes | Includes: Standard Quick Grips – adjustable for leverage on slopes | Includes: Built in Handle Bars Add-on: Load Handles and Overtube Quick Grips | Includes: Standard Quick Grips – adjustable for leverage on slopes |
| Wheels | Apollo 40 EVO: 10″ EVO Wheels Apollo 52 EVO: 10″ EVO Wheels All tires are pneumatic (air-filled) | Voyager 30 EVO: 8″ EVO Wheels Voyager 36 EVO: 10″ EVO Wheels Voyager 42 EVO: 10″ EVO Wheels All tires are pneumatic (air-filled) | Voyager 36 NXT: 10″ NXT Wheels Voyager 42 NXT: 10″ NXT Wheels All tires are pneumatic (air-filled) | Deploy: 8″ EVO Wheels and 20″ Rear Wheels Wheels.
All tires are pneumatic (air-filled) | Echo 36: 10″ EVO Wheels Echo 48: 10″ EVO Wheels All tires are pneumatic (air-filled) |
| Tool-Free Removable Wheels | Yes | Yes | Yes | No | No |
| Wheel Bearings | Premium EVO Wheels: 100% sealed bearing wheels that are extremely quiet, precise and easy to roll | Premium EVO Wheels: 100% sealed bearing wheels that are extremely quiet, precise and easy to roll | Standard NXT Wheels: Cup Ball Bearings | Premium EVO Wheels: 100% sealed bearing wheels that are extremely quiet, precise and easy to roll. 20″ Rear Wheels: | Premium EVO Wheels: 100% sealed bearing wheels that are extremely quiet, precise and easy to roll. |
| Hardware | Constructed of premium 5052 and 6061 T6 aluminum and stainless steel hardware | Constructed of premium 5052 and 6061 aluminum and stainless steel hardware | Constructed of premium 5052 and 6061 aluminum and stainless steel hardware | Constructed of premium 5052 and 6061 aluminum and stainless steel hardware | Constructed of premium 5052 and 6061 aluminum and stainless steel hardware |
| Construction Type | Bent & Machined Aluminum, Stainless Steel Hardware, Thermal Plastic, Nut/Bolt Assembly | Bent & Machined Aluminum, Stainless Steel Hardware, Thermal Plastic, Nut/Bolt Assembly | Bent & Machined Aluminum, Stainless Steel Hardware, Thermal Plastic, Nut/Bolt Assembly | Bent/Welded & Machined Aluminum, Stainless Steel Hardware. | Bent/Welded & Machined Aluminum, Stainless Steel Hardware/ Nut/Bolt Assembly |
| Anodizing | Type II and III anodizing on all uprights and machined parts | Type II anodizing on all uprights and machined parts | Type II anodizing on all uprights and machined parts | Type II anodizing on all machined parts | Type II anodizing on all uprights and machined parts |
| Shelf Coating | Durable texture black powder coat | Durable texture black powder coat | Durable texture black powder coat | Durable texture black powder coat | Durable texture black powder coat |
| Cable Hole | Cable Pass throughs located in spring-loaded latches. | Cable Pass throughs located in spring-loaded latches. | Cable Pass throughs located in spring-loaded latches. | Cable Pass throughs located on top surface. | Cable Pass throughs located on top surface. |
| Accessories | Over 50 Different Accessory Add-Ons | Over 50 Different Accessory Add-Ons | Over 50 Different Accessory Add-Ons | Over 50 Different Accessory Add-Ons | Over 50 Different Accessory Add-Ons |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
